Used GSSI SIR 4000 GPR Control Unit

$7500
In Stock

Used GSSI SIR 4000 GPR for Sale, barely used like new condition, ready to working condition, includes RADAN 7 Software License

Used GSSI SIR 4000 GPR Control Unit description

Used GSSI SIR 4000 GPR for Sale, barely used like new condition, ready to working condition

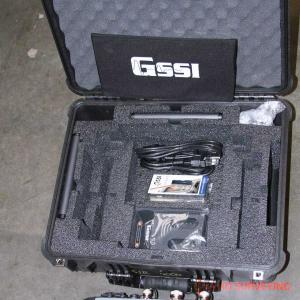

Sale used GSSI SIR 4000 includes:

  • GSSI SIR 4000 Digital Control Unit
  • 2x Lithium-ion batteries
  • Dual-bay battery charger
  • Transit case
  • Sunshade
  • USB Drive
  • Universal Mounting Bracket
  • Operation Manua
  • GSSI Manual CD
  • RADAN 7 Software License

GSSI SIR 4000, Rugged, High-Performance GPR Controller
The SIR 4000 is GSSI first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This evolutionary step allows for true versatility and flexibility by supporting a wide range of users across numerous applications.

Ground penetrating radar control Unit with in-built rugged display. The SIR-4000 is first high-performance GPR data acquisition system designed to operate with analog and digital antennas. This controller bridges the legacy of our traditional analog antennas with our next-generation of digital offerings. Combined, this allows true versatility and flexibility by supporting a wide range of users, beginner to advanced, in numerous applications. It offers unique collection modules, including Quick 3D, UtilityScan, StructureScan and Expert Mode for efficient data collection and visualization. It also incorporates advanced display methods and filtering capabilities for ‘in-the-field’ processing and imaging.

Fully integrated, the SIR 4000 provides a 10.4-inch high-definition LED display, a simple user interface, plug-and-play GPS integration and Wi-Fi-enabled data transfer functionality. The SIR 4000 is designed with a number of exclusive features, including a casted aluminum chassis that offers temperature stability and an impact-resistant design that combined, delivers a full IP 65 rated able to withstand tough jobsite conditions.

GSSI StructureScan Pro SIR-4000 typically used to Scan for rebar, post tension, conduits, and non-metallic objects, Concrete slab scanning, Locate voids, Concrete imaging, Condition assessment, Structural inspection

Accurate, reliable, and safe concrete imaging

The StructureScan Pro system provides a non-destructive means to accurately inspect concrete and concrete structures, measure slab thickness and locate voids.

  • Locate Targets in Concrete: The StructureScan Pro locates rebar, post tension cables, PVC and metal conduits, and voids.
  • Premium Mobility: The rugged handcart-based system is lightweight and simple to transport. GPR is a safe technology with no site hazards or the need to close off work areas as with radiography (X-Ray).
  • Fully Customizable System: The StructureScan Pro comes with two antenna options; 1600 MHz or 2600 MHz. Designed to fit your needs, the StructureScan Pro is adaptable to expand survey capabilities, such as bridge and utility applications, with antenna upgrades.
  • Real-time Locating: Data illustrates a concrete slab reinforced with wire mesh at varying depths and a conduit.
  • 3D Concrete Imaging: Data illustrates a concrete slab

GSSI StructureScan SIR-4000 Spesifications

  • System: SIR 4000
  • Antennas: Compatible with all GSSI antennas
  • Number of Channels: Records data from 1 single-frequency antenna or 1 dual-frequency antenna
  • Data Storage: 32 GB Flash, 1 GB RAM
  • Display: 10.4” LED
  • GPS: Data logged internally
  • Display Modes: Linescan, Full 3D
  • Environmental Rating: P64
  • Data Acquisition
    • Data Format: RADAN® (dzt)
    • Output Data Format: 32-bit
    • Scan Inverval: User-selectable, up to 4000 scans/sec
    • Number of samples per scan: 256, 512, 1024, 2048, 4096, 8192, 16384
    • Operatiing Modes: Continuous (time) or survey wheel (distance triggered) or point mode
    • Time Range: 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
    • Standard Real-Time Filters: Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal - Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal
    • Advanced Real-Time Filters: Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal
    • Automactics System Setups: Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations
    • Automatic Antenna Recognition: Automatic recognition of Smart Antennas to allow maximum compliant transmit rate
    • Languanges: English, Chinese, Japanese and French
  • Operating
    • Operating Temperature: -20°C to 40°C (-4°F to 104°F)
    • Batttery: Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness)
    • Transmit Rate: Up to 800 KHz (International) US/Canada and CE rates depend on antenna model
  • Input/Output
    • Available Ports: Analog and Digital, RS232, HDMI, Ethernet to PC, USB 2.0 port and mini USB
    • Ethernet: RJ45 100BT Ethernet
    • Usb Host: Usb host with external keyboard support, USB flash drive support and Usb hub support
  • Mechanical
    • Dimensions: 14x10x2.75 in (36x25x7 cm)
    • Weight: 10 lbs (4.53 kg) including battery
    • Relative Humidity: <95% non-condensing
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
