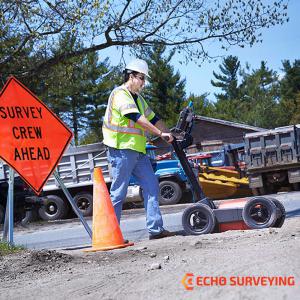

GSSI UtilityScan Pro GPR Industry

$24500
In Stock

GSSI UtilityScan Pro for sale, SIR 4000 Control Unit 400 MHz, 300/800 DF, or 350 HS Antenna, 3-wheel or 4-wheel cart, RADAN 7 License, 2 Year GSSI warranty

GSSI UtilityScan Pro GPR Industry description

GSSI UtilityScan Pro for sale, SIR 4000 Control Unit 400 MHz, 300/800 DF, or 350 HS Antenna, 3-wheel or 4-wheel cart, RADAN 7, 2 Year GSSI warranty

GSSI UtilityScan Pro sale includes:

  • SIR 4000 Control Unit
  • 400 MHz, 300/800 DF, or 350 HS Antenna
  • Choice of 3-wheel or 4-wheel cart
  • 2 m control cable
  • SIR 4000 sunshade
  • SIR 4000 AC/DC power supply
  • Lithium-ion battery (2)
  • Dual-bay battery charger
  • Transit case
  • 2-year warranty
  • RADAN 7 Software License

With UtilityScan Pro, users can quickly identify and mark the position and depth of metallic and non metallic objects; including utilities such as gas, communications and sewer lines as well as underground storage tanks and PVC pipes. Based on the SIR 4000 controller, the UtilityScan Pro provides GPR professional with solutions to any underground locating situation. Typically used for:

  • Underground utility detection
  • Environmental remediation
  • Damage prevention
  • Geological investigation
  • Archaeology
  • Forensics
  • Road inspection

GSSI UtilityScan Pro Technical Specifications

System SIR 4000
Antennas Compatible with all GSSI antennas
Number of Channels Records data from 1 single-frequency antenna or 1 dual-frequency antenna
Data Storage 32 GB Flash, 1 GB RAM
Display Enhanced 10.4” LED display with internal high brightness, Active matrix 1024 x 768 resolution and 32-bit color
GPS Data logged internally
Display Modes Linescan, Linescan plus O-scope, Wiggle trace Full 3D, 256 color bins are used to represent the amplitude and polarity of the signal
Environmental Rating IP65

Data Format RADAN® (dzt)
Output Data Format 32-bit
Scan Interval User-selectable, up to 4000 scans/sec
Number of Samples per Scan 256, 512, 1024, 2048, 4096, 8192, 16384
Operating Modes Continuous (time) or survey wheel (distance triggered) or point mode
Time Range 0-20,000 nanoseconds full scale, user-selectable Gain: manual adjustment from -42 to +126 dB Number of segments in gain curve is user-selectable from 1 to 8
Standard Real-Time Filters Infinite Impulse Response (IIR) - Low and High Pass, vertical and horizontal - Finite Impulse Response (FIR) - Low and High Pass, vertical and horizontal
Advanced Real-Time Filters Migration, Surface Position Tracking, Signal Noise Floor Tracking, Adaptive Background Removal
Automatic System Setups Storage of an unlimited number of system setup files for different survey conditions and/or antenna deployment configurations
Automatic Antenna Recognition Automatic recognition of Smart Antennas to allow maximum compliant transmit rate

Languages English, Chinese, Japanese, French
Operating Temperature -20°C to 40°C external (-4°F to 104°F)
Battery Inspired Energy Ni2040ED, 3 hour runtime (battery life dependent on level of display brightness)
Transmit Rate Up to 800 KHz (International) US/Canada and CE rates depend on antenna model

Input/Output
Available Ports Antenna inputs analog and digital (one at a time), DC power input, Serial RS232 (GPS port), Accessory connector, HDMI video output, Ethernet to PC, USB 2.0 port, mini USB
Ethernet RJ45 100BT Ethernet
USB Host USB host with external keyboard support, USB flash drive support and USB HUB support

Mechanical
Dimensions 14x10x2.75 in (36x25x7 cm)
Weight 10 lbs (4.53 kg) including battery
Relative Humidity <95% non-condensing
Storage Temperature -40°C to 60°C (-40°F to 140°F)
