Used GSSI StructureScan Mini XT GPR

$6000
In Stock

Used GSSI StructureScan Mini XT GPR for sale included RADAN 7 Software, 2300 MHz Palm XT Antenna, LineTrac XT. Fully serviced by authorized GSSI, ready to working for concrete inspection

Used GSSI StructureScan Mini XT GPR description

We are currently sale GSSI StructureScan Mini XT Ground Penetrating Radar (GPR) with the software RADAN 7 for StructureScan Mini and 2300 MHz Palm XT Antenna, LineTrac XT

This sale GSSI Mini XT been received a full serviced by authorize GSSI service, everything still in excellent good condition, ready to working for concrete inspection including locating rebar, conduits, post-tension cables and voids, and can be used to determine concrete slab thickness in real-time.

Includes in the box;

  • GSSI StructureScan Mini XT
  • RADAN 7 Software + License for StructureScan Mini
  • 2300 MHz Palm XT Antenna

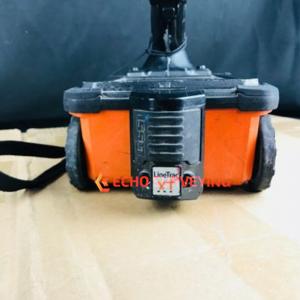

  • LineTrac XT
  • StructureScan Mini XT transit case
  • Two (2) rechargeable lithium ion batteries

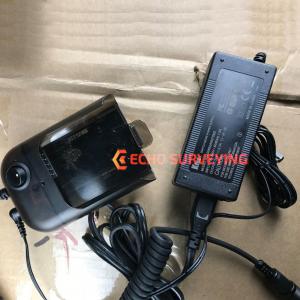

  • Dual bay battery charger with AC power adaptor and set of international plugs
  • Tool to remove the XTs handle
  • Safety wrist strap
  • Data collection grids (sample pack)
  • Quick Start Guide

GSSI STRUCTURESCAN MINI XT GPR
Tool Designed for Today's Professional Concrete Scanner

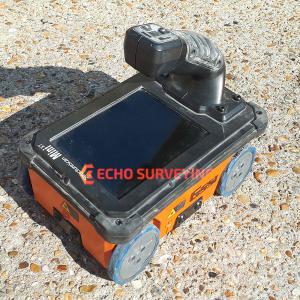

The GSSI StructureScan Mini XT is the newest generation of all-in-one GSSI ground penetrating radar systems, offers a 2.7 GHz antenna for superior target resolution and can reach depths up to 60.96 cm (24 inches). A complete GPR system for Concrete Inspection with multiple modes of operation, ideal for concrete inspection and evaluation. Easily and accurately locate the position and depth of metallic and non-metallic objects in concrete structures, including rebar, conduit, post-tension cables, pan decking, voids and service utilities.

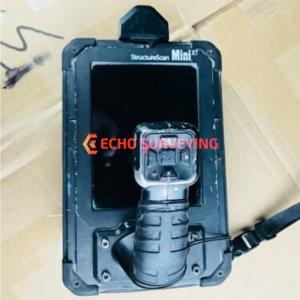

1 All-in-One handheld GPR system

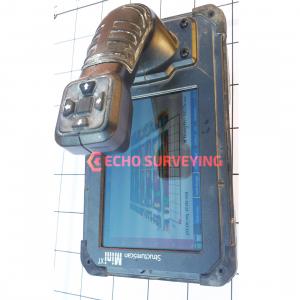

2 Ergonomic handle with six-button control
3 HD touchscreen display with easy to use operator interface
4 Survey wheel encoder
5 Guiding laser for locating and 3D surveying

Integrated Tool

  • All-in-one concrete inspection tool - antenna, positioning system and control unit
  • State-of-the-art touchscreen interface and six-button control for enhanced usability
Rugged, Compact Design
  • This new generation system is IP-65 rated to withstand the jobsite’s toughest conditions
System Flexibility
  • The StructureScan Mini XT will offer multiple accessories for various survey options and advanced data collection modes
Value
  • The perfect blend of price and performance, backed by a two-year warranty



GSSI STRUCTURESCAN MINI XT FEATURES

The StructureScan Mini XT is ideal for locating the position and depth of metallic and non-metallic objects in concrete structures, including rebar, conduit, post-tension cables, voids and service utilities. In addition, the Mini XT can help identify structural elements including pan deck, concrete cover and slab thickness

High Frequency, High Resolution Concrete Antenna: The StructureScan Mini XT employs a new 2.7 GHz antenna positioned 8 mm off the surface, providing additional ground clearance which allows the antenna to be used over rough concrete surfaces. This antenna provides excellent near surface resolution while also maintaining the ability to resolve deeper targets.

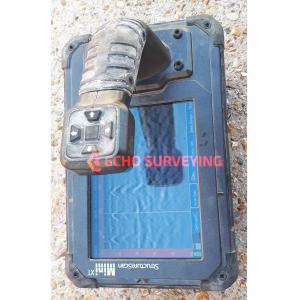

Enhanced Data Visualization:  Get first-in-class data visualization with a state-of-the-art 6.5 inch HD touchscreen user interface and different operation modes designed for beginner to advanced use.

  • Use QuickScan to collect data with the push of one button, or select any of the app-based data collection options including ScanMax and Scan3D for advanced data interpretation.
  • The StructureScan Mini XT makes it easy to customize the data display with a variety of color adjustments. Real-time migrated data, onscreen reference markers and real-time signal floor indicator are also available.

Forward Thinking Design: Incorporated into the design are three accessory ports that allow for future expansion. The extension pole accessory, with six-button remote operation, is ideal for walking and wall surveys

Typical Uses

  • Concrete inspection – locate metallic and non-metallic targets in walls, floors and ceilings
  • Structure inspection – bridges, monuments, walls, towers, tunnels, balconies, garages, decks
  • Condition assessment – map relative concrete condition for rehab planning
  • Measure slab thickness
  • Void location

STRUCTURESCAN XT DATA MODES
The StructureScan Mini XT features three data collection modes; Simple, Standard, and Advanced.

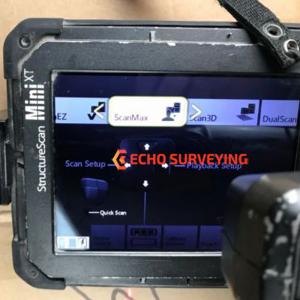

Simple mode is perfect for quick data collection - simply select the depth of survey and concrete type, and start scanning. Standard mode offers two apps, Scan3D and ScanMax. Advanced Mode offers XScan and DualScan apps for expanded data interpretation

2D Data Collection
The StructureScan Mini XT provides intuitive data visualization and includes multiple color themes, save image functionality and real-time display adjustments.

Data illustrates several metallic targets at various depths collected in Standard mode using the ScanMax application. Red dots and crosshair identify user marked targets

3D Data Collection
The StructureScan Mini XT provides intuitive data visualization and includes multiple color themes, save image functionality and real-time display adjustments

Survey of a standard 2 x 2 grid. Data illustrates two metallic targets at varying depths, with one target crossing the other in a 45 degree angle.




Palm XT Antenna

Palm XT is a small form factor GPR antenna that gives users unprecedented access in tightly spaced areas and enables easy overhead scanning.

  • 2300 MHz antenna offers superior depth penetration and resolution
  • Full keypad control via the antenna top provides remote control of user interface
  • Three data collection modes

LineTrac XT

LineTrac XT adds the ability to detect AC power and induced RF present in conduits. This accessory detects low amplitude AC signals associated with difficult to locate conduits.

  • Seamless fusion with GPR data
  • Aids in target discrimination
  • Detection at 50/60 Hz
  • Rugged, IP-65 rated enclosure

STRUCTURESCAN MINI XT SPECIFICATIONS

CONTROLLER
Unit Type Self-contained all-in-one GPR system
Measuring Type Electromagnetic Ground Penetrating Radar
Antenna Frequency 2,700 MHz Center Frequency (~1.1 to ~ 3.1 MHz)
Operational Modes QuickScan, ScanMax with Focus Mode, Scan3D, DualScan
Pulse Repetition Frequency 700 KHz (400 KHz FCC compliant version)
Scan Interval Normal Density: 4 scans/cm (10 scans/in)
High Density: 8 scans/cm (20 scans/in)
Depth Ranges 20, 30, 40, 50, 60 cm (8, 12, 16, 20, 24 inches)
Maximum Scanning Speed 50-60 cm/sec (19.5-23.5 in/sec)
Maximum Scan Distance Unlimited, based on available internal storage
Horizontal Measurement (Precision) 1.2 mm (0.05 in)
Typical Vertical Measurement (Precision) 0.5 mm (0.02 in)
Data Processing Depth Calibration, Auto Targeting and Auto Depth in Playback Mode
Gain Mode Automatic
Dielectric Range 4 to 12 (selectable in steps of 0.1)
Languages English, Spanish, Japanese, Korean, Chinese, French
Data Format GSSI RADAN .dzt
Monitor 165mm (6.5 in) LED backlit LCD touchscreen display
Storage 14.5 GB (internal)
Control Functions Mode dependent. During data collection includes battery life, distance, remaining storage capacity and cursor control

ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
IP Rating
Power
Dimensions
Weight
