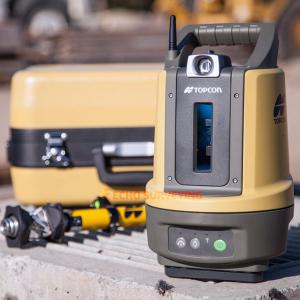

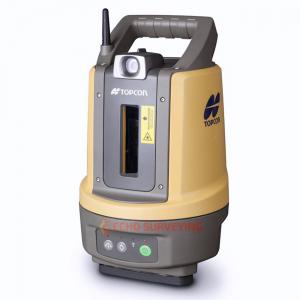

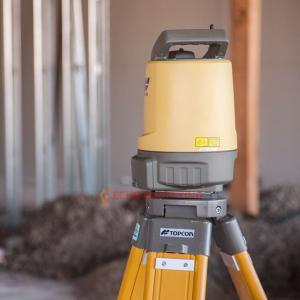

Topcon LN-100W Layout Navigator


In Stock

Topcon LN-100W sale, Layout Navigator with Wifi and Bluetooth Kit, sale including FC-5000 MAGNET Field + Robotics, new 2 Year Topcon Warranty

Topcon LN-100W sale, Layout Navigator with Wifi and Bluetooth Kit, sale including FC-5000 Data Collector, new 2 Year Topcon Warranty

Topcon LN-100W sale includes;

  • LN-100 W Layout Station, 2x batteries, dual charger with plug and carry case
  • Easycare – Robotic Total Station Support (1 year)
  • FC-5000 Logger
  • MAGNET Field + Robotics
  • FC-5000 Cradle
  • Topcon Robotic Pole
  • Tripod
  • 360 Prism

The Topcon LN-100W is an easy-to-use tool dedicated to layout.  Whether it is used on in the building, on the deck, for concrete, or basic layout for construction the Layout Navigator makes set-up easy.  Just press the power button and the LN-100 self-levels. Fire-up the hand-held, touch-screen controller and you are ready to go to work.It utilizes Topcon’s time-proven laser and robotic total station technologies to create a totally new tool that’s easy to use, without sacrificing the accuracy and versatility that construction layout demand.

The W model also incorporates Bluetooth communication. It can communicate via Bluetooth or WiFi instead of WiFi alone like the previous LN. Using Bluetooth communication is much more stable where many WiFi signals would interfere. This Topcon LN-100W package comes with an FC-5000 Data Collector


  • Accuracy: 5 arc seconds +/- 1.5 mm at 50m (1/8 in. at 164 ft.)
  • Guide Light: Range: ~100m  V : ±12°, H : 8°
  • Communications
    • Wi-Fi Wireless 802.11n/b/g
    • Bluetooth Class 1 (LN-100W)
    • Dust/Water Protection: IP65
  • Dimensions 185 x 196 x 295mm
  • Weight* ~ 4kg (8.8 lbs.)
  • EDM Range: 328 ft (100 m)
  • Auto Levelling: Self-Level + 3°
  • Plummet: Integrated Laser Plummet
  • Hi Alert: Alerts user if disturbed
  • Posotioning Accuracy: + 3 mm
  • Battery: 5 hours from 1 battery in typical working conditions
