Used Prodim Proliner 8CS 2D/3D Digital Measuring System for Sale. Certified with warranty and calibration report. Ready to measuring and digital templating of stone, glass, marine, wood, and metal fabrication
This pre-owned Prodim Proliner 8CS 2D/3D Digital Measuring System delivers outstanding accuracy and portability, an excellent investment for fabricators and contractors who need precision at a lower cost. Lower capital cost compared to new units, Reliable performance with minimal calibration drift, Compatible with Prodim Factory & Proliner Generation X software, Ideal for stone, glass, and yacht decking industries.
The Prodim Proliner 8CS 2D/3D System is one of the most advanced and reliable digital measuring tools in today fabrication industry. Developed by Prodim (Professional Dimensioning Systems), it offers professionals in the stone, glass, marine, woodworking, and metal sectors a powerful way to measure, design, and manufacture with exceptional accuracy.

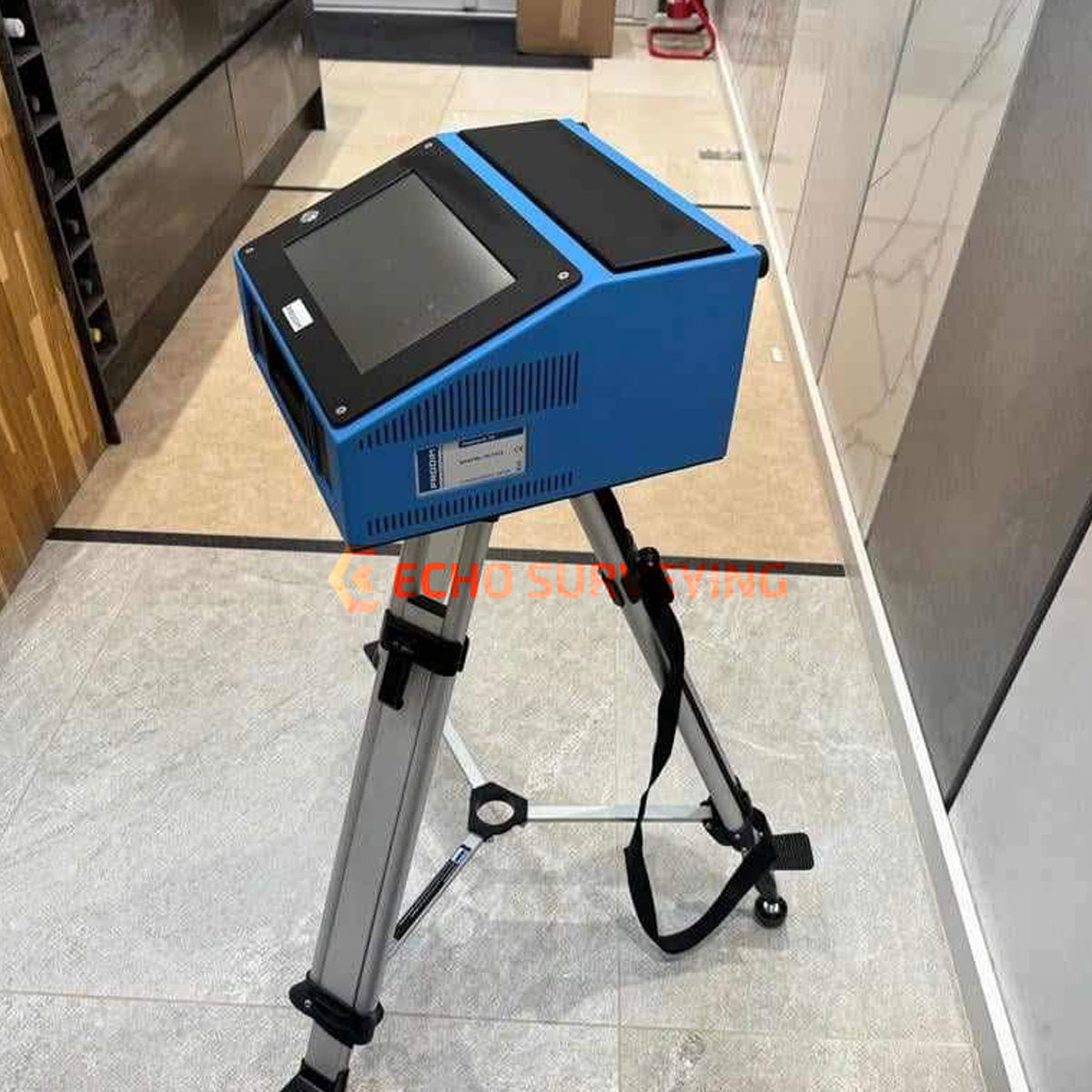

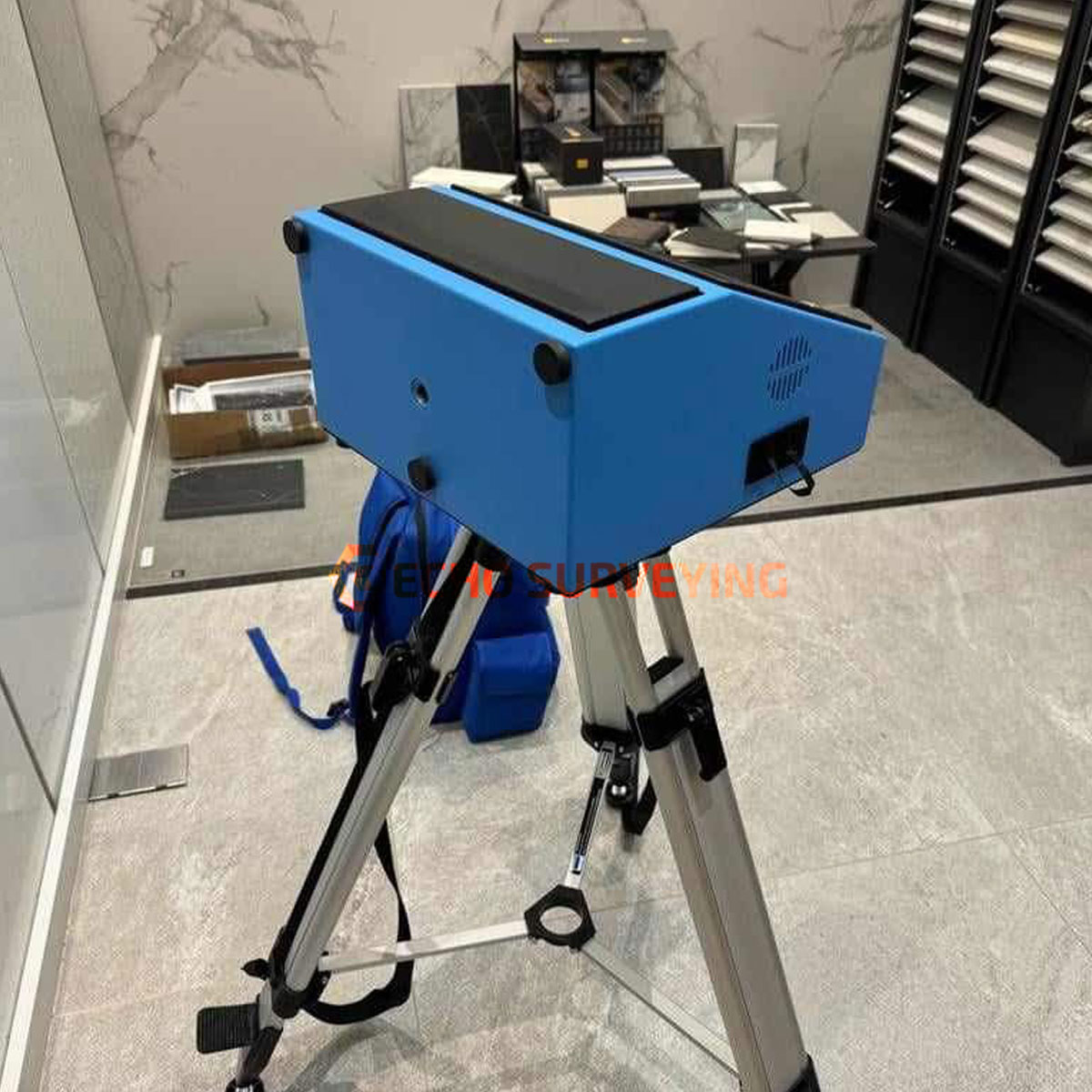

Unlike laser or photo-based systems, the Proliner 8CS uses Prodim’s patented wire-based measuring technology to capture both 2D and 3D shapes directly from real-world surfaces. This ensures high precision even in challenging lighting or reflective environments where lasers often fail. The 8CS belongs to Prodim’s Construct Series (CS) — designed for portability, durability, and ease of use on-site. The device combines a robust mechanical structure with a modern touchscreen interface, allowing users to create digital templates in minutes.
The Proliner 8CS belongs to the Construct Series (CS), a compact and user-friendly digital measuring system. It provides both 2D and 3D measurement capabilities, allowing professionals to capture complex templates directly on site and transfer them digitally for CAD/CAM processing.

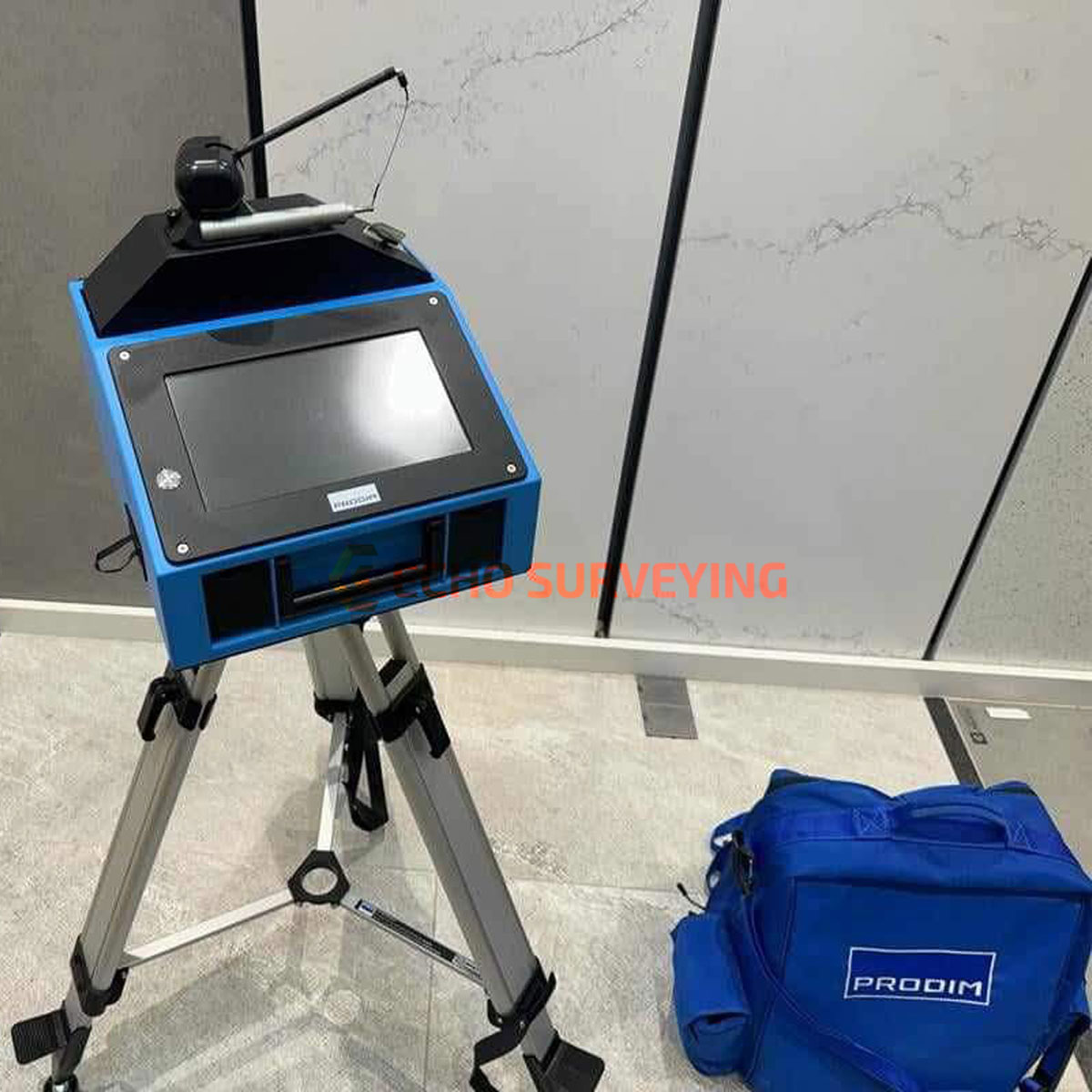

The system uses a retractable measuring wire with a pen stylus. As the user moves the pen along surfaces, edges, or points, the Proliner records precise coordinates in real time. This mechanical measurement method eliminates problems caused by reflections, transparent materials, or irregular lighting — making it ideal for glass, marble, and composite surfaces.
The built-in software instantly displays the measured shape, which can be edited, adjusted, or exported to CAD for production.
The Proliner 8CS is widely used across multiple industries where accuracy and speed are critical:
Regular calibration ensures consistent accuracy over time. Prodim provides certified calibration services and software updates through its authorized partners worldwide. With proper care, the 8CS can remain fully operational for up to 10 years or more.
| Feature | Specification |
|---|---|
| Measuring Range | Up to 14 m diameter (≈ 7 m wire length) |
| Accuracy | ± 0.6 mm at 5 m distance |

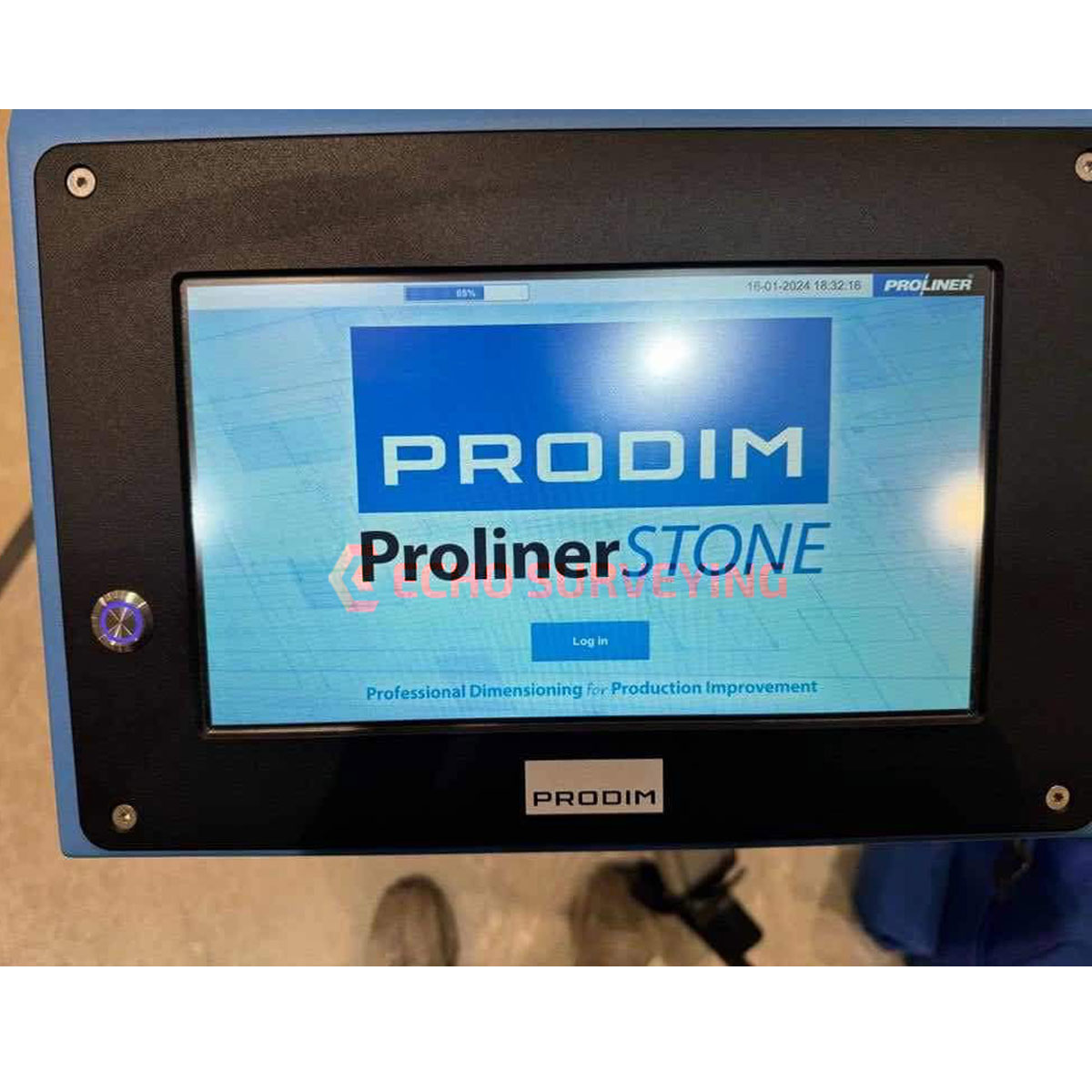

| Display Size | 10-inch color touchscreen |
| Weight | Approximately 10 kg |
| Dimensions | 38 × 32 × 18 cm |
| Connectivity | USB and Ethernet (Bluetooth optional) |
| Power Supply | Rechargeable Li-ion battery / AC adapter |
| File Formats | DXF, CSV, Prodim Proliner native format |
| Software | Prodim Factory / Generation X compatible |
| Specification | Proliner 8CS | Proliner V9 |
|---|---|---|
| Measuring Range | 14 m diameter | 18 m diameter |
| Accuracy | ± 0.6 mm | ± 0.4 mm |
| Display | 10″ LCD | 10″ Sunlight-Readable HD |
| Connectivity | USB, Ethernet | Wi-Fi, Cloud Sync, OTA updates |
| Release Year | 2018 | 2025 |
While the Proliner V9 offers newer connectivity and range, the 8CS remains a top choice for professionals needing proven reliability at a more accessible price point.
