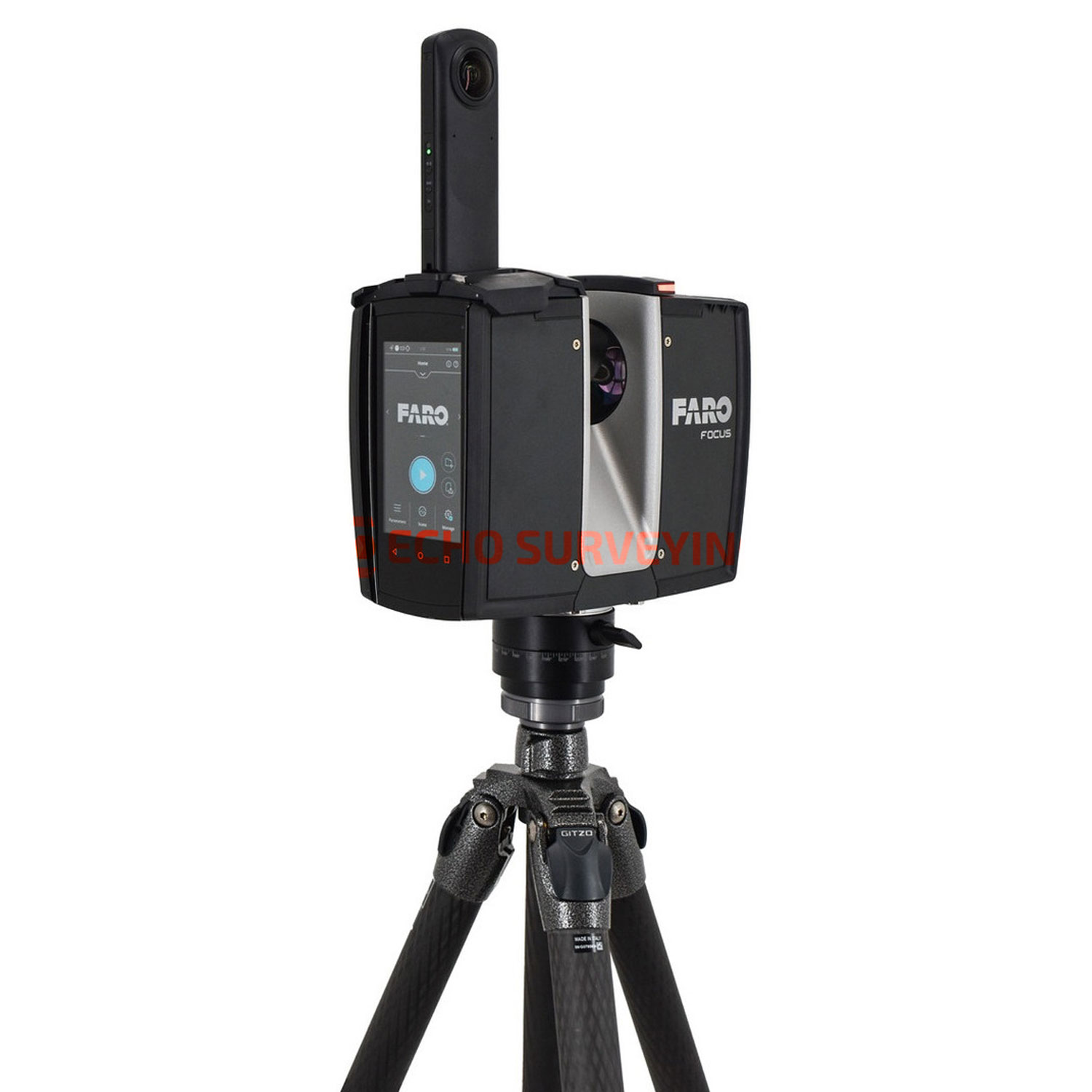

FARO Focus Premium 70 Laser Scanner for sale with FARO SCENE and Tripod, with 70m scan ranges and up to 50% faster scan speed reduces onsite scanning time, while faster loading and system response yields greater data management efficiency. FARO Focus Premium Scanners have super-high color resolution and integrated high-speed SSD data storage for maximum scan capacity. Take advantage of on-site registration and real-time processing with FARO SCENE software. Pair with the FARO Stream App for remote control capability and upload to FARO Sphere for storage and sharing.
Package includes;
- FARO Focus Premium 70 Laser Scanner
- Power dock battery charger, Power supply unit, Power block battery (ACCS-PWR-0014), AC power cable
- FARO SCENE software
- Tripod
- Mirror cleaning liquid for optics
- SD card reader (An SD card is already inserted in the scanner)
- 4mm hex key
- Quick release
- Quick Start Guide and Safety ManuaL
- Scanner transport and carrying case
- 2-Year FARO warrany
FARO Focus Premium Laser Scanner capturing the measurements of a large building, facility, or crash/crime scene with conventional documentation can take days or weeks, and even then, the data might be incomplete. But the FARO Focus Premium and FARO Focus Core create accurate, photorealistic 3D representations of any environment or object in just a few minutes – even in the most extreme outdoors conditions.
For best on-site data capture, Focus Premium connects with the new FARO Stream app, bridging FARO hardware to the FARO Sphere cloud environment. Pre-registration scans are fed directly into the cloud, so jobs can be done more efficiently. Users can also benefit from Hybrid Reality Capture, powered by Flash Technology. The new scan mode for the FARO Focus Premium Laser Scanner is available as an add-on subscription that combines the accuracy of a 3D scan with the speed of a panoramic camera – enabling fast scans in under 30 seconds with colorized 360° images that save up to 50% scanning time.
BUSINESS VALUE OF FOCUS LASER SCANNERS
- Never Miss a Measurement: The comprehensive, fast, accurate capturing of everything within the Focus Premium’s Laser Scanner’s line of sight ensures that you never have to go back to a site for missing measurements. Pre-registering and viewing your 3D scan data on-site provides the confidence your teams need to know they are done with the job.
- Reduce Rework and Material Waste: Knowing the as-built conditions of your project ensures your designs fit the first time. And monitoring construction progress regularly and frequently in 3D helps you identify issues before they become costly and delay your schedule.
- Manage Large and Complex Projects with Confidence: In combination with FARO software solutions and WebShare (as part of Sphere) for easy 3D data sharing, you will always know what’s happening with your projects.
- Make Informed Decisions: With the information at your team’s fingertips, they’ll be equipped to make smarter decisions faster and stay ahead of any problems.
- Adapt As Needed: With its unique expandability, a FARO Focus Laser Scanner grows with your needs. The integrated accessory bay allows you to add new sensors or indicators to your device. And the FARO Swift extension allows you to turn your Focus into a super-fast mobile scanning system for large indoor projects.
- End the Speed-Accuracy Tradeoff: For too long those in the precision measurement industry have had to contend with the speed-accuracy tradeoff. The faster scans were taken, the greater their point cloud accuracy diminished. Slow down speed in favor of accuracy and critical time — and potential business — was lost. With Hybrid Reality Capture, Powered by Flash Technology the speed-accuracy tradeoff (SAT) has essentially been solved. By employing this technology users can anticipate up to 50% scan times savings and a reduction in per-project costs.
- Scan large-scale projects with Ease: Thanks to the enhanced scanning speed that Flash Technology enables, large-volume projects for Architecture, Engineering, and Construction and public safety on-scene applications has never been easier, providing scans in less than 30 seconds. And thanks to proprietary smart upscaling algorithms, full-color scans look more crisp than the same resolution scans with traditional methods.
- Scan more in less time: With Flash, users can save up to 2.5 days of scanning for projects that require five scanning days. This saved time allows users to consider taking additional scans that they might not have taken under slower scanning systems, ensuring improved on-site productivity, even more predictable accuracy, and all of that achieved with state-of-the-art colorized visual clarity at an affordable price
FARO FOCUS PREMIUM PERFORMANCE
- Super-High Color Resolution: The latest color technology enables the Focus Premium to capture scans with up to 266 megapixel color information.
- Two-Year warranty: Competitive service means maximizing the life of this product while reducing the total cost of ownership throughout the device’s lifespan. Two years allows for maximum flexibility and the piece of mind knowing that any repairs or defective parts will be replaced.
- Software Compatibility: Process your Focus Laser Scanner point cloud data with any software tool that fits your workflow, including FARO software solutions and third-party software such as Autodesk® ReCap.
- Multiple Point Clouds, Multiple Devices: The new Focus is also designed to work seamlessly with the FARO Freestyle 2 Handheld Scanner, thanks to its “Snap-In” feature. Save the time that is required for multiple scanner positions when it comes to scanning complex environments/structures, equipment or tight spaces. Snap-in enables the user to seamlessly add data starting from a Focus point cloud by using it as a reference for missing data from such hard-to-scan locations, including areas in shadow and objects with irregular geometries.
- Up to 50% faster scan times: With the Flash Technology add-on and required PanoCam, a typical scan takes less than 30 seconds and can save up to 2.5 days of scanning for projects that require five scanning days.
- PanoCam and Scanner Combo for Peak Performance: Flash Technology is a revolution in how large-volume projects will be scanned, both for architecture and engineering and public safety applications. Now, there is no longer a need to sacrifice speed for accuracy and accuracy for speed. It is a best-of-both-world’s innovation that will improve on-site productivity and ensure predictable accuracy on each and every project or forensic investigation
FARO FOCUS CORE PERFORMANCE
- Best price-performance standard on the market: Focus Core broadens the Focus scanners’ range of potential applications. Fully integrated into FARO’s workflow solutions for application-specific insights, the scanner serves key markets in construction, building operations, and public safety.
- Ideal for low profile projects: Business-savvy entry point into 3D reality capture, with best-in-class price-performance ratio featuring a wide range of professional applications in construction, public safety and building operations
- Optional subscription to the FARO Stream mobile app: Core users will benefit from real-time on-site pre-registration, enabling faster project completion and reducing multiple trips to the jobsite for additional scans
- Exceptional capturing efficiency: Enjoy scan speeds up to one minute per scan and faster loading/system response. Greater data management efficiency when paired with Stream and uploaded to Sphere.
- Remote access global collaboration: 70-meter scanning range, smartphone-enabled remote control capabilities, and improved wireless workflow with faster Wi-Fi operation
FARO FOCUS PREMIUM AND CORE FEATURES
- Up to 350m scanning range, leading to superior area coverage per scan position
- Smartphone-enabled remote control capabilities, limited only by the range of a Wi-Fi network
- Improved wireless workflow with more stable and faster Wi-Fi operation
- On-site registration, the process of combining multiple scans using common overlap, means faster project completion and real-time awareness of scan errors or missing data
- Seamless connectivity with Stream and Sphere
- Scanner control can be executed on either the app or on the actual Focus
- Users have easy access to create projects, change scanner settings, manage image resolution, opt for color or black and white scans, group scans through clustering, and add annotations
- Rugged construction and housing can withstand the tough day-to-day work
- integrated high-speed SSD data storage for maximum scan capacity and lighting fast scan processing
- Flash Technology enabled (for Focus Premium) for fastest scans with greatest accuracy featuring colorized clarity at an affordable price.
- Hybrid Reality Capture scan mode a subscription option through the FARO Stream App, accessible through Sphere.
- Proprietary smart upscaling algorithms (for Flash Technology) ideal for large-volume scans.
APPLICATIONS
ARCHITECTURE, ENGINEERING AND CONSTRUCTION (AEC) APPLICATIONS
- Fast, Accurate As-built Capture and Modeling: Use Focus Laser Scanners to capture as-built data for building information modeling (BIM), industrial facility management and infrastructure projects. The accurate, complete data creates a strong foundation for conversions, extensions, space optimization, structural analysis and maintenance. See all as-built capture and modeling applications
- Improved Construction Quality Control: Ensure the highest quality of your construction projects with Focus Laser Scanners. Precise laser scanning throughout the building process ensures that the final structure fits design intent, minimizing risk of deformations and other problems. Also perform large-volume calculations and inspect free-form shape elements and facade components with ease. The scan data is invaluable for project supervision and collaboration across trades. See all construction quality control applications
- Historic Preservation: Use the scanners to create 3D models of historical sites and archeological objects for reconstruction, restoration and conservation. See all historic preservation applications
- Digital Twin for Asset and Facility Management: A key component of a smart factory is its digital twin — a comprehensive 3D digital copy of the facility. Use the Focus Laser Scanners to capture the as-built data you need for asset and facility management. See all digital twin applications
PUBLIC SAFETY ANALYTICS APPLICATIONS
3D METROLOGY APPLICATIONS
- Enhanced Product Design and Engineering: Use Focus Laser Scanners to enhance the accuracy and speed of your design and engineering processes. When a product has no CAD data, simply scan it to get all the measurements you need for reverse engineering. And when manufacturing fixtures and fittings for ships, cars or aircraft, scan the complex interiors as your basis for planning conversions. See all product design and engineering applications
- More Efficient Production, Fabrication and Assembly: Rely on Focus Laser Scanners to keep production moving efficiently. You can scan complex machine components for manufacturing documentation, or use the resulting 3D CAD data and dimensional control for precise-fit off-site assembly as needed. See all production, fabrication and assembly applications
- Improved Quality Control and Inspection: Use Focus Laser Scanners for precise 3D documentation and dimensional inspection of large, complex components such as rotor blades, turbines and ship propellers. See quality control and inspection applications
FARO FOCUS PREMIUM TECHNICAL SPECIFICATIONS
| PERFORMANCE SPECIFICATIONS |
| Range Option |
FARO Focus Premium 350 |
FARO Focus Premium 150 |
FARO Focus Premium 70 |
| Unambiguity Interval |
614 m for up to 0.5 MPts/sec
307 m at 1 MPts/sec
153 m at 2 MPts/sec |
614 m for up to 0.5 MPts/sec
307 m at 1 MPts/sec
153 m at 2 MPts/sec |
614 m for up to 0.5 MPts/sec
307 m at 1 MPts/sec
153 m at 2 MPts/sec |
| Range |
| White, 90% Reflectivity |
0.5 – 350 m |
0.5 – 150 m |
0.5 – 70 m |
| Dark-grey, 10% Reflectivity |
0.5 – 150 m |
0.5 – 150 m |
0.5 – 70 m |
| Black, 2% Reflectivity |
0.5 – 50 m |
0.5 – 50 m |
0.5 – 50 m |
| Range Noise |
| White, 90% Reflectivity |
0.1 mm @ 10 m, 0.2 mm @ 25 m |
| Dark-grey, 10% Reflectivity |
0.3 mm @ 10 m, 0.4 mm @ 25 m |
| Black, 2% Reflectivity |
0.7 mm @ 10 m, 1.2 mm @ 25 m |
| Max Speed |
Up to 2 MPts/sec |
| 3D Accuracy3 |
2 mm @ 10 m, 3.5 mm @ 25 m |
| Ranging Erro |
±1 mm |
| Angular Accuracy5 |
19 arcsec |
| LaserHDR |
Yes |
| Temperature Range |
Operating: +5 ° to +40 °C, Extended Operating: -10 ° to +55 °C, Storage: -10 ° to +60 °C |
| |
|
|
|
| ADDITIONAL PERFORMANCE SPECIFICATIONS |
| Color Unit |
| Color Resolution |
Up to 266 MPx color |
| Raw Color Resolution |
867 MPx |
| HDR Camera |
13 MPx - 2x, 3x, 5x brackets |
| Parallax |
Minimized due to co-axial design |
| Deflection Unit |
| Field of View |
300° vertical8 / 360° horizontal |
| Step Size |
0.009° (40,960 Pts on 360°) vertical / 0.009° (40,960 Pts on 360°) horizontal |
| Max. Scan Speed |
97 Hz (vertical) |
| Laser (Optical Transmitter) |
| Laser Class |
Laser Class 1 |
| Wavelength |
1553.5 nm |
| Beam Divergence |
0.3 mrad (1/e) |
| Beam Diameter at Exit |
2.12 mm (1/e |
| Data Handling and Control |
| Data Storage |
SATA 3.0 SSD 128 GB and SDXC V30 64 GB SD Card; SD3.0, UHS-I / SDXC / SDHC, max. 512 GB |
| Scanner Control |
Via touch screen display and WLAN connection, Control by FARO Stream App (iOS & Android) or mobile devices with HTML5 |
| Interface Connection |
| WLAN |
IEEE 802.11 ac/a/b/g/n 2x2 MIMO, as access point or client in existing networks (2.4 and 5 GHz |
| USB |
USB 3 port |
| ADDITIONAL FEATURES |
| Dual Axis Compensator |
Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2° |
| Height Sensor |
Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan |
| Compass |
The electronic compass gives the scan an orientation |
| GNSS |
Integrated GPS & GLONASS |
| On-Site Compensation |
Creates current quality report and improves compensation automatically |
| Accessory Bay |
The accessory bay connects versatile accessories to the scanner |
| Inverse Mounting |
Yes |
| Real-time, On-site Registration |
Stream App real-time scan streaming, registration, overview map and Sphere cloud upload |
| Electronic Automation Interface |
Available as option, only at point of sale |
| Digital Hash Function |
Scans are cryptographically hashed and signed by the scanner |
| Rescanning of Distant Targets |
Defined areas recaptured in higher resolution at a greater distance |
| Retake Photos |
Select individual photographs with unwanted objects and retake them |
| GENERAL SPECIFICATIONS |
| Power Supply |
19 V (external supply), 14.4 V (internal battery |
| Typical Power Consumption |
19 W idle, 32 W scanning, 72 W charging |
| Typical Battery Operation Time |
About 4 hours |
| Typical Scan Time from start until the scanner can be moved |
Gray scale < 1 min | HDR Colored < 1:15 | Colored Flash Scan < 30 seconds |
| Ingress Protection (IP) Rating Class |
54 |
| Humidity |
Non-condensing |
| Weight |
4.4 kg (including battery) |
| Size/Dimensions |
230 x 183 x 103 mm |
| Calibration |
Recommended annually |
| Manufacturer Warranty |
2 year |
