FARO Vantage Laser Tracker

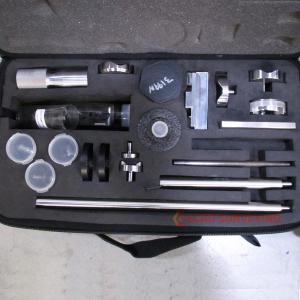

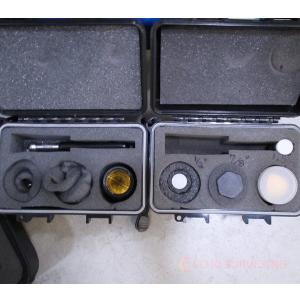

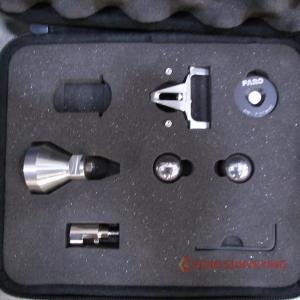

Used FARO Vantage Laser Tracker for sale, comes with target tooling kit, FARO TrackArm Kit and SMR targets. Fresh Calibration Certificate will provided and + 1 year manufacturer warranty extension.

FARO Vantage TruADM Tracker IP52 Instrument Head with Precision Level and Integrated Weather Station, Master Control Unit, Cable Kit with 3m Communication and Remote Air Temp Sensor Cables. The PolyWorks V12 Software, CAM2 Measurement software and Spatial Analyzer with licensed included

FARO Laser Tracker Vantage

FARO Vantage provides the world's most complete laser tracking solution, It is an extremely accurate, portable coordinate measuring machine that enables you to build products, optimize processes, and deliver solutions by measuring quickly, simply and precisely. Replacing conventional tools such as piano wire, plumb bobs, layout machines, large-volume fixed CMMs, theodolites, optical transits, and total stations, the Vantage is a more accurate and reliable portable 3D measurement tool that allows you to streamline your processes and be confident in your measurement results.

The FARO Vantage creates ground-breaking efficiencies in applications such as alignment, machine installation, component inspection, tool building and setup, manufacturing and assembly integration, and reverse engineering. Companies are saving millions of dollars by completing jobs faster, reducing downtime, eliminating costly scrap, and getting accurate, consistent, and reportable measurement data. With the Vantage you can produce more competitive products, accelerate product improvement initiatives, and deliver high-performing products for today’s technical marketplace.As the world’s most trusted source for 3D measurement technology, FARO has reinvented high accuracy, large volume measurement with the Vantage. Offering a breakthrough in laser tracker technology, the FARO Vantage provides the world’s most complete laser tracking solutions

How the FARO Vantage works

The operation of the Laser Tracker is easy to understand - it measures two angles and a distance. First, the Tracker sends a laser beam to a retroreflective target held against the object to be measured. Light is then reflected off the target and retraces its path, re-en-tering the Tracker at the same position it left. As light re-enters the Tracker, two angle encoders measure the elevation and rotational angles while a highly accurate absolute distance meter is used to determine the 3D position of the retroreflector

Features of the FARO Vantage

• Compact Size: The smallest and lightest FARO Laser Tracker ever built is incredibly easy to use and transport between job sites.
• Water and Dust Resistant IP52 Rating: The Vantage can be used in demanding industrial conditions
• New Carrying Cases: An innovative travel case system takes the concept of “portability” to a whole new level.
• SmartFind: Quickly and efficiently locates and locks on to the correct target.
• MultiView Cameras: This patent pending integrated two-camera system can automatically point to a specific target, and quickly and efficiently locate a target when the target is not in its normal position.
• TruADM: Patented 5th generation ADM system provides the accuracy needed for everyday, real-world applications.
• Integrated Wi-Fi: Simply measure anywhere within the wireless network’s range with no need to plug into a laptop computer for enhanced portability and convenience.
• QuickComp: Optimizes measurements based on specific ranges to maintain high system accuracy.
• TriMap Encoders: Three read head system that is self-mapping; enables faster service time in more convenient locations.
• In-Line Optics: Designed for longer range; allow for measurement of even larger objects from one location

Benefits to the end user

• Lightweight design and innovative packaging make it easy to set up and transport
• Longer range for easy measurement of large objects
• SmartFind target detection speeds up measurement jobs
• Enhanced durability due to water and dust resistant IP52 rating

Benefits to the company

• High accuracy gives you dependable results to remain competitive
• Eliminate rework, which can cost more than the entire measurement system
• Solve everyday measurement challenges as well as complex problems that weren’t previously possible

Most Common Applications

• Alignment: Real-time measurement confirms tolerances and validates design
• Installation: Reduce wear and tear on mechanical parts
• Part Inspection: Digital record of actual vs nominal data
• Tool Building: Full volumetric accuracy tests
• Reverse Engineering: Acquire high accuracy digital scan data
• Robotic & Machine Guidance: Automation simplifies complex drilling and prob-ing applications

FARO Vantage Laser Tracker System Spesiications

Dimensions
Head size: (w x h):	224mm x 416mm
Head weight:	12.6kg
Controller size (l x d x h):	290 x 158 x 214mm without filters 316 x 158 x 214mm with filters
Controller weight:	4.8kg
Range
Horizontal envelope:	360° - Infinite rotation
Vertical envelope:	130° (+77.9° to -52.1°)
Minimum working range:	0m
Maximum working range:	80m* with selected targets & 10°C and 35°C temperature range 60m with standard 1.5” & 7/8” SMRs 30m with standard 1/2” SMR
Environmental
Altitude:	-700m to 2,450m
Humidity:	0 to 95% non-condensing
Operating temperature:	-15°C to 50°C
Distance Measurement Performance***
TruADM
Resolution:	0.5μm
Sample rate:	10,000 points/sec
Accuracy (MPE):	16μm + 0.8μm/m
R0 Parameter (MPE):	16μm
Angle Measurement Performance***
Angular accuracy (MPE):	20μm + 5μm/m
Maximum angular velocity:	180°/sec
Precision level accuracy:	±2 arcseconds
MultiView Cameras
Field of view:	30°
Laser Emission	633-635nm Laser, 1 milliwatt max/cw. Class II Laser Product



Point-to-Point MPE Accuracy***
Horizontal Scale Bar Measurement				In-Line Distance Measurement
Range (m)	ADM (mm)			Length (m)	Distance (m)	ADM (m)
2	0.044			2 – 5	3	0.018
5	0.064			2 – 10	8	0.022
10	0.098			2 – 20	18	0.030
20	0.170			2 – 30	28	0.038
30	0.240			2 – 40	38	0.046
40	0.312			2 – 50	48	0.054
50	0.382			2 – 60	58	0.062
60	0.452			2 – 70	68	0.070
70	0.524			2 – 80*	78	0.078
80*	0.594

* With selected targets.
** Product complies with radiation performance standards under the food, drug, and cosmetics act and international standard IEC60825-1 2001-08.
*** MPE and all accuracy specifications are calculated per ASME B89.4.19 - 2006. Variation in air temperature is not included. Specifications, descriptions, and technical data
may be subject to change

Downloads

FARO Laser Tracker Vantage Tech Specs
