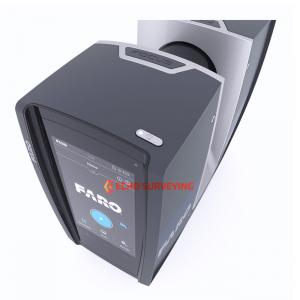

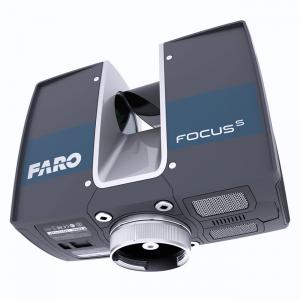

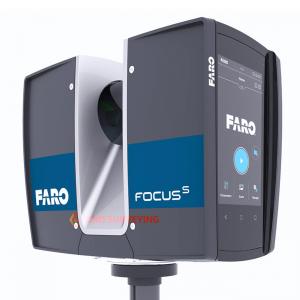

Faro Focus S70 Laser Scanner

$24500

In Stock

New FARO Focus S70 for sale, 1-Year Faro warranty, including Faro SCENE software licence, standard accessories and tripod

Faro Focus S70 Laser Scanner description

New FARO Focus S70 for sale, 1-Year Faro warranty, including Faro SCENE software licence, standard accessories and tripod

Faro Focus S 70 sale includes:

FARO Focus S-70 with HDR photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, IP rating 54, Calibration Certificate, Quick Start Guide, User's manual, Rugged Transport Case
Battery Power Block, Battery Power Dock, 90W Power Supply
Optic Cleaning Fluid, Optic Cleaning Tissues
32GB SD Card, SD Card Reader, SD Card Cover
Allen Wrench
USB stick with SCENE software Licence
Tripod

FARO Focus S 70 Laser Scanner

FARO Focus S 70 Laser Scanner delivers industrial grade performance with an exceptional price/performance ratio. This includes an Ingress Protection (IP) Rating of 54 for use in high particulate and wet weather conditions, HDR imaging and extended temperature range. Additionally, users will continue to have unrestricted freedom of choice to leverage the software tools most beneficial to their own workflow, including FARO SCENE and 3rd party software solutions such as Autodesk ReCap.

The FARO FocusS70 also delivers a set of incremental, value-added functionality that makes it a perfect fit for those applications that require the short range scanning power of the FocusM 70, the next level accuracy of the FocusS150 or FocusS350 and the unique power of real time, one-site registration.

Short Range with Best in Class Accuracy: Designed for both indoor and outdoor applications that require scanning up to 70 meters and with accuracy of +/- 1mm
More Data Captured Faster: Delivers acquisition speed of almost 1,000,000 points per second
Improved Productivity and Confidence: Supports the real time, on-site registration functionality recently announced by FARO with the introduction the SCENE 7.0 software suite

KEY FEATURES

ACCURACY: The FocusS captures environments with increased accuracy and distance with dual-axis compensator and angular measurement
ON-SITE COMPENSATION: With the on-site compensation functionality users can verify and adjust the FocusS compensation on-site, ensuring high quality scan data
ACCESSORY BAY: The accessory bay allows users to connect additional 3D laser scanning accessories to support a variety of projects
TEMPERATURE: Extended temperature range allows scanning in challenging environments. The Focus can operate in temperatures as low as -20°C and up to 55°C.
IP RATING - CLASS 54: With the sealed design and certified with the industry standard Ingress Protection (IP) Rating, IP54, the Focus can be used in high particulate and wet weather conditions
COMPACT AND PORTABLE: The Focus Laser Scanners measure at 230 x 183 x 103mm and weigh at 4.2kg making them the smallest and most light weight scanners in the market. The devices are equipped with a waterproof transport and ergonomic carrying case for maximum portability

LASER SCANNERS FOR SHORT, MEDIUM AND LONG RANGE APPLICATIONS

FARO Focus Laser Scanners are specifically designed for both indoor and outdoor measurements in industries such as Architecture, Engineering, Construction, Public Safety and Forensics or Product Design. All devices capture real world information into the digital world to deliver information used to analyze, collaborate and execute better decisions to improve and maintain the overall project and product quality.

All FocusS and FocusM scanners are equipped with recognizable features, such as Ingress Protection (IP) Rating, extended temperature range, HDR functionality, all in an ultra portable size.

The Laser Scanner FocusS Series offers more advanced functionality in addition. Besides an increased distance and angular accuracy all FocusS scanners are equipped with an internal accessory bay and an on-site compensation function quality verification. When utilized with SCENE Software, the FocusS supports real time, on-site registration which enables 3D scan data to be wirelessly transmitted, processed, aligned and registered directly to an on-site mobile device/PC in real time.

BENEFITS

Confidence and documented data quality by traceable vendor calibration and market leading on-site compensation.
Scan in challenging environments while providing protection from dust, debris and water splashes
The Focus Laser Scanner portfolio offers the most economic 3D scanning solution for all requirements and budgets.
Minimum training effort is ensured by the intuitive and easy to operate touch-screen interface as well as hands-on online tutorials.
Efficient integration into existing software infrastructures and workflows are ensured by interfaces into various standard CAD systems

FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS

	FARO FocusS Plus 350	FARO FocusS Plus 150	FARO FocusS 350	FARO FocusS 150	FARO FocusS 70	FARO FocuS M70
Ranging Unit
Unambiguity Interval	614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec 153m at 2 mil pts/sec		614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec			614m for up to 0.5 mil pts/sec
Range
90% Reflectivity (white)	0.6-350m	0.6-150m	0.6-350m	0.6-150m	0.6-70m	0.6-70m
10% Reflectivity (dark-gray)	0.6-150m	0.6-150m	0.6-150m	0.6-150m	0.6-70m	0.6-70m
2% Reflectivity (black)	0.6-50m	0.6-50m	0.6-50m	0.6-50m	0.6-50m	0.6-750m
Range Noise
@10m 90% (white)	0.1		0.3			0.7
@10m 10% (dark-gray)	0.3		0.4			0.8
@10m 2% (black)	0.9		1.3			1.5
@25m 90% (white)	0.2		0.3			0.7
@25m 10% (dark-gray	0.5		0.5			0.8
@25m 2% (black)	1.6		2.0			2.1
Max. Measurement Speed (mil. pts/sec)	Up to 2		Up to 1			Up to 0.5
Ranging Error³ (mm)	±1					±3
Angular Accuracy?	19 arcsec for vertical/horizontal angles					not specified
3D Point Accuracy	2 @10m 3.5 @25m		2 @10m 3.5 @25m			not specified

ADDITIONAL PERFORMANCE SPECIFICATIONS
Color Unit
Color Resolution	Up to 165-megapixel color
HDR Camera	Exposure bracketing 2x, 3x, 5x
Parralax	Minimized due to co-axial design
Deflection Unit
Field of View	300°vertical? / 360° horizontal
Step Size	0.009 (40,960 3D-pixel on 360°) vertical / 0.009 (40,960 3D-pixel on 360°) horizontal
Max. Scan Speed	97Hz (vertical)
Laser (Optical Transmitter)
Laser Class	Laser Class 1
Wavelength	1550nm
Beam Divergence	0.3mrad (1/e)
Beam Diameter at Exit	2.12mm (1/e)
Data Handling and Control)
Data Storage	SDHC, SDXC, 32GB; max. 512GB card
Scanner Control	Via touch screen display and WLAN connection, Access by mobile devices with HTML5
Interface Connection
WLAN	802.11n (150Mbit/s), as access point or client in existing networks

ADDITIONAL FEATURES
Dual Axis Compensator	Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2
Height Sensor	Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan
Compass	The electronic compass gives the scan an orientation
GNSS	Integrated GPS & GLONASS
On-Site Compensation	Creates current quality report and improves compensation automatically
Accessory Bay*	The accessory bay connects versatile accessories to the scanner
Inverse Mounting	Yes
Real-time, On-site Registration in SCENE	Connects to SCENE, real-time scan processing and registration, overview map
Electronic Automation Interface	Available as option, only at point of sale
Digital Hash Function	Scans are cryptographically hashed and signed by the scanner
Rescanning of Distant Targets	Defined areas recaptured in higher resolution at a greater distance
Retake Photos	Select individual photographs with unwanted objects and retake them

GENERAL SPECIFICATIONS
Power Supply	19V (external supply), 14.4V (internal battery)
Power Consumption	15W idle, 25W scanning, 80W charging
Battery Service Life	4.5 hours
Temperature	Operating: 5° - 40° C \| Extended Operating?: -20° - 55° C \| Storage: -10°- 60°C
Ingress Protection (IP) Rating Class	IP54
Humidity Resistance	Non-condensing
Weight	4.2 kg (including battery)
Size/Dimensions	230 x 183 x 103mm
Maintenance / Calibration	Recommended annua

Faro SCENE Software

FARO SCENE is specifcally designed for all FARO laser scanners. The software processes and manages scanned data both effciently and easily by using the automatic object recognition and scan registration. SCENE is an extremely user-friendly software that allows scans to be automatically combined. The resulting point cloud can be viewed in three dimensions. All the scans are available in color and as high-contrast intensity images.

Automated target-less scan registration
SCENE WebShare Cloud integration
Super-crisp visualisation
Easy processing of large scan projects
Plug-Ins for extended functionality
Homogenisation of point clouds

Software Options: The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions
