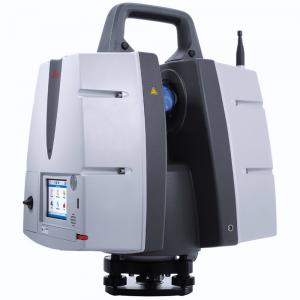

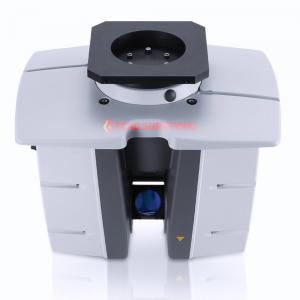

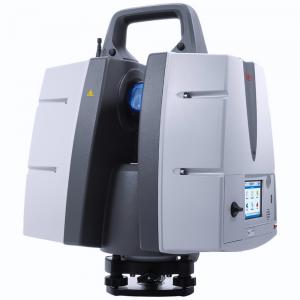

Leica ScanStation P40 for sale, new, 2 Year Warranty, including standard and target Accessories, 1 year CCP Basic support agreement
Leica ScanStation P40 for sale, new, 2 Year Warranty, including standard and target Accessories, 1 year CCP Basic support agreement
Leica ScanStation P40 sale package:
Additional Accessories
Leica Geosystems also has the newest 3D terrestrial laser scanner P-Series, the Leica ScanStation P50, the fastest and safest long-range 3D laser scanner, combines all the well-known features of the Leica ScanStation P40 plus a longer-range scanning capability of more than 1 kilometre, increasing users’ flexibility to offer services in new markets, this rugged and versatile laser scanner enables professionals to 3D capture even at great distances with angular accuracy paired with low range noise and survey-grade dual-axis compensation.
Leica ScanStation P40 deliver highest quality 3D data and High-Dynamic Range (HDR) imaging at an extremely fast scan rate of 1 million points per second at ranges of up to 270m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity.
The ScanStation P40 offers highest versatility including long range capabilities. Delivering outstanding range, speed and data quality whenever and wherever needed it is the perfect solution for any tasks in 3D laser scanning.
The ScanStation P40 Key features:
The right choice
Whether capturing 3D geometry of civil infrastructure, creating an as-built representation of a large industry complex, reconstructing a crime scene or generating 3D data for integration into Building Information Modelling (BIM), you know you’ll need an accurate long range scanning tool for your projects – the new ScanStation P40 laser scanner from Leica Geosystems is the right choice, because every detail matters.
High performance under harsh conditions
The Leica ScanStations deliver highest quality 3D data and HDR imaging at an extremely fast scan rate of 1 mio points per second at ranges of up to 270m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity
Reduced downtime
The extremely durable new laser scanners perform even under the toughest environmental conditions, such as extreme temperatures ranging from –20°C to +50°C and comply with the IP54 rating for dust and water resistance.
Complete scanning solution
Leica Geosystems offers the new Leica ScanStation portfolio as an integrated part of a complete scanning solution including hardware, software, service, training and support. 3D laser scanner data can be processed in the industry’s leading 3D point cloud software suite, which consists of Leica Cyclone stand-alone software, Leica CloudWorx plug-in tools for CAD systems and the free Leica TruView
Leica ScanStation P-Series 3D laser scanners are your perfect partner when capturing 3D geometry of civil infrastructure, creating an as-built representation of a large industry complex, reconstructing a crime scene or generating 3D data for integration into Building Information Modelling (BIM).
Delivering highest quality 3D data and HDR imaging at an extremely fast scan rate of 1 mio points per second at ranges of up to 270 m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity.
Reducing downtime, the extremely durable 3D laser scanners perform even under the toughest environmental conditions, such as extreme temperatures ranging from – 20°C to + 50°C and comply with the IP54 rating for dust and water resistance.
Leica Geosystems 3D laser scanners deliver:
LEICA SCANSTATION P40 PRODUCT SPECIFICATIONS
| SYSTEM ACCURACY | |
| Accuracy of single measurement | |
| Range accuracy | 1.2 mm + 10 ppm over full range |
| Angular accuracy | 8” horizontal; 8” vertical |
| 3D position accuracy | 3 mm at 50 m; 6 mm at 100 m |
| Target acquisition ** | 2 mm standard deviation at 50 m |
| Dual-axis compensator | Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1”, dynamic range ± 5', accuracy 1.5” |
| DISTANCE MEASUREMENT SYSTEM | |
| Type | Ultra-high speed time-of-flight enhanced by Waveform Digitising (WFD) technology |
| Wavelength | 1550 nm (invisible) / 658 nm (visible) |
| Laser class | 1 (in accordance with IEC 60825:2014) |
| Beam divergence | < 0.23 mrad (FWHM, full angle) |
| Beam diameter at front window | ≤3.5 mm (FWHM) |
| Range and reflectivity | Minimum range 0.4 m |
| Maximum range at reflectivity | |
| 120 m 180 m 270 m | |
| P30 18 % – – P40 8% 18% 34 % |
|
| Scan rate | Up to 1,000,000 points per second |
| Range noise | 0.4 mm rms at 10 m 0.5 mm rms at 50 m |
| Field-of-View Horizontal Vertical |
360° 290° |
| Data storage capacity | 256 GB internal solid-state drive (SSD) or external USB device |
| Communications/Data transfer | Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device |
| Onboard display | Touchscreen control with stylus, full colour VGA graphic display (640 × 480 pixels) |
| Laser plummet | Laser class 1 (IEC 60825:2014) Centring accuracy: 1.5 mm at 1.5 m Laser dot diameter: 2.5 mm at 1.5 m Selectable ON/OFF |
| IMAGING SYSTEM | |
| Internal camera | |
| Resolution | 4 MP per each 17° × 17° colour image; 700 MP for panoramic image |
| Pixel size Video | 2.2 µm Streaming video with zoom; auto-adjusts to ambient lighting |
| White balancing HDR | Sunny, cloudy, warm light, cold light, custom Tonemapped / full range |
| External camera | Canon EOS 60D/70D/80D/90D supported |
| POWER | |
| Power supply | 24 V DC, 100 – 240 V AC |
| Battery type | 2× Internal: Li-Ion; External: Li-Ion (connect via external port, simultaneous use, hot swappable) |
| Duration | Internal > 5.5 h (2 batteries) External > 7.5 h (room temp.) |
| ENVIRONMENTAL | |
| Operating temperature | –20°C to +50°C / –4°F to +122°F |
| Storage temperature | –40°C to +70°C / –40°F to +158°F |
| Humidity | 95 %, non-condensing |
| Dust/Water | Solid particle/liquid ingress protection IP54 (IEC 60529) |
| PHYSICAL | |
| Scanner | |
| Dimensions (D × W × H) Weight |
238 mm × 358 mm × 395 mm / 9.4”× 14.1”× 15.6” 12.25 kg / 27.0 lbs, nominal (w/o batteries) |
| Battery (internal) | |
| Dimensions (D × W × H) Weight |
40 mm × 72 mm × 77 mm / 1.6”× 2.8”× 3.0” 0.4 kg / 0.9 lbs |
| Mounting | Upright or inverted |
| CONTROL OPTIONS | |
| Full colour touchscreen for onboard scan control. Remote control: Leica CS10/CS15/CS20/CS35 controller or any other remote desktop capable device, including iPad, iPhone and other SmartPhones; external simulator. Leica Cyclone FIELD 360 with tablet and SmartPhone (iOS and Android). Leica Cyclone FIELDWORX with Windows® Surface table |
|
| FUNCTIONALITY | |
| Survey workflows and onboard registration Quick orientation, Set azimuth, Known backsight, Resection (4 and 6 parameters), Traverse Check & Adjust Field procedure for checking of angular parameters, tilt compensator and range offset Onboard target acquisition Target selection from video, scan or red laser beam Onboard user interface Switchable from standard to advanced One button scan control Scanner operation with one button concept Scan area definition Scan area selection from video or scan; batch job scanning Double scan Automatic removal of point cloud noise introduced by moving objects |
|
