Used Creaform EXAscan Scanner

$5500
In Stock

Used Creaform EXAscan Scanner for sale, almost 12 years old but everything still in excellent perfect working condition.

Used Creaform EXAscan Scanner description

Used Creaform EXAscan Scanner for sale, year 2008 almost 12 year old but everything still in excellent perfect working condition. This EXAscanner for sale due to previous owner has been upgraded to HandySCAN 700. In case you change your mind please considerate with used HandyScan 700 3D Scanner for sale.

What is included:

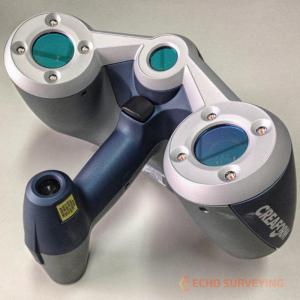

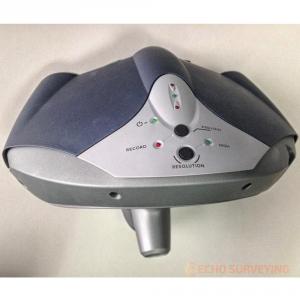

  • Creaform EXAscan Scanner

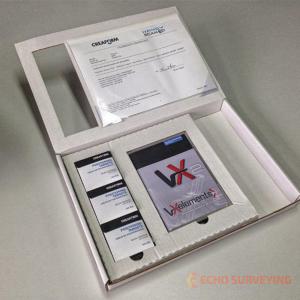

  • VXelements software
  • 2.75 meters FireWire cable
  • Connecting cables, Connecting card

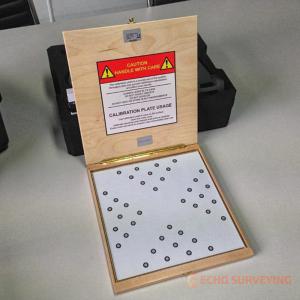

  • Calibration plate

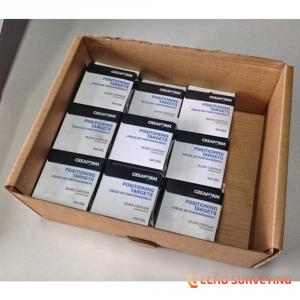

  • 2,500 reflective targets

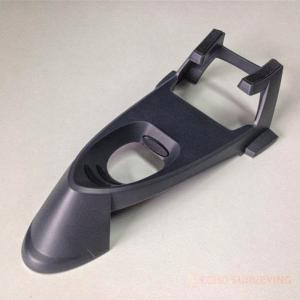

  • Ergonomic support
  • Carrying case

Creaform EXAscan Scanner is the first generation of HandySCAN 3D scanners, recent line-up of innovative handheld laser scanners developed and manufactured by Creaform are Creaform HandySCAN 300Creaform HandySCAN 700

EXAscan model featured the highest resolution and accuracy, equipped with a third high definition camera, located in the upper central section, which greatly increases the scanning resolution as well as the data acquisition accuracy. The EXAscan also boosts a new automatic multi-resolution function enabling it to automatically set the optimum resolution level of the data acquired, according to the type of surface it is scanning.

Based on the same powerful technology that made the Handyscan 3D so successful, this self-positioning and truly portable laser scanner offers great cost effectiveness, since it doesn’t require any additional CMM arm or other external tracking devices. It is also very easy and quick to use

The EXAscan brings a resolution approximately 5 times greater as well as an accuracy about 2 times higher than that of Handyscan 3D line-up’s first scanner, which proves greatly useful for scanning highly detailed surfaces and small objects in many fields such as aerospace, automotive, biomechanics, consumers products education, heritage preservation & architecture and multimedia. Its applications run from reverse engineering to design and manufacturing, inspection, digital mock-ups and simulation.

The EXAscan is also powered by VxScan, Creaform’s proprietary data acquisition software that supports the Handyscan 3D laser scanners line-up. VxScan provides real time 3D rendering visualization, is easy to learn and to use and also offers great flexibility and powerful options such as surface optimization algorithms, meshing optimization and sensor auto-calibration.

Applications and Solutions
Inspection: The EXAscan laser scanner is the perfect  inspection tool for analyzing and reporting geometric dimensioning and tolerancing (GD&T). The direct .stl files generated can easily be imported into inspection software and quickly processed.
The EXAscan can help you with the scanning and measuring of objects of any sizes in various environments, generating inspection and colorimetric reports and:

  • Non contact inspection
  • First article inspection
  • Supplier quality inspection
  • Part-to-CAD inspection
  • Conformity assessment of 3D models against the original parts/production tooling
  • Conformity assessment of manufactured parts against originals.

Reverse Engineering & Styling, Design & Analysis: Facilitates surface reconstruction, class A surfacing, 3D modeling, clay model digiti- zing, mechanical design,  tooling & jigs, maintenance, repair & overhaul (MRO) and finite element analysis (FEA).

Other applications: Include 3D scanning of existing objects, 3D archiving, complex shape acquisition, measurements archiving, damage assessment, medical application, digital models and mock-ups, packaging design and rapid prototyping.

Technical Specification

  • Weight: 1.25 kg (2.75 lbs)
  • Dimensions: 172 x 260 x 216 mm (6.75 x 10.2 x 8.5 in)
  • Measurement: 25,000 measures/s
  • Laser Class: II (eye-safe)
  • Resolution in x, y, z axis: 0,05 mm (0.002 in)
  • Accuracy: Up to 40 μm (0.0016 in)
  • ISO: 20 μm + 100 μm/m
  • Depth of field: 30 cm (12 in)
  • Output formats: .dae, .fbx, .ma, .obj,   .ply, .stl, .txt, .wrl,   .x3d,.x3dz, .zpr

Compatible Software: Paired up with the following CAD/post-processing software, the EXAscan  laser scanner delivers great performance:

  • CATIA V5: HSM™, the Handyscan Scanning Module for CATIA V5, is available from Creaform
  • Geomagic: The plug-ins for STUDIO and QUALIFY are provided with VxScan
  • PolyWorks: Plug-ins are available from Innovmetric for the IMEdit & IMInspect modules
  • μLog XG, Metrolog XG and Metrolog V5: Plug-in included with μLog XG. For the other two software, it can be purchased from Creaform and metrologic group
  • Rapidform: The Handyscan 3D interface is included with every installation of XOS, XOR and XOV
