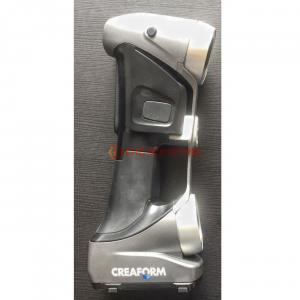

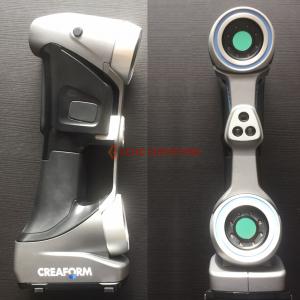

Used HandyScan 700 3D Scanner

$7500
In Stock

HandyScan 700 3D Scanner, lightly used year 2015, fully functional, latest firmware, serviced and calibrated and everything still in excellent condition.

Used HandyScan 700 3D Scanner description

Looking for an excellent condition used HandyScan 700 for sale? You have come to the right place. We have for sale the used Creaform HandySCAN 700, the flagship 3D scanner of the new generation of Creaform HandySCAN family. Lightly used year 2015, fully functional and everything still in excellent condition. Unit has been serviced can calibrated by authorized Creaform, latest firmware updated and ready to working order. The Creaform VXElements software and Calibration Plate included, Owner can do full calibration process before use the scanner, approximately takes around 2 minutes to completed.

Creaform HandySCAN 700 sale includes;

  • Creaform HandySCAN 700
  • VXelements Software License (usb license dongle)
  • Calibration plate
  • 1x Adhesive Positioning Targets (1x Box of 500 6mm) with black contour adhesive positioning targets
  • Power supply
  • USB cable

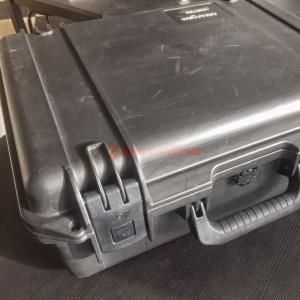

  • Protective hard carrying case

HANDYSCAN 700 3D SCANNER

HandySCAN 700 is the flagship Creaform HandySCAN 3D scanner family, offers increased accuracy and resolution, also the most versatile 3D scanner on the market for inspection and demanding reverse engineering.

  • 25 times faster than the previous generation
  • 40% more accurate
  • Improved ergonomy
  • 35% lighter
  • 50% smaller
  • Greater freedom of movement
  • Multi-function buttons for easier interaction with the software

TRUACCURACY

  • Metrology-grade measurements: accuracy of up to 0.030 mm (0.0012 in.), resolution of up to 0.050 mm (0.002 in.), high repeatability and traceable certificate.
  • Accuracy in real-life conditions: regardless of environment conditions, part set-up or user.
  • No rigid setup required: optical reflectors are used to create a reference system that is “locked” to the part itself, so users can move the object any way they want during scanning sessions (dynamic referencing). Changes in surrounding environment have no impact on data acquisition quality or accuracy.
  • Self-positioning: the HandySCAN 3D scanner is a data acquisition system and its own positioning system. This means that no external tracking or positioning devices is required. It uses triangulation to determine its relative position to the part in real time.
  • Reliable: consistent and repeatable results across all work conditions or environments.
  • On-demand user calibration: the scanner can be calibrated as often as necessary (day-to-day basis or before each new scanning session). Calibration takes about 2 minutes and guarantees optimal operation.

TRUPORTABILITY

  • Stand-alone device: there is no need for an external positioning system, arms, tripod or fixture.
  • On-the-go scanning: you can take it from place to place or use it in-house or on site.
  • Lightweight: weights under 1 kg.
  • Small: Fits into a case the size of a carry-on.
  • Easy access to confined spaces: thanks to its small size and flexible stand-off distance.

SPEED

  • Fastest 3D scanner on the market: 25 times faster than the previous generation.
  • Highest measurement rate among all laser scanners: 480,000 measures/s.
  • Automatic mesh output: ready-to-use files, right as you complete acquisition.
  • Quick workflow integration: usable scan files can be imported into RE/CAD software without post-processing

TRUSIMPLICITY

  • User-friendly: very short learning curve, regardless of the user’s experience level.
  • Quick set-up: up and running in less than 2 minutes.
  • Direct mesh output: no complicated alignment or point cloud processing.
  • Real-time visualization: look at the computer screen to see what you are doing and what is left to be done.
  • Versatile: virtually limitless 3D scanning – no matter the part size, complexity, material or color.

APPLICATIONS

The HandySCAN 3D scanners: your best ally in product development process and also in all stages of your product lifecycle management such as: concept, design, manufacturing and servicing.

CONCEPT

REQUIREMENTS AND SPECIFICATIONS

  • Competitive product analysis
  • Measurement of product environment or connecting/Surrounding part
  • Measurement of existing parts for aftermarket or custom equipment

CONCEPT DESIGN

  • Clay model measurement/Reverse engineering
  • Models and mock-ups measurement/Reverse engineering
  • Styling and aesthetics

CONCEPT PROTOTYPING

  • Integration of prototype modifications into CAD file
  • Form study, proof-of-concept prototypes
  • Ergonomy prototypes

DESIGN











CAD DESIGN

  • 3D scan-to-CAD
  • Reverse engineering (extracting design-intent)
  • Packaging design











PROTOTYPING

  • Rapid prototyping/Manufacturing
  • Integration of prototype modifications into CAD file
  • Prototype inspection









TESTING, SIMULATION AND ANALYSIS

  • Finite element analysis (FEA)
  • Interference analysis
  • Deformation, geometry analysis

MANUFACTURING









TOOLING DESIGN

  • Reverse engineering of dies, molds, fixtures, jigs and patterns
  • Update of CAD file to reflect as-built tooling measurements
  • Tooling validation/Inspection
””ASSEMBLY/PRODUCTION
  • Virtual assembly
  • Tool/Robot path programming
  • Part assessment before machining

QUALITY CONTROL

  • First article inspection (FAI)
  • Part-to-CAD inspection
  • Supplier quality inspection

SERVICING









DOCUMENTATION

  • As-built documentation of parts/Tooling
  • Marketing presentations, 3D training systems, serious gaming
  • Digital archiving









MAINTENANCE, REPAIR AND OVERHAUL (MRO)

  • Wear and tear analysis
  • Custom repairs/Modification
  • As-built documentation of parts/Tooling before maintenance









REPLACEMENT/RECYCLING

  • Reverse engineering for developing replacement /Restoration parts
  • Planning of complex assemblies disassembly/Dismantling



OTHER APPLICATIONS

  • Museology/Heritage preservation
  • Preservation, restoration and digital archiving
  • 3D scanning for research, analysis and publishing
  • Multimedia/Entertainment
  • Computer graphics and special effects

VXELEMENTS SOFTWARE: CREAFORM’S 3D SOFTWARE PLATFORM

The HandySCAN 3D scanners come with VXelements, a fully integrated 3D software platform that powers our entire fleet of 3D scanning and measurement technologies. It gathers all the essential elements and tools into a user-friendly, simplified and sleek working environment. Its real-time visualization provides a simple, enjoyable scanning experience.

An optimized scan file is automatically created and available upon completion of the data acquisition step, which contributes to greatly shorten your part inspection or design process.

VXSCAN: SCAN SOFTWARE MODULE

VXscan is entirely dedicated to the acquisition and optimization of 3D scanning data. It delivers high performance for that specific task, yet it is simple and user-friendly enough to suit any user's experience level.

  • User-friendly interface: VXelements was designed to simplify the whole scanning process to its essential core, through a powerful and simple process.
  • Surface optimization algorithm: avoids the creation of multiple scan layers and ensures a more accurate mesh without any post-treatment;
  • Direct mesh output: an optimized mesh can be exported in all standard formats, right as you complete acquisition. No complicated alignment or point cloud processing needed;
  • No limitation to the scan resolution: you simply need to input a resolution value, independent from the size of the scanned object. Resolution can be changed at any time before/after the scan;
  • Real-time visualization: the user can view the 3D surface as the object is being scanned;
  • Scan results enhancement: hole filling, smart decimation, boundary filters, etc.

HANDYSCAN 700 3D SCANNER TECHNICAL SPECIFICATIONS

  HANDYSCAN 300 HANDYSCAN 700
  HandySCAN 300Looking for the most efficient way to reverse engineer and/or design. The HandySCAN 300 is a reliable tool that will help you get there. HandySCAN 700The HandySCAN 700 offers increased accuracy and resolution. It is the most versatile 3D scanner on the market for inspection and demanding reverse engineering.
Accuracy Up to 0.040 mm (0.0016 in.) Up to 0.030 mm (0.0012 in.)
Volumetric accuracy* 0.020 mm + 0.100 mm/m
(0.0008 in. + 0.0012 in./ft)
0.020 mm + 0.060 mm/m
(0.0008 in. + 0.0007 in./ft)
Volumetric accuracy with MaxSHOT Next™ 0.020 mm + 0.025 mm/m
(0.0008 in + 0.0003 in/ft)
MaxSHOT Next™|Elite 0.020 mm + 0.015 mm/m
(0.0008 in + 0.00018 in/ft)
Resolution 0.100 mm (0.0039 in.) 0.050 mm (0.0020 in.)
Measurement rate 205,000 measurements/s 480,000 measurements/s
Light source 3 laser crosses 7 laser crosses (+1 extra line)
Laser class 2M (eye-safe)
Scanning area 225 x 250 mm
(8.8 x 9.8 in.)
275 x 250 mm
(10.8 x 9.8 in.)
Stand-off distance 300 mm (11.8 in.)
Depth of field 250 mm (9.8 in.)
Part size range
(recommended)
0.1 – 4 m (0.3 – 13 ft)
Software VXelements
Output formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Compatible software 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Dassault (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage).
Weight 0.85 kg (1.9 lbs.)
Dimensions 77 x 122 x 294 mm (3.0 x 4.8 x 11.6 in.)
Connection standard 1 X USB 3.0
Operating temperature range 5-40 °C (41-104 °F)
Operating humidity range (non-condensing) 10-90%
