Leica GS07 GNSS RTK Rover sale includes:

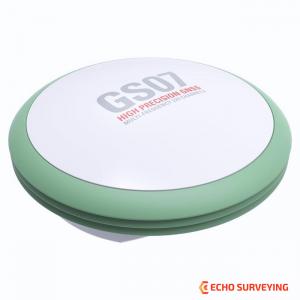

The GS07 is Leica Geosystems’ new mid-range GNSS smart antenna. It is the light weight, yet robust piece of equipment which comes with functionality focused on exactly what you need, with the highest quality levels one would expect from a premium Leica Geosystems GNSS portfolio.
The GS07 guarantees fast and reliable stake out and data capture combined in an easy-to-use rover with 320 channels, multi frequency and multi constellation. It also supports expansion of communication devices such as UHF radios which are fully integrated in the CS20. Through its connectivity to Leica Captivate field software and the Leica CS20 field controller, the GS07 delivers true Leica Geosystems quality.
The GS07 is the new mid-range Smart Antenna, light weight but robust. Guaranteeing fast and reliable stake out and data capture, combined in an easy-to-use rover with 320 channels, multi frequency and multi constellation. It also supports expansion of communication devices such as UHF radios which are fully integrated in the CS20 Field Controller.
The GS07 system can be used as either a Network Rover or a Rover in Radio operation, however the CGR4 radio module for the CS20 is needed.
LEICA GS07 CS20 GNSS NetRover TECHNICAL SPECIFICATIONS
| GNSS PERFORMANCE | ||
| GNSS Technology | Leica RTKplus | Adaptive on-the-fly satellite selection |
| Leica SmartCheck | Continuous check of RTK solution | Reliability 99.95% |
| Signal tracking | GPS | GLONASS | L1, L2, L2C, L5 | L1, L2, L2C, L3 |
| Galileo | BeiDou | E1, E5a, E5b, AltBOC, E6 | B1I, B1C, B2I, B2a, B3I | |
| QZSS | NavIC | L1, L2C, L5, L62 | L53 | |
| SBAS | WAAS, EGNOS, MSAS, GAGAN | |
| RAIM | Receiver Autonomous Integrity Monitoring | Detection and elimination of faulty satellite signals for enhanced positioning solution and GNSS integrity |
| Number of channels | 320 hardware channel | |
| MEASUREMENT PERFORMANCE & ACCURACY | ||
| Time for initialisation | Typically 6 s | |
| Real-time kinematic (Compliant to IS017123-8 standard) |
Single baseline Network RTK |
Hz 10 mm + 1 ppm / V 20 mm + 1 ppm Hz 10 mm + 0.5 ppm / V 20 mm + 0.5 ppm |
| Post processing | Static (phase) with long observations Static and rapid static (phase |
Hz 3 mm + 0.5 ppm / V 6 mm + 0.5 ppm Hz 5 mm + 0.5 ppm / V 10 mm + 0.5 ppm |
| Code differential | DGNSS | Hz 25 cm | V 50 cm |
| COMMUNICATIONS | ||
| Communication ports | Lemo Bluetooth® |
USB and RS232 serial Bluetooth v2.00 + EDR, class 2 |
| Communication protocols | RTK data protocols Network RTK |
Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM VRS, FKP, iMAX, MAC (RTCM SC 104) |
| Built-in data links 4 | 3.75G GSM / UMTS / CDMA phone modem Radio modem |
Fully integrated, internal antenna Fully integrated, receive, external antenna 403 - 473 MHz, up to 28800 bps over air |
| External data links | Bluetooth GSM / GPRS / UMTS / LTE / CDMA phone modem | |
| GENERAL | ||
| Field controller and software | Leica Captivate software | Leica CS20 field controlle |

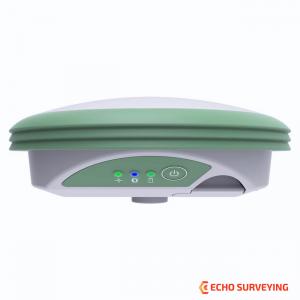

| User interface | Buttons and LEDs | On / Off button, 3 status LEDs |
| Data recording | Storage 5 Data type and recording rate |
Removable SD card Leica GNSS raw data and RINEX data at up to 5 Hz |
| Power management | Internal power supply External power supply Operation time 6 |
Exchangeable Li-Ion battery (2.6 Ah / 7.4 V) Nominal 12 V DC, range 10.5 - 28 V DC 8 h GNSS 7 h receiving RTK data with CS modem |
| Weight and dimensions | Weight Diameter x Height |
0.7 kg / 2.7 kg standard RTK rover setup on pole 186 mm x 71 mm |
| Environmental | Temperature Drop Proof against water, sand and dust Vibration Humidity Functional shock |
-40 to 65°C operating, -40 to 80°C storage Withstands topple over from a 2 m survey pole onto hard surfaces IP66 / IP68 (IEC60529 / MIL STD 810G CHG-1 510.6 I / MIL STD 810G CHG-1 506.6 II / MIL STD 810G CHG-1 512.6 I) Withstands strong vibration (ISO9022-36-05 / MIL STD 810G 514.6 Cat.24) 95% (ISO9022-13-06 / ISO9022-12-04 / MIL STD 810G CHG-1 507.6 II) 40 g / 15 to 23 msec (MIL STD 810G 516.6 I |
| LEICA GS07 – GNSS SMART ANTENNA | |||||
| SUPPORTED GNSS SYSTEMS | |||||
| Multi-frequency | Standard | ||||
| GPS / GLONASS / Galileo / BeiDou / QZSS | Standard / Optional / Optional / Optional / Standard | ||||
| RTK PERFORMANCE | |||||
| DGPS/RTCM, RTK Unlimited, Network RTK | Standard | ||||
| POSITION UPDATE & DATA RECORDING | |||||
| 5 Hz positioning | Standard | ||||
| Raw data / RINEX data logging | Standard / Standard | ||||
| ADDITIONAL FEATURES | |||||
| 3.75G GSM / GPRS / UMTS / CDMA phone modeM | Optional | ||||
| UHF radio modem (receive only) | Optional | ||||
