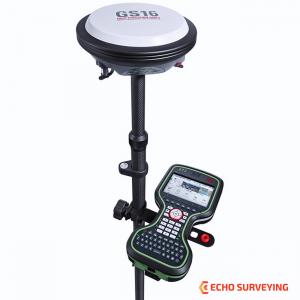

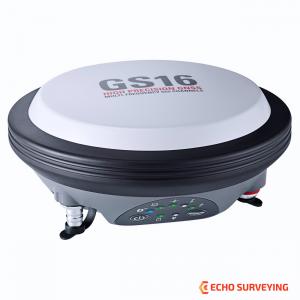

Leica Viva GS16 GNSS RTK Rover

Leica Viva GS16 GNSS RTK Rover for sale, GPS L1/L2, L5, LOP53, Multi-frequency, L2, L5 and L-band tracking, Leica CS20 3.75G Leica Captivate Measure & Stakeout & Stake Line

Leica Viva GS16 GNSS RTK Rover sale includes:

• Leica GS16 GNSS 555 Channel RTK Receiver with GPS L1/L2, L5
• LOP53, Multi-frequency option, enables L2, L5 and L-band tracking
• LOP5 20Hz Position Rate
• LOP12, RTK unlimited + Network RTK option
• LOP13, RTK Reference Station option
• LOP15, NIMEA out option
• LOP54 Glonass
• Leica CS20 3.75G Field Controller
• Leica Captivate - Measure & Stakeout for CS20
• Leica Captivate - Measure & Stake Line CS20
• GHT63 Clamp arrangement for attaching holder to pole
• GHT66 Pole holder base plate
• Leica GEB331 Batteries
• 2x Leica GEB212 Batteries
• 2x Leica GKL311 Basic Charger
• GVP720 carry case
• SEC5125-20-FLY SECO Snap-Lock Aluminum Rover Pole

The Leica Viva GS16 is the most compact and powerful, self-learning GNSS smart antenna. Working with the leading RTK technology, the Viva GS16 meets the highest standards in measurement excellence with RTKplus and SmartLink. The growing number of signals from an ever increasing satellite constellation demands a GNSS receiver to be smarter than ever before. RTKplus intelligently adapts to changing conditions by selecting the optimal signals to deliver the most accurate positions. Work more efficiently and in more challenging environments than you’ve ever worked in before.

Enjoy uninterrupted accurate positioning even when your local correction service is unavailable due to obstructions or lack of cellular coverage with the global SmartLink service. Even when no reference data is available, work fully remotely with SmartLink.

Features:

• 555 channels for more signals, faster acquisition and improved sensitivity
• Intelligent management of multi-frequency,ulti-constellation signals
• Intelligent selection to automatically reject reflected or noisy signal
• Unique RTK technology provides continuous checks to guarantee correct results
• Initialization within seconds
• Complete reliability
• Achieve centimeter accurate positioning worldwide -perfect when working in remote areas around the globe
• No RTK base station or RTK network required, correction data is continuously transmitted by satellite delivering global coverage
• Bridging RTK outages for uninterrupted centimeter positioning
• IP68 protection
• Built for extreme temperatures of -40°C to +65°C
• Fulfils toughest standards throughout the complete product lifetime
• Integrated mobile phone and UHF radio RTK devices
• Compact housing
• Lightweight
• SmartNet Satellite Positioning - your No.1 partner for network RTK
• Leica Active Assist - the next level in support
• Leica Exchange - transfer data easily, quickly and safely

LEICA VIVA GS16 - GNSS SMART ANTENNA TECHNICAL SPECIFICATIONS

GNSS TECHNOLOGY & SERVICES
Self-learning GNSS	Leica RTKplus SmartLink (worldwide correction service) SmartLink fill (worldwide correction service)	Adaptive on-the-fly satellite selection Remote precise point positioning (3 cm 2D) 1 Initial convergence to full accuracy 20 - 40 min, Re-convergence < 1 min Bridging of RTK outages up to 10 min (3 cm 2D)1 Bridging of RTK outages up to 10 min (3 cm 2D)1
Leica SmartCheck	Continuous check of RTK solution	Reliability 99.99%
Signal tracking		GPS (L1, L2, L2C, L5), Glonass (L1, L2), BeiDou (B1, B2, B3 2), Galileo (E1, E5a, E5b, Alt-BOC, E62 ), QZSS 3 , SBAS (WAAS, EGNOS, MSAS, GAGAN), L-band
Number of channels		555 (more signals, fast acquisition, high sensitivity)



MEASUREMENT PERFORMANCE & ACCURACY
Time for RTK initialisation		Typically 4 s
Real-time kinematic (Compliant to ISO17123-8 standard	Single baseline Network RTK	Hz 8 mm + 1 ppm | V 15 mm + 1 ppm Hz 8 mm + 0.5 ppm | V 15 mm + 0.5 ppm
Post processing	Static (phase) with long observations Static and rapid static (phase)	Hz 3 mm + 0.1 ppm | V 3.5 mm + 0.4 ppm Hz 3 mm + 0.5 ppm | V 5 mm + 0.5 ppm
Code differential	DGPS / RTCM	Typically 25 cm



COMMUNICATIONS
Communication ports	Lemo Bluetooth®	USB and RS232 serial Bluetooth ® v2.00 + EDR, class 2
Communication protocols	RTK data protocols NMEA output Network RTK	Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM NMEA 0183 v4.00 & v4.10 and Leica proprietary VRS, FKP, iMAX, MAC (RTCM SC 104)
Built-in data links	3.75G GSM / UMTS / CDMA phone modem Radio modem	Fully integrated, internal antenna Fully integrated, receive and transmit, external antenna 403 - 470 MHz, 1 W output power, up to 28800 bps over air
External data links		GSM / GPRS / UMTS / CDMA and UHF / VHF modem



GENERAL
Field controller and software	Leica Captivate software	Leica CS20 field controller, Leica CS35 tablets

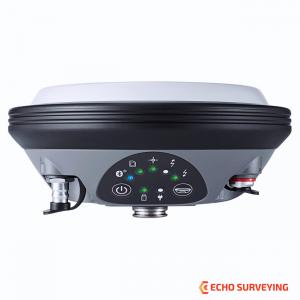

User interface	Buttons and LEDs Web server	On / Off and Function button, 8 status LEDs Full status information and configuration options
Data recording	Storage Data type and recording rate	Internal memory up to 4 GB, Removable SD card Leica GNSS raw data and RINEX data at up to 20 Hz
Power management	Internal power supply External power supply Operating time6	Exchangeable Li-Ion battery (2.8 Ah / 11.1 V) Nominal 12 V DC, range 10.5 - 26.4 V DC Typical time up to 8 h
Weight and dimensions	Weight | Dimensions	1.20 kg / 3.50 kg standard RTK rover setup on pole | 173 mm x 173 mm x 109 mm
Environmental	Temperature Drop Proof against water, sand and dust Vibration Humidity Functional shock	-40 to +65°C operating, -40 to +85°C storage Withstands topple over from a 2 m survey pole onto hard surfaces IP66 | IP68 (IEC60529 | MIL STD 810G CHG-1 510.6 I | MIL STD 810G CHG-1 506.6 II | MIL STD 810G CHG-1 512.6 I) Withstands strong vibration (ISO9022-36-08 | MIL STD 810G 514.6 Cat.24) 95% (ISO9022-13-06 | ISO9022-12-04 | MIL STD 810G CHG-1 507.6 II) 40 g / 15 to 23 msec (MIL STD 810G 516.6 I)



LEICA VIVA GS16 - GNSS SMART ANTENNA	BASIC	PERFORMANCE	UNLIMITED
SUPPORTED GNSS SYSTEMS Multi-frequency GPS / GLONASS / Galileo / BeiDou	Optional Standard / Optional / Optional/ Optional	Standard Standard / Optional / Optional/ Optional	Standard Standard / Standard / Standard / Standard
RTK PERFORMANCE DGPS/RTCM, RTK Unlimited, Network RTK SmartLink fill / SmartLink	Optional Optional / Optional	Standard Optional / Optiona	Standard Standard/ Standard
POSITION UPDATE & DATA RECORDING 5 Hz / 20 Hz positioning Raw data / RINEX data logging / NMEA out	Standard  / Optional Standard / Optional / Optional/	Standard /  / Standard Standard / Optional / Optional/	Standard /  / Standard Standard / Standard / Standard
ADDITIONAL FEATURES RTK reference station functionality 3.75G or CDMA Phone / UHF Radio (receive & transmit) modem	Optional Standard / Optional	Standard Standard / Optional	Standard Standard / Optional



Leica Geosystems GNSS Comparison Chart

	Leica GS08+	Leica GS14	Leica GS16	Leica GS18 T	Leica GS10	Leica GS25
Signal tracking	Dual-frequency	Dual-frequency	Multi-frequency	Multi-frequency	Multi-frequency	Multi-frequency
GPS GLONASS Galileo BeiDou SBAS
SmartLink fill SmartLink
Tilt compensation
Single baseline RTK	Hz 10 mm + 1 ppm / V 20 mm + 1 ppm	Hz 8 mm + 1 ppm / V 15 mm + 1 ppm	Hz 8 mm + 1 ppm / V 15 mm + 1 ppm	Hz 8 mm + 1 ppm / V 15 mm + 1 ppm	Hz 8 mm + 1 ppm / V 15 mm + 1 ppm	Hz 8 mm + 1 ppm / V 15 mm + 1 ppm
Network RTK	Hz 10 mm + 0.5 ppm / V 20 mm + 0.5 ppm	Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm	Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm	Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm	Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm	Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm
Static (phase) with long observations	Hz 3 mm + 0.5 ppm / V 6 mm + 0.5 ppm	Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm	Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm	Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm	Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm	Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm
Static and rapid static (phase)	Hz 5 mm + 0.5 ppm / V 10 mm + 0.5 ppm	Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm	Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm	Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm	Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm	Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm
Reliability	99,95%	99,95%	99,95%	99,95%	99,95%	99,95%
5 Hz 20 Hz positioning
Raw data RINEX data logging NMEA out
RTK reference station functionality
Cellular / UHF Radio (receive & transmit) modem	Controller internal	3G	3G	4G	3G	3G
Storage	Controller internal	MicroSD card	MicroSD card	SD card	SD card	SD card
User interface Buttons LEDs Display	1 3	2 7	2 7	2 8	2 7	7 7
Power, Bluetooth®, USB, RS232
Event, PPS
Operating temperature -40°C to 65°C
IP68 proof against water, sand and dust
Weight (without battery)	0.60 kg	0.93 kg	0.93 kg	1.20 kg	1.20 kg	1.84 kg
