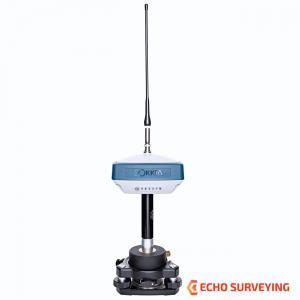

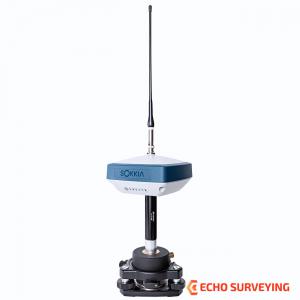

Sokkia GRX3 Base Kit for sale, Integrated GNSS Receiver, UHF antenna, 3-Year Topcon Warranty
Sokkia GRX3 Base sale includes:

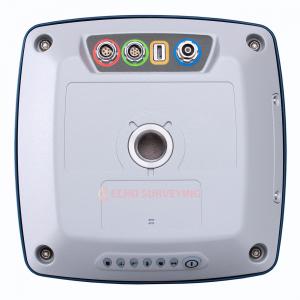

- Sokkia GRX3 Integrated GNSS Receiver
- Receiver power cable & Power adapter (Phihong) & Power wall US cables
- Serial cable, Micro USB cable, 1.5 m & Alligator clips to SAE cable & Cable, Net G3 power SAE to open ends
- UHF antenna 440-470 MHz & Printed UHF notice
- Default OAF (GG L1 1Hz)
- Tribrach with Optical plummet, black & Tribrach adapter #5 with removable center
- Prism spacer, 100mm
- Horizontal spacer, Slant height measurement
- Wood wide frame tripod - Sokkia yellow
- Hard case with strap
- 3-Year Topcon Warranty
The Sokkia GRX3 is smaller, lighter, and packed with the most advanced GNSS technology in a design built to withstand the harshest field environments. All signals, all satellites and all constellations-in a compact, rugged design, with an integrated IMU and eCompass. With an IP67 dustproof and water resistant rating, the GRX3 receiver is also vibration and shock resistant to endure rugged and harsh environments. It also features a built-in 8GB memory storage and an integrated internal battery that avoids any downtime in the job site. As an additional feature, the Sokkia GRX3 can access data by USB read only.
Incorporates a revolutionary 9-axis inertial measurement unit (IMU) and ultra-compact eCompass, which compensate for mis-leveling up to 15 degrees.
- Sokkia Tilt Technology
- L Band Ready Technology
- 226 Universal Tracking Channels (GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS, SBAS)
- Integrated 400 MHz UHF and SiteCom radios
- Fusion Positioning technology
Brief Spesification
- Number of Universal Tracking Channels: 226 UTC technology
- Tracked Signals:
- GPS L1 C/A, L1C, L2P(Y), L2C, L5
- GLONASS L1 C/A, L1P, L2 C/A, L2P, L3C
- BeiDou B1, B2
- Galileo E1,E5a, E5b, Alt-BOC
- SBAS L1 C/A, L5 WAAS/MSAS/EGNOS/GAGAN
- QZSS L1 C/A, L1C, L1-SAIF, L2C, L5
- Static/Fast Static
- H: 3 mm + 0.4 ppm
- V: 5 mm + 0.5 ppm*
- Memory: Internal Non-removable 8 GB
- Radio: Built-in 425-470 MHz UHF radio
- Dust/Water Protection: IP67
- Dimensions: 150 x 100 x 150 mm (w x h x d)
- Operating Time: RX mode -10hr, TX mode 1W - 6hr
