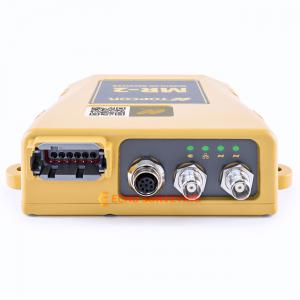

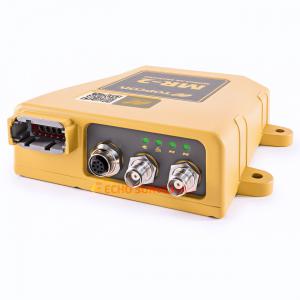

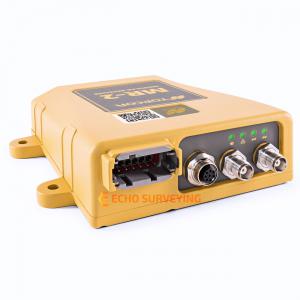

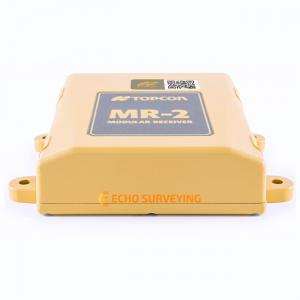

Topcon MR-2 sale, Modular GNSS Receiver, brand new 2-year Topcon Warranty, Full constellation RTK positioning and heading determination with flexible connectivity
Topcon MR-2 Modular GNSS Receiver built to meet all your needs. The MR-2 combines futureproof full constellation tracking with HD2/Heading capabilities and a comprehensive set of communication interfaces. The MR-2 is able to track all present and upcoming GNSS constellations and satellite signals. With 8GB of internal storage and enhanced connection options including Serial, USB, CAN and Ethernet, the MR-2 is a versatile GNSS receiver suitable for any OEM application.
- 226 Universal Channel Vanguard Technology
- Simultaneous RTK positioning and heading determination
- Serial, USB, CAN and Ethernet connectivity
- 8GB internal memory
MR-2 Modular GNSS Receiver Specifications
GNSS Tracking
- Number of Channels: 226 channels with universal tracking
- Signals Tracked
- GPS: L1 C/A, L1C, L1P(Y), L2P(Y), L2C, L5
- GLONASS: L1 C/A, L1P, L2 C/A, L2P, L3C
- Galileo: E1, E5a, E5b, E5AltBoc
- BeiDou: B1, B2
- SBAS Corrections: WAA
- Antenna connector: 2x TNC (Antenna power 4.75-5.10 VDC)
Accuracy
- RTK (L1+L2)
- H: 5 mm + 0.5ppm (x baseline length)
- V: 10 mm + 0.8ppm (x baseline length)
- Fast Static (L1+L2)
- H: 3 mm + 0.5ppm (x baseline length) (x baseline length)
- V: 5 mm + 0.8ppm (x baseline length)
- DGPS: H: 0.3m, V: 0.5m
- SBAS: H: 0.8m, V: 1.2m
- Heading: Heading 0.3º/D, where D is the inter-antenna distance in meters
- Inclination: 0.2º/D (Where D is the inter-antenna distance in meters)
- Velocity: 0.02 m/sec
- Time: 30 nsec
Data
- Internal: Up to 8GB for each B125 board
- Real Time Data Output: Proprietary TPS format, RTCM SC 104 ver. 2.x, 3.0, and 3.1; CMR/CMR+; MSM; NMEA 0183 version 2.x, 3.0 and 3.01
- Heading: Yes
Communications
- Interface: Ethernet (10BASE-TX/100BASE-T) 10 Mbps/100 Mbps TCP/IP TCP Server/Client, FTP Server/Client, DNS server, NTRIP Server/Client
- Antenna connector: 2x TNC (VDC at 0-100 mA)
- Ports: Deutsch DTM Series 12-pin, Receptacle for power and communications, Serial (x3), CAN and PPS on main connector, Turck M12 8-Pin, Breaks out to RJ45 and SAE power
- LED Grade Indicators: Power, Ethernet, Primary Antenna, Secondary Antenna
Physical and Environmental
- Operating Temperature: -40º C to 75º C
- Storage Temperature: -50º C to 85º C
- Enclosure: Aluminum alloy
- Waterproof: IPX7 (1 meter submersion)
- Dust/Water Protection: IP6X (fully dust proof)
- Humidity: 100% condensing per Msp-PDA-012 class B, ref MRII-143
Power and Electrical
- Input Voltage: 9 to 36 VDC. Reverse Polarity Protected
- Power Consumption: 10 watts @ 9-36 VDC
- Dimensions: 172 (w) x 166 (d) x 49 (h)
- Weight: 0.95 kg
Display
- Power LED, Ethernet, Primary Antenna, Secondary Antenna
