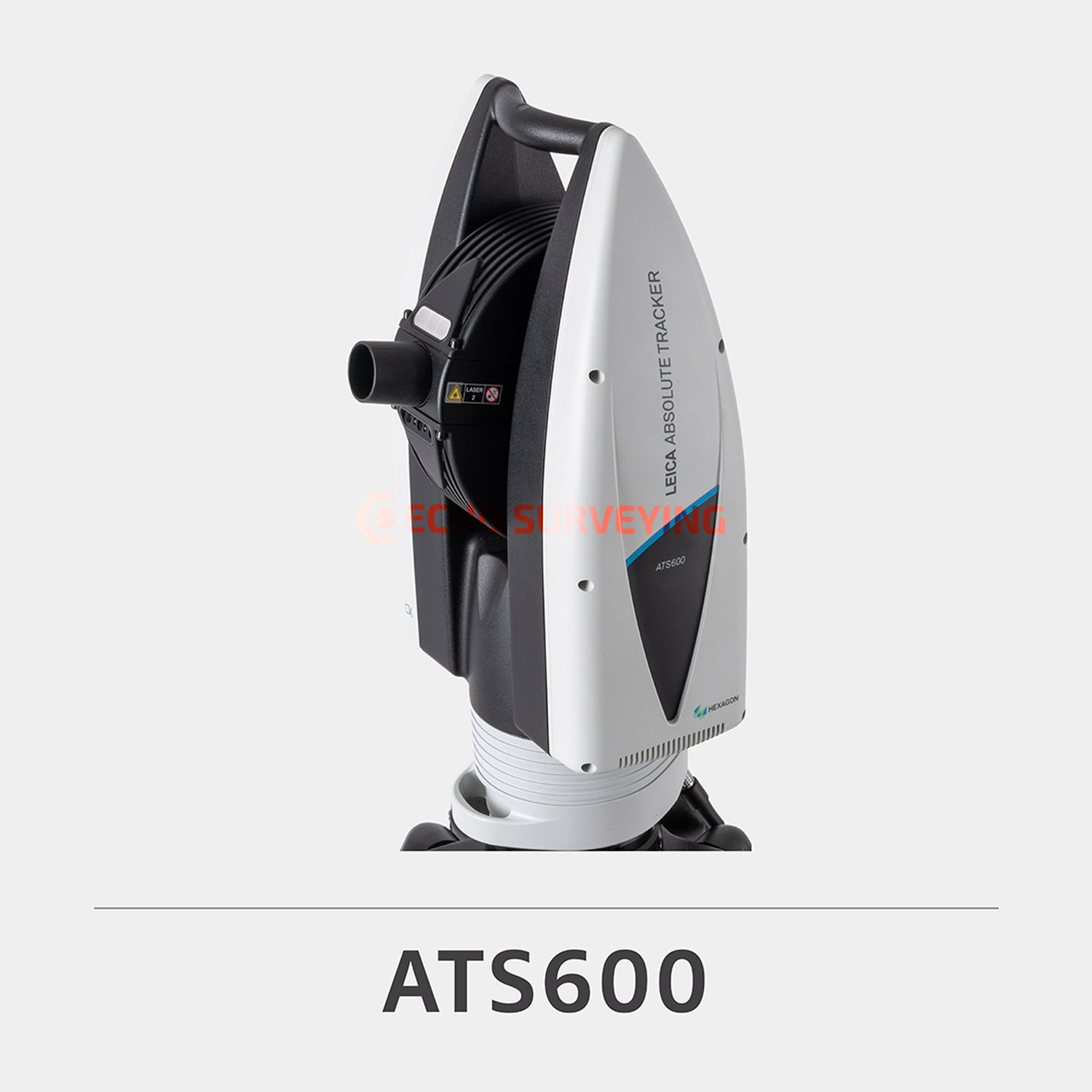

Leica Absolute Tracker ATS600

Ready sale Leica Absolute Tracker ATS600, fast, accurate, and contactless large-scale scanning. Simplify your workflows and measure complex surfaces with unmatched precision.

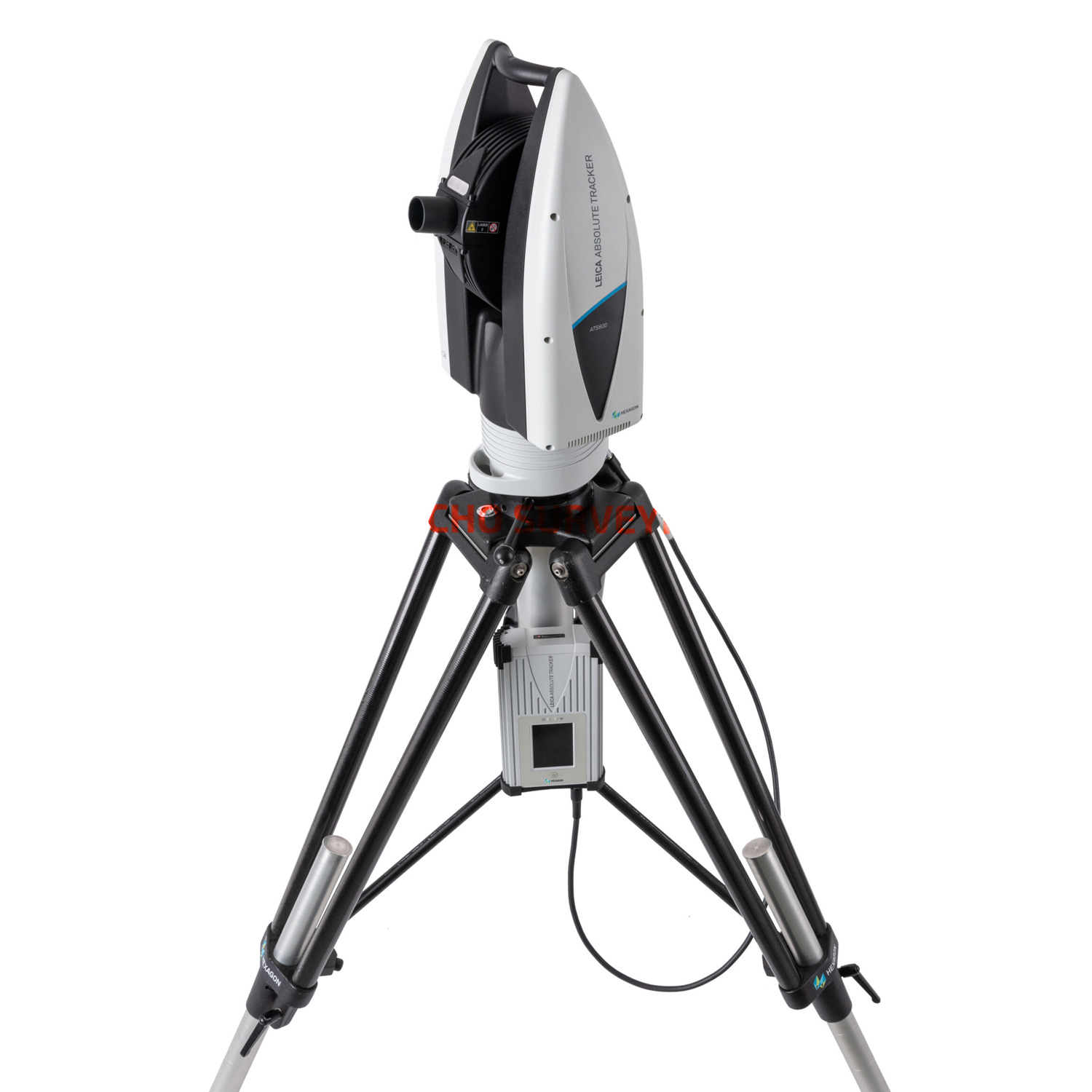

The Leica Absolute Tracker ATS600 accurately locates a point in 3D space with metrology-grade accuracy without a reflector, based on Wave-Form Digitizer technology, the ATS600 is powered by the first-ever Scanning Absolute Distance Meter, locating points within 300 microns from up to 60 meters away. The ATS600 quickly produces a measurement grid by measuring points across a user-definable area. The point-grid density is customizable, balancing speed and detail in your metrology software. With the ATS600, objects previously difficult to digitize can be quickly analyzed in 3D by a single operator. This direct scanning laser tracker expands productive quality control into new areas of production.

Leica ATS600: Cutting-edge Technology for Precise Measurements

The Leica ATS600 Absolute Tracker incorporates cutting-edge technology to ensure precise and reliable measurements in demanding industrial environments. Its advanced object tracking system allows for effortless data capture, even in adverse conditions. Thanks to its ability to measure distances of up to 160 meters without the need for reflectors, the ATS600 surpasses the limitations of conventional systems and provides high-precision results in real-time.

Manufacturers are increasingly interested in digital measurement of precise points and in the inspection of large parts and surfaces that are simply beyond the reach of a traditional handheld 3D laser scanner, tactile sensor, or reflector. The Leica Absolute Tracker ATS600 is ready to meet the challenges of these new applications with a unique working principle that can precisely locate a point in 3D space with metrological-grade accuracy without the need for a reflector at the measurement point.

Based on the renowned Wave-Form Digitiser technology behind several of the most advanced measurement tools, the ATS600 relies on the first absolute scanning distancer, a metrological-grade iteration that can locate a point with 300 microns accuracy at a distance of up to 60 meters.

By measuring a series of such points within a user-defined measurement area, the ATS600 can quickly produce a measurement grid that defines the surface to be measured. The density of that grid can also be customized, giving the operator full control over the balance between process speed and the level of detail that will feed into their metrology software.

With the Leica Absolute Tracker ATS600, objects that previously required a significant investment of time to digitize or were beyond the realistic possibility of efficient measurement can be quickly incorporated into the world of 3D analysis by a single operator. With the world’s first ‘direct scanning laser tracker,’ productive quality control is poised to expand into entirely new areas of production, driven by a fundamental change in how we conceive 3D measurement.

The ATS600 also offers many of the familiar features of the rest of our Absolute Tracker range, including reflector measurement at distances of up to 80 meters, with full PowerLock capability. By combining reflector measurement and direct scanning capabilities, full functionality is provided for large-scale measurement tasks, as the scanning quickly describes surfaces and individual reflector readings are used for alignment and entity definition.

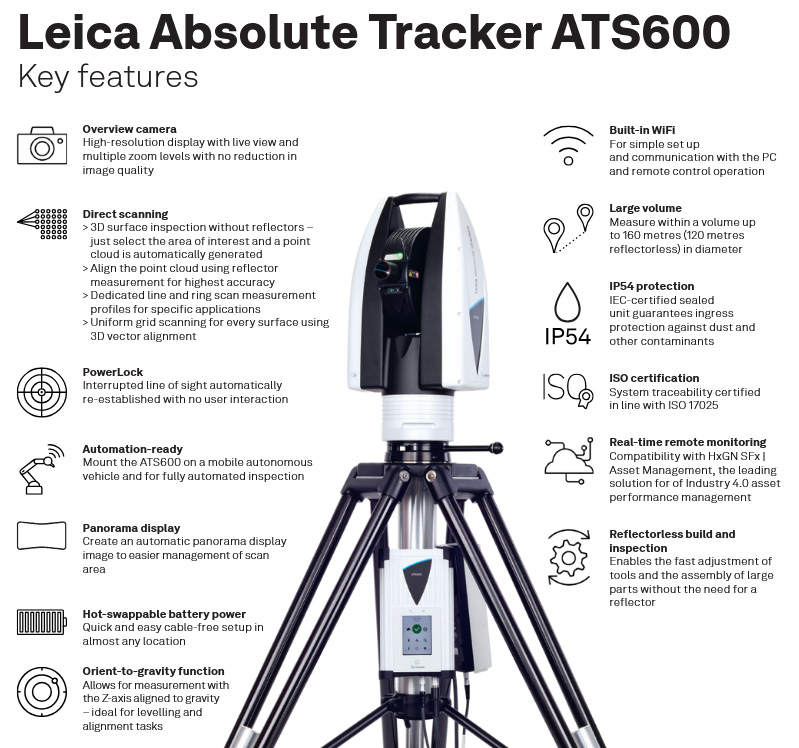

ATS600 Features and Benefits

• The Scanning Absolute Distance Meter (ADM): The ATS600’s Scanning ADM helps you to accurately measure points in 3D space with or without a reflector. This allows single-point laser tracker measurements and surface digitisation from up to 60 metres away, achieving flexible and contactless measurement.
• Variable point density: Customise the density of the surface measurement grid to balance speed and data quality. This gives you full control over the level of detail required for your application, improving efficiency without compromising accuracy.
• Selective scanning: Focus only on the areas you need to measure by defining the target area with the integrated Overview Camera or CAD data. This eliminates unnecessary data collection and simplifies the scanning process.
• Operator independence: No target or operator is needed at the measurement point, reducing costs and making the ATS600 ideal for automated processes. Its fully independent operation streamlines workflows and improves efficiency.
• Metrology workflow: The ATS600 works seamlessly with all standard metrology software, integrating into your existing workflows for easy data analysis and processing.
• PowerLock: The PowerLock function automatically re-establishes an interrupted line-of-sight during reflector measurements, ensuring continuous tracking without you having to interact with it.
• Combined measurement: Combine direct scanning for surfaces and reflector measurements for features in the same process. This dual capability gives you accuracy with the flexibility for large-scale inspections and assembly tasks.
• Battery power: Hot-swappable battery power makes the ATS600 portable and cable-free, permitting you a quick setup in any location, which is perfect for large-scale worksites.
• WiFi connectivity: Built-in WiFi adds to the portability of the ATS600, enabling easy control and operation by a single user without additional equipment
• IP54 certified: The ATS600’s IP54-certified sealed design protects against dust and contaminants, ensuring reliable performance in harsh environments.
• MeteoStation: An integrated environmental monitor records temperature, pressure, and humidity, ensuring accurate measurements even in challenging conditions
• Orient to Gravity (OTG): The OTG function aligns the Z-axis to gravity, making it ideal for levelling and alignment tasks like building and inspecting tool and jig fixtures.
• All-in-one design: Weighing less than 15 kilograms, the ATS600 is highly portable and securely fits into a single small flight case, making it easy to transport.
