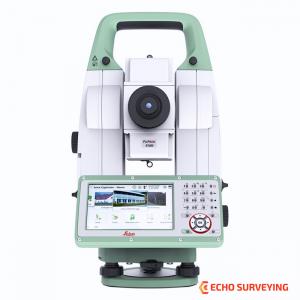

  • Leica-TS13-1-R1000-Total-Station

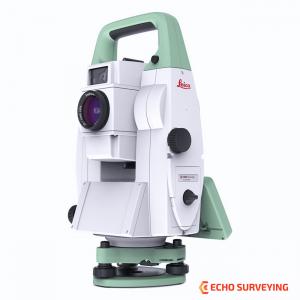

  • Leica-TS13-1-R1000-Sale

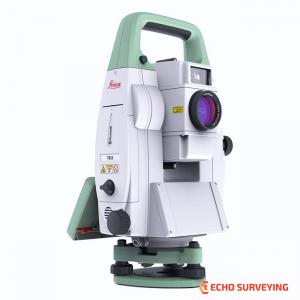

  • Leica-TS13-1-Accuracy-R1000-EDM

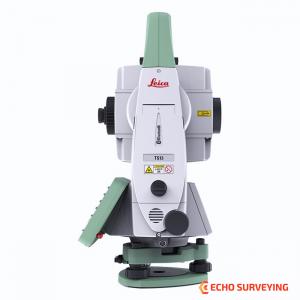

  • Leica-TS13-1-R1000-Price

Leica TS13 1" R1000 Robotic Total Station

$13500

Leica TS13 1” Sale, Robotic, Reflectorless R1000 EDM, Leica CS20 field controller Leica Captivate field software, brand new 2 Year Warranty

Leica TS13 1" R1000 Robotic Total Station description

Leica TS13 1” Sale, Robotic, Reflectorless R1000 EDM, Leica CS20 field controller Leica Captivate field software, brand new 2 Year Warranty

Leica TS13 1” R1000 sale includes:

  • Leica TS13 1” (0.3mgon) R1000 Total Station with Automatic Target Recognition, Reflectorless R1000 EDM, Electronic guide light EGL, WLAN, Bluetooth, RS232 interface, SpeedSearch, RadioHandle interface.
  • USB stick/SD card interface, 2GB eMMC Flash Memory, 1GB SDRAM
  • Laser plummet
  • 4 button keyboard
  • Quick guide
  • Container
  • 2 year warranty TS13 + CS20 Basic CCP

The Leica TS13 is a mid-range robotic total station. It is a scalable robotic total station, powered by Leica Captivate field software and can be connected to a Leica CS20 field controller. It can be upgraded at any time to benefit from additional functionalities.

Accuracies Options:

  • 870382 Leica TS13 5” R500 Total Station
  • 870381 Leica TS13 3” R500 Total Station
  • 870380 Leica TS13 2” R500 Total Station
  • 870379 Leica TS13 1” R500 Total Station
  • 870378 Leica TS13 5” R1000 Total Station
  • 870377 Leica TS13 3” R1000 Total Station
  • 870376 Leica TS13 2” R1000 Total Station
  • 870375 Leica TS13 1” R1000 Total Station

Accessories Options:

  • 870391 GTS45 (keyboard/display
  • 870392 TOP1- enables prism lock
  • 870393 TOP2 - SpeedSEarch and Robotic
  • 827646 Leica Captivate Measure & StakeOut

Package includes:

  • Leica TS13 5” R500, total station with ATR
  • TOP1, TS13 prism lock option
  • TOP2, TS13 robotic option
  • GDF311 Tribrach without optical plummet
  • GST101 Wooden tripod w/ shoulder strap
  • GLS11 reflector pole
  • Height meter GHM007 with holder GHT196
  • GEB221 Battery int. Li-Ion 7.4V/4400mAh
  • GKL311 single Charger Prof 3000
  • CS20 3.75G Field Controller
  • Leica Captivate Measure & Stakeout CS20
  • GEB331 Battery int Li-Ion 11.1V/2800mAh
  • MSD1000, SD memory card 1GB
  • GVP724 TS Robotic Container
  • GRZ4 360° Reflector
  • GHT63 Pole clamp for attaching GHT
  • GHT66 Holder plate for CS20 controller
  • RH17, Bluetooth RadioHandle
  • 1-year TS13+CS20 Basic CCP
LEICA TS13 TECHNICAL SPESIFICATION

Basic variant

Leica TS13 Mid-Range Robotic Total Station

Angular Measurement
Accuracy 1 Hz and V Absolute, continuous, diametrical 1” (0.3 mgon), 2” (0.6 mgon), 3” (1 mgon), 5” (1.5 mgon)
Distance Measurement
Range 2 Prism (GPR1, GPH1P) 3
Non-Prism / Any surface 4
1.5 m to 3500 m
R500: 1.5 m to >500 m, R1000: 1.5 m to >1000 m
Accuracy / Measurement time Single (prism) 2,5
Single (any surface) 2,4,5,6
1 mm + 1.5 ppm / Typically 2.4 s
2 mm + 2 ppm / Typically 3 s
Laser dot size At 50 m 8 mm x 20 mm
Measurement technology System analyser Coaxial, visible red laser
Automatic Aiming- ATR Automatic
Target aiming range2 Circular prism (GPR1, GPH1P)
360° prism (GRZ4, GRZ122)
1000 m
800 m
Accuracy 1,2 / Measurement time ATR angle accuracy Hz, V 1” (0.3 mgon), 2” (0.6 mgon), 3” (1 mgon),
5” (1.5 mgon) / Typically 3-4 s
Guide Liht (EGL)
Working range / Accuracy   5 - 150 m / Typically 5 cm @ 100 m
General
Processor TI OMAP4430 1GHz Dual-core ARM®
Cortex™ A9 MPCore™
Operating system – Windows® EC7
Power management Exchangeable Lithium-Ion battery Operating time 8 - 10 h
Field software Leica Captivate incl. apps Running on field controller (Leica CS20)
Data storage Internal memory 2 GB
SD card 1 GB or 8 GB
On field controller (Leica CS20)
Interfaces RS232, USB, Bluetooth®, WLAN
Weight Total station including battery 5.0 kg
Environmental specifications Working temperature range
Dust / Water (IEC 60529) / Humidity
–20°C to +50°C
IP55 / 95%, non-condensing
Keyboard Face I standard 4 button keyboard with status LEDs

Upgrades

Leica TS13 Mid-Range Robotic Total Station

Keboard Display Unit  (Optional)
Keyboard with display Face I and face II optional 5” (inch), WVGA, colour, touch
25 keys, illumination
Power management Exchangeable Lithium-Ion battery Operating time 6 - 8 h
Field software Leica Captivate including apps Running on TS13 instrument
Data storage Internal memory 2 GB
SD card 1 GB or 8 GB
On TS13 instrument
Weight Total station including battery 5.3 kg
Target Lock (Optional)
Target locking range2 Circular prism (GPR1, GPH1P)
360° prism (GRZ4, GRZ122)
800 m
600 m
Robotic Surveying including Prism Fast Search (Optional)
SpeedSearch range / Search time 360° prism (GRZ4, GRZ122) 300 m / Typically 7 s
Robotic range with long-range
Bluetooth® 8
To CS20 internal long-range Bluetooth®
To CTR20 expansion pack
500 m
1000 m

Download

Leica_TS13 Robotic Total Station Data Sheet
