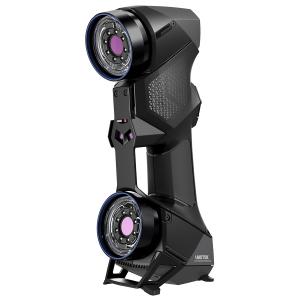

Creaform HandySCAN BLACK 3D Scanner

$34900
In Stock

Creaform HandySCAN BLACK is a high performance, metrology grade optical laser 3D scanner, the Accuracy of 0.035 mm (0.0014 in) and a scanning speed of 800,000 measurements per second

Creaform HandySCAN BLACK 3D Scanner description

Creaform HandySCAN BLACK is a high performance, metrology grade optical laser 3D scanner, the Accuracy of 0.035 mm (0.0014 in) and a scanning speed of 800,000 measurements per second can be achieved. Creaform HandySCAN BLACK is the newest generation of the HandySCAN 3D highlights multiple blue laser technology, upgraded optics, and powerful algorithms for accurate, and quick instant measurements. The Creaform HandySCAN BLACK offers accurate, high resolution and repeatable results regardless of the quality of measurement configuration, environmental changes or part movement.

The Creaform HandyScan Black sale includes the following items:

  • Creaform HandySCAN BLACK Laser scanner system
  • VXelements software suite and license key (USB key)
  • Carrying case
  • 4-Meter long custom USB cable
  • Power Supply
  • Calibration Plate
  • 2,000 reflective targets
  • 1-Year commercial warranty
  • Certification documentation (VDI/VDE 2634 Part 3 acceptance test)
  • Each scanner is delivered with a personalized certification and fully documented test results.

The HandySCAN BLACK series have the highest version HandySCAN BLACK Elite, more powerful version than standard HandySCAN BLACK, with better accuracy 0.025 mm (0.0009 in), Measurement Rate 1,300,000 per second, 11 blue laser crosses (+1 extra line).

Creaform HandySCAN BLACK main features

  • VXelements: this plug-and-play 3D scanner comes with dedicated, proprietary software that includes scan-to-CAD and dimensional inspection modules. It’s also possible to use third-party software suites from Autodesk, 3D Systems, Dassault, etc.
  • Live mesh: the 3D scanner allows for optimal visualization while scanning to make sure users can see the scan progress capture the surface needed.
  • VXremote (optional): users looking for an easy setup may opt for Creaform’s tablet interface for an additional cost.
  • MaxSHOT 3D (optional): this optical coordinate add-on provides enhanced accuracy and speed for larger parts.

The HandySCAN BLACK is a high performance, metrology grade optical laser 3D scanner. It is automatically positioned by means of positioning targets. Accuracy of 0.025 mm and a scanning speed of 1.300.000 measurements/s can be achieved. Easy to handle, it is light and compact, weighs less than 1 kg and can be conveniently transported in its safety case.

You can use the manufacturer's proprietary software called VXelements, it combines all the essential tools you need from data acquisition to CAD software, in a user-friendly, simplified and sleek working environment. This 3D scanner is also compatible with a wide range of other software. Including 3D Systems, InnovMetric Software,  Metrologic Group, New River Kinematics, Verisurf, Dassault Systèmes,  Siemens and Autodesk For help, Creaform's centres are located all around the world to provide assistance to any needs or queries customers may have.

Technical Specifications:

  HandySCAN 307 HandySCAN BLACK HandySCAN BLACK Elite
Accuracy Up to 0.040 mm
(0.0016 in)		 0.035 mm
(0.0014 in)		 0.025 mm
(0.0009 in)
Volumetric accuracy(2)
(based on part size)		 0.020 mm + 0.100 mm/m
(0.0008 in + 0.0012 in/ft)		 0.020 mm + 0.060 mm/m
(0.0008 in + 0.0007 in/ft)		 0.020 mm + 0.040 mm/m
(0.0008 in + 0.0005 in/ft)
Volumetric accuracy with
MaxSHOT Next™ | Elite(3)		 0.020 mm + 0.015 mm/m
(0.0008 in + 0.00018 in/ft)
Measurement resolution 0.100 mm
(0.0039 in)		 0.025 mm
(0.0009 in)
Mesh resolution 0.200 mm
(0.0078 in)		 0.100 mm
(0.0039 in)
Measurement rate 480,000 measurements/s 800,000 measurements/s 1,300,000 measurements/s
Light source 7 red laser crosses 7 blue laser crosses 11 blue laser crosses
(+ 1 extra line)
Laser class 2M
(eye-safe)
Scanning area 275 x 250 mm
(10.8 x 9.8 in)		 310 x 350 mm
(12.2 x 13.8 in)
Stand-off distance 300 mm
(11.8 in)
Depth of field 250 mm
(9.8 in)
Part size range (recommended) 0.1–4 m
(0.3–13 ft)		 0.05–4 m
(0.15–13 ft)
Software VXelements
Output formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software * - 3D Systems (Geomagic® Solutions)
- InnovMetric Software (PolyWorks)
- Dassault (CATIA V5 and SOLIDWORKS)
- PTC (Creo)
- Siemens (NX and Solid Edge)
- Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage)
Weight 0.85 kg
(1.9 lb)		 0.94 kg
(2.1 lb)
Dimensions
(LxWxH)		 122 x 77 x 294 mm
(4.8 x 3.0 x 11.6 in)
Connection standard 1 X USB 3.0
Operating temperature range 5-40 °C
(41-104 °F)
Operating humidity range
(non-condensing)		 10-90%
Certifications EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
Patents CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X
