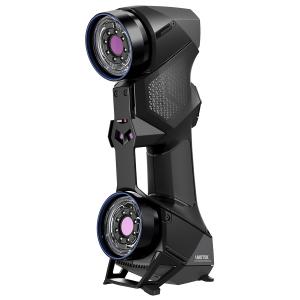

Creaform HandySCAN BLACK Elite 3D Scanner

$39500
In Stock

Creaform HandySCAN BLACK Elite, highest version of the portable metrology-grade 3D scanner, better accuracy 0.025 mm (0.0009 in), Measurement Rate 1,300,000 per second, 11 blue laser crosses (+1 extra line).

Creaform HandySCAN BLACK Elite 3D Scanner description

Creaform HandySCAN BLACK Elite is the latest generation of HandySCAN 3D features improved optics, multiple blue laser technology and powerful algorithms for faster, more accurate instant measurements. The HandySCAN BLACK Elite is the highest version of the portable metrology-grade 3D scanner, better accuracy 0.025 mm (0.0009 in), Measurement Rate 1,300,000 per second, 11 blue laser crosses (+1 extra line). Sets the standard for measurement, regardless of size, material or complexity, within seconds.

This HandyScan Black Elite sale include the following items:

  • Creaform HandySCAN BLACK Elite Laser scanner system
  • VXelements software suite and license key (USB key)
  • Carrying case
  • Four meter long custom USB cable
  • Power Supply
  • Calibration Plate
  • 2,000 reflective targets
  • Certification documentation (VDI/VDE 2634 Part 3 acceptance test)
  • Scanner is delivered with a personalized certification and fully documented test results
  • Sold as is with 1-Year commercial warranty and 30-Day money back guarantee

When accuracy meets versatility and portability

The HandySCAN 3D line-up is the reference in portable metrology?grade 3D scanner. Optimized to meet the needs of design, manufacturing and metrology professionals, the BLACK Series provides the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere. This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.

The standard version is Creaform HandySCAN BLACK with accuracy of 0.035 mm (0.0014 in) and a scanning speed of 800,000 measurements per second can be achieved. The HandySCAN BLACK, the third-generation version of Creaform’s patented metrology-grade scanner, latest generation of the HandySCAN 3D features improved optics, multiple blue laser technology and powerful algorithms for faster, more accurate instant measurements.

The HandySCAN BLACK is made for professionals who need the most effective and reliable tool on the market to capture accurate dimensional measurements of physical objects. HandySCAN BLACK combines high-performance 3D scanning with improved optics, multiple blue laser technology and a sleek, ergonomic design.

High-Performance Tools to Meet Rising Quality Standards

  • 4X resolution: Captures fine details and large volumes thanks to the unique and versatile combination of improved high-performance optics and multiple blue laser technology.
  • 3X faster measurement speed and instant mesh: Larger scanning area featuring 11 blue laser crosses that take up to 1,300,000 measurements per second, ultimately cutting down the time between acquisition and workable files.
  • More accurate and traceable measurements: Volumetric accuracy of 0.020 mm + 0.040 mm/m (0.0008 in. + 0.0005 in./ft) based on VDI/VDE 2634 part 3 as well as ISO 17025, ensuring reliability and full traceability to international standards.
  • Available in BLACK and BLACK|Elite: Customers can choose from two models based on their needs: part complexity, measurement speed, accuracy, etc.

Creaform designs, manufactures, and calibrates HandySCAN 3D scanners with the highest quality management system according to internationally recognized standards ISO 9001 and ISO 17025. The HandySCAN BLACK acceptance test is based on VDIVDE 2634 which is ISO 17025 accredited to guarantee traceability to international standards. Each scanner is delivered with a personalized certification and fully documented test results.

Technical Specifications:

  HandySCAN 307 HandySCAN BLACK HandySCAN BLACK Elite
Accuracy Up to 0.040 mm
(0.0016 in)
0.035 mm
(0.0014 in)
0.025 mm
(0.0009 in)
Volumetric accuracy(2)
(based on part size)
0.020 mm + 0.100 mm/m
(0.0008 in + 0.0012 in/ft)
0.020 mm + 0.060 mm/m
(0.0008 in + 0.0007 in/ft)
0.020 mm + 0.040 mm/m
(0.0008 in + 0.0005 in/ft)
Volumetric accuracy with
MaxSHOT Next™ | Elite(3)
0.020 mm + 0.015 mm/m
(0.0008 in + 0.00018 in/ft)
Measurement resolution 0.100 mm
(0.0039 in)
0.025 mm
(0.0009 in)
Mesh resolution 0.200 mm
(0.0078 in)
0.100 mm
(0.0039 in)
Measurement rate 480,000 measurements/s 800,000 measurements/s 1,300,000 measurements/s
Light source 7 red laser crosses 7 blue laser crosses 11 blue laser crosses
(+ 1 extra line)
Laser class 2M
(eye-safe)
Scanning area 275 x 250 mm
(10.8 x 9.8 in)
310 x 350 mm
(12.2 x 13.8 in)
Stand-off distance 300 mm
(11.8 in)
Depth of field 250 mm
(9.8 in)
Part size range (recommended) 0.1–4 m
(0.3–13 ft)
0.05–4 m
(0.15–13 ft)
Software VXelements
Output formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software * - 3D Systems (Geomagic® Solutions)
- InnovMetric Software (PolyWorks)
- Dassault (CATIA V5 and SOLIDWORKS)
- PTC (Creo)
- Siemens (NX and Solid Edge)
- Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage)
Weight 0.85 kg
(1.9 lb)
0.94 kg
(2.1 lb)
Dimensions
(LxWxH)
122 x 77 x 294 mm
(4.8 x 3.0 x 11.6 in)

Connection standard 1 X USB 3.0
Operating temperature range 5-40 °C
(41-104 °F)
Operating humidity range
(non-condensing)
10-90%
Certifications EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE
Patents CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X
