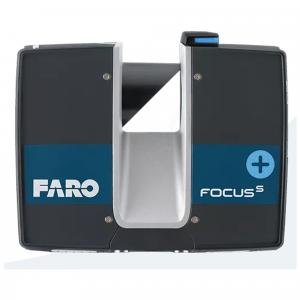

FARO Focus S150 Plus Laser Scanner

$0
In Stock

FARO Focus S150 Plus Laser Scanner with EXTRA SPEED, speeds with up to 2 million scan points per second

FARO Focus S150 Plus Laser Scanner description

FARO FocusS Plus series with EXTRA SPEED, the new models FocusS 150 Plus with several features have been reviewed and improved to make data capture easier for the user. Experience maximum measurement speeds with up to 2 million scan points per second!

Key benefits of the new FocusS Plus series

  • More efficient scanning process thanks to faster and more reliable on-site registration
  • Display of the scan progress thanks to status indicator
  • Tolerance control of the results at the touch of a button
  • Reliable data thanks to reduced noise

The FocusS Laser Scanner series offers advanced functionality. In addition to increased distance, angular accuracy, and range, the FocusS Plus scanners’ on-site compensation function ensures high-quality measurements, while external accessory bays and HDR functionality make the scanner extremely flexible. New long and medium range 3D laser scanners, with the new models FARO FocusS 150 Plus and FARO FocusS 350 Plus from FARO, several features have been reviewed and improved to make data capture easier for the user. Experience maximum measurement speeds with up to 2 million scan points per second!

Laser Scanners for Short, Medium and Long Range Applications

FARO Focus Laser Scanners are specifically designed for both indoor and outdoor measurements in industries such as Architecture, Engineering, Construction, Public Safety and Forensics or Product Design. All devices capture real world information used in the digital world to analyze, collaborate and execute decisions to improve and maintain the overall project and product quality.

The Focus S Laser Scanner series offers advanced functionality. In addition to increased distance, angular accuracy, and range, the Focus S and Focus S Plus scanners’ on-site compensation function ensures high-quality measurements, while external accessory bays and HDR functionality make the scanner extremely flexible.

The FocusS 150 Plus is a mid-range device offering precise scanning up to 150m. With their sealed design, both models are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. The devices are built to safeguard against intrusions such as dirt, dust, fog and rain as well as other outdoor elements which typically occur in challenging scanning conditions. An addition the two laser scanners offer a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.

Features

  • Accuracy: Highest accuracy and range by using a combination of the most advanced sensor technologies
  • Rescanning of Distant Targets: The Scan Group feature identifies multiple areas to be rescanned with higher resolution to either perform accurate target detection or to capture smaller areas of interest with greater detail
  • IP Rating 54 and Extended Temperature Range: With the sealed design and certified with the industry standard
  • Ingress Protection (IP) Rating, IP54, the Focus can be used in wet weather conditions at temperatures from -20°C to 55°C8
  • Compact and Portable: Focus Laser Scanners are the smallest and lightest devices in their performance class
  • On-Site Compensation: With the on-site compensation functionality, users can verify and adjust the Focus S compensation immediately before scanning, ensuring high-quality scan data and traceable documentation
  • On-Site Registration: During on-site data capture, the laser scanner immediately transmits scan data wirelessly to FARO SCENE for real-time scan processing and registration, providing efficiency and time savings

Benefits

  • Confidence in documented data-quality by traceable calibration and market-leading on-site compensation
  • Scan in challenging environments while providing protection from dust, debris and water splashes. Mount the Focus S scanner in an inverted position, such as under a ceiling of a hall
  • The Focus Laser Scanner portfolio offers the most economic 3Dscanning solution for all requirements and budgets
  • Minimum training effort is ensured by the intuitive and easy to operate touch-screen interface as well as hands-on and online tutorials
  • Efficient integration into existing software infrastructures and workflows are provided by interfaces to various standard CAD systems



FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS

  FARO FocusS Plus 350 FARO FocusS Plus 150 FARO FocusS 350 FARO FocusS 150 FARO FocusS 70 FARO FocuS M70
Ranging Unit
Unambiguity Interval 614m for up to 0.5 mil pts/sec
307m at 1 mil pts/sec
153m at 2 mil pts/sec
614m for up to 0.5 mil pts/sec
307m at 1 mil pts/sec
614m for up to
0.5 mil pts/sec
Range
90% Reflectivity (white) 0.6-350m 0.6-150m 0.6-350m 0.6-150m 0.6-70m 0.6-70m
10% Reflectivity (dark-gray) 0.6-150m 0.6-150m 0.6-150m 0.6-150m 0.6-70m 0.6-70m
2% Reflectivity (black) 0.6-50m 0.6-50m 0.6-50m 0.6-50m 0.6-50m 0.6-750m
Range Noise
@10m 90% (white) 0.1 0.3 0.7
@10m 10% (dark-gray) 0.3 0.4 0.8
@10m 2% (black) 0.9 1.3 1.5
@25m 90% (white) 0.2 0.3 0.7
@25m 10% (dark-gray 0.5 0.5 0.8
@25m 2% (black) 1.6 2.0 2.1
Max. Measurement Speed (mil. pts/sec) Up to 2   Up to 1     Up to 0.5
Ranging Error³ (mm) ±1 ±3
Angular Accuracy? 19 arcsec for vertical/horizontal angles not specified
3D Point Accuracy 2 @10m 3.5 @25m 2 @10m 3.5 @25m not specified



ADDITIONAL PERFORMANCE SPECIFICATIONS
Color Unit
Color Resolution Up to 165-megapixel color
HDR Camera Exposure bracketing 2x, 3x, 5x
Parralax Minimized due to co-axial design
Deflection Unit
Field of View 300°vertical? / 360° horizontal
Step Size 0.009 (40,960 3D-pixel on 360°)
vertical / 0.009 (40,960 3D-pixel
on 360°) horizontal
Max. Scan Speed 97Hz (vertical)
Laser (Optical Transmitter)
Laser Class Laser Class 1
Wavelength 1550nm
Beam Divergence 0.3mrad (1/e)
Beam Diameter at Exit 2.12mm (1/e)
Data Handling and Control)
Data Storage SDHC, SDXC, 32GB; max. 512GB card
Scanner Control Via touch screen display and WLAN connection, Access by mobile devices with HTML5
Interface Connection
WLAN 802.11n (150Mbit/s), as access point or client in existing networks



ADDITIONAL FEATURES
Dual Axis Compensator Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2
Height Sensor Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan
Compass The electronic compass gives the scan an orientation
GNSS Integrated GPS & GLONASS
On-Site Compensation Creates current quality report and improves compensation automatically
Accessory Bay* The accessory bay connects versatile accessories to the scanner
Inverse Mounting Yes
Real-time, On-site Registration in SCENE Connects to SCENE, real-time scan processing and registration, overview map
Electronic Automation Interface Available as option, only at point of sale
Digital Hash Function Scans are cryptographically hashed and signed by the scanner
Rescanning of Distant Targets Defined areas recaptured in higher resolution at a greater distance
Retake Photos Select individual photographs with unwanted objects and retake them



GENERAL SPECIFICATIONS
Power Supply 19V (external supply), 14.4V (internal battery)
Power Consumption 15W idle, 25W scanning, 80W charging
Battery Service Life 4.5 hours
Temperature Operating: 5° - 40° C | Extended Operating?: -20° - 55° C | Storage: -10°- 60°C
Ingress Protection (IP) Rating Class IP54
Humidity Resistance Non-condensing
Weight 4.2 kg (including battery)
Size/Dimensions 230 x 183 x 103mm
Maintenance / Calibration Recommended annual
