Used FARO Focus M70 Laser Scanner

$10000

For sale pre-owned FARO Focus M70 Laser Scanner, year 2018 still like new, low hours 120 scans

Used FARO Focus M70 Laser Scanner description

For sale pre-owned FARO Focus M70 Laser Scanner, year 2018 still like new, low hours 120 scans, well taken care by the owner, careful handling, recently tested, serviced and calibrater by FARO authorized, software upgraded and 1-year extended warranty

This used FARO Focus M70 is ready to working to scan condition on arrival, no need to recalibrate, FARO SCENE software License, Carbon Fiber Tripod and extra battery included

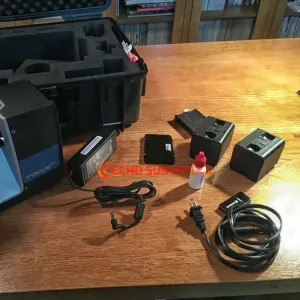

Package includes:

FARO FocusM 70 Laser Scanner with HDR photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, IP rating 54
FARO SCENE software License
Battery Power Block, Battery Power Dock, 90W Power Supply
Extra Battery
32GB SD Card, SD Card Reader, SD Card Cover
Allen Wrench
Rugged Transport Case
Calibration Certificate
Quick Start Guide

The FARO Focus M 70 Laser Scanner is a powerful 3D laser scanner specifically designed for both indoor and outdoor applications that require scanning up to 70 metres.

The ultra-portable device enables fast, straight-forward and accurate measurements of small construction sites, small-scale facades, complex structures, production and supply facilities and manageable crime and accident scenes. Combining professional grade scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data.

The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.

The FARO Laser Scanner M 70 is equipped with recognisable features from FARO’s most popular, compact lightweight and intuitive laser scanner product line.

Features & Benefits

Range: 0.6 – 70m
High Dynamic Range (HDR) Exposure Bracketing 2x, 3x 5x
Measurement Speed: up to 488,000 points/second
Ranging Error: ±3mm
Sealed Design – Ingress Protection (IP) Rating Class 54
On-site Compensation
Integrated GNNS and GLONASS
Field of View (vertical³/Horizontal): 360?/360?
Max. Vertical Scan Speed: 97Hz
Laser Class: Laser Class 1
Weight: 4.2kg
Size: 230 x 183 x 103mm

Technical Specifications:

Ranging unit
Range Focus M 70:	0.6m - 70m 90% (white) 0.6m - 70m 10% (dark-gray) 0.6m - 50m 2% (black)
Measurement speed (pts/sec):	122,000 / 244,000 / 488,000
Ranging error	±3mm
Colour unit
Resolution:	Up to 165 megapixel color
High Dynamic Range (HDR)	Exposure Bracketing 2x, 3x, 5x
Parallax:	Minimized due to co-axial design
Deflection unit
Field of view (vertical/horizontal):	300° / 360°
Step size (vertical/horizontal):	0,009° (40,960 3D-Pixel on 360°) / 0,009° (40,960 3D-Pixel on 360°)
Max. vertical scan speed:	97Hz
Laser (optical transmitter)
Laser class:	Laser class 1
Wavelength:	1550nm
Beam divergence:	0.3mrad (1/e)
Beam diameter at exit:	2.12mm (1/e)
Data handling and control
Data storage:	SD, SDHC™, SDXC™; 32GB card
Scanner control:	Via touchscreen display and WLAN
Integrated Sensors
Dual axis compensator:	Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2°
Height sensor:	The height relative to a fixed point can be detected and added to a scan via electronic barometer
Compass:	The electronic compass gives the scan an orientation.
GNSS:	Integrated GPS & GLONASS
General
Power supply voltage:	19V (external supply) 14.4V (internal battery)
Power consumption:	15W idle, 25W scanning, 80W charging
Battery life:	4.5 hours
Ambient temperature:	5° - 40°C
Humidity:	Non-condensing
Weight:	4.2kg
Size:	230 x 183 x 103mm
Maintenance / calibration:	Annual
