Used Leica P40 ScanStation Laser Scanner

$19500
In Stock

Used Leica P40 for sale, Cyclone REGISTER Permanent License, Calibrated, year 2016 still like new, mint condition, low hours of 3d scan used

Used Leica P40 ScanStation Laser Scanner description

Used Leica P40 ScanStation for sale, Cyclone REGISTER & PUBLISHER Pro Permanent License, Calibrated, ready to working condition

Lightly used year 2016, like new, mint condition, low hours of 3d scan used. This unit is loaded with the latest firmware version and ready to go to working condition

This used Leica P40 ScanStation sale includes:

  • Leica P40 ScanStation Laser Scanner
  • Leica Cyclone REGISTER Permanent License
  • Leica Cyclone PUBLISHER Pro Permanent License

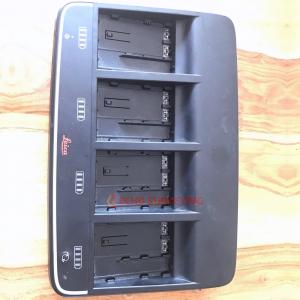

  • 4x GKL341 Fold Battery Charger
  • 4x GEB242 Rechargeable batteries
  • Heavy duty Tripod, Tripod star, Tripod car
  • 4x Leica target boards 4 inch set with transport bag

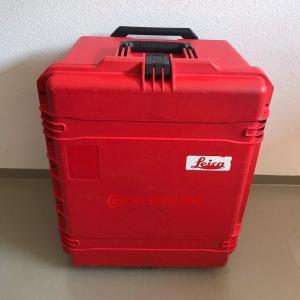

  • Leica Carrying case

Leica ScanStation P40 High-Definition 3D Laser Scanning Solution

Leica ScanStation P-Series 3D laser scanners are your perfect partner when capturing 3D geometry of civil infrastructure, creating an as-built representation of a large industry complex, reconstructing a crime scene or generating 3D data for integration into Building Information Modelling (BIM). As part of the Leica Geosystems 3D Reality Capture solution, the Cyclone FIELD 360 app now links the 3D data acquisition in the field with the ScanStation P-Series laser scanner and final data registration in the office with Cyclone REGISTER 360. One-site, users can now automatically capture, register and examine scan and image data.

Leica ScanStation P30/P40 deliver highest quality 3D data and High-Dynamic Range (HDR) imaging at an extremely fast scan rate of 1 million points per second at ranges of up to 270m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity. Delivering highest quality 3D data and HDR imaging at an extremely fast scan rate of 1 mio points per second at ranges of up to 270 m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D colour point clouds mapped in realistic clarity.

Reducing downtime, the extremely durable 3D laser scanners perform even under the toughest environmental conditions, such as extreme temperatures ranging from – 20°C to + 50°C and comply with the IP54 rating for dust and water resistance.

Leica Geosystems complete laser scanning solution offers the Leica ScanStation portfolio as an integrated part of a complete scanning solution including hardware, software, service, training and support. 3D laser scanner data can be processed in the industry’s leading 3D point cloud software suite, which consists of Leica Cyclone stand-alone software, Leica CloudWorx plug-in tools for CAD systems and the free Leica TruView.

The right choice

Whether you need a detailed as-built representation of a façade, a 2D floor plan, 3D data for integration into Building Information Modelling (BIM), capturing 3D geometry of roads, rails, tunnels and bridges or high-definition scan data for topographic maps and as-built surveys, you know you’ll need an accurate long range scanning tool for your projects – the ScanStation P30/P40 laser scanners from Leica Geosystems are the right choice, because every detail matters.



High performance

Reducing downtime, the extremely durable 3D laser scanners perform even under the toughest environmental conditions, such as extreme temperatures ranging from – 20°C to + 50°C and comply with the IP54 rating for dust and water resistance.

Leica Geosystems P40 3D laser scanners deliver:

  • Highest quality 3D data and HDR imaging
  • Extremely high speed scan rate of 1 mio points per second
  • Ranges of up to 270 m
  • Low range noise
  • Survey-grade dual-axis compensation
  • Highly detailed 3D colour point clouds mapped in realistic clarity



Complete scanning solution

Leica Geosystems offers the Leica ScanStation portfolio as an integrated part of a complete scanning solution including hardware, software, service, training and support. 3D laser scanner data can be processed in the industry’s leading 3D point cloud software suite, which consists of Leica Cyclone stand-alone software, Leica CloudWorx plug-in tools for CAD systems and the free Leica TruView.



LEICA SCANSTATION P40 PRODUCT SPECIFICATION

SYSTEM ACCURACY
Accuracy of single measurement
Range accuracy 1.2 mm + 10 ppm over full range
Angular accuracy 8” horizontal; 8” vertical
3D position accuracy 3 mm at 50 m; 6 mm at 100 m
Target acquisition ** 2 mm standard deviation at 50 m
Dual-axis compensator Liquid sensor with real-time onboard compensation,
selectable on/off, resolution 1”, dynamic range ± 5',
accuracy 1.5”
DISTANCE MEASUREMENT SYSTEM
Type Ultra-high speed time-of-flight enhanced by Waveform
Digitising (WFD) technology
Wavelength 1550 nm (invisible) / 658 nm (visible)
Laser class 1 (in accordance with IEC 60825:2014)
Beam divergence < 0.23 mrad (FWHM, full angle)
Beam diameter at front window ≤3.5 mm (FWHM)
Range and reflectivity Minimum range 0.4 m
Maximum range at reflectivity
        120 m 180 m 270 m
P30 18        %          – –
P40 8%      18%      34 %
Scan rate Up to 1,000,000 points per second
Range noise  0.4 mm rms at 10 m
0.5 mm rms at 50 m
Field-of-View
Horizontal
Vertical
360°
290°
Data storage capacity 256 GB internal solid-state drive (SSD) or external USB device
Communications/Data transfer Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device
Onboard display Touchscreen control with stylus, full colour VGA graphic display (640 × 480 pixels)
Laser plummet Laser class 1 (IEC 60825:2014)
Centring accuracy: 1.5 mm at 1.5 m
Laser dot diameter: 2.5 mm at 1.5 m
Selectable ON/OFF
IMAGING SYSTEM
Internal camera
Resolution 4 MP per each 17° × 17° colour image; 700 MP for panoramic image
Pixel size Video 2.2 µm Streaming video with zoom; auto-adjusts to ambient lighting
White balancing HDR Sunny, cloudy, warm light, cold light, custom Tonemapped / full range
External camera Canon EOS 60D/70D/80D/90D supported
POWER
Power supply 24 V DC, 100 – 240 V AC
Battery type 2× Internal: Li-Ion; External: Li-Ion (connect via external port, simultaneous use, hot swappable)
Duration Internal > 5.5 h (2 batteries)
External > 7.5 h (room temp.)
ENVIRONMENTAL
Operating temperature –20°C to +50°C / –4°F to +122°F
Storage temperature –40°C to +70°C / –40°F to +158°F
Humidity 95 %, non-condensing
Dust/Water Solid particle/liquid ingress protection IP54 (IEC 60529)
PHYSICAL
Scanner
Dimensions  (D × W × H)
Weight
238 mm × 358 mm × 395 mm / 9.4”× 14.1”× 15.6”
12.25 kg / 27.0 lbs, nominal (w/o batteries)
Battery (internal)
Dimensions  (D × W × H)
Weight
40 mm × 72 mm × 77 mm / 1.6”× 2.8”× 3.0”
0.4 kg  /  0.9 lbs
Mounting Upright or inverted
CONTROL OPTIONS
Full colour touchscreen for onboard scan control.
Remote control: Leica CS10/CS15/CS20/CS35 controller or any other remote desktop
capable device, including iPad, iPhone and other SmartPhones; external simulator.
Leica Cyclone FIELD 360 with tablet and SmartPhone (iOS and Android).
Leica Cyclone FIELDWORX with Windows® Surface table
FUNCTIONALITY
Survey workflows and
onboard registration
Quick orientation, Set azimuth, Known backsight,
Resection (4 and 6 parameters), Traverse
Check & Adjust Field procedure for checking of angular parameters, tilt
compensator and range offset
Onboard target acquisition Target selection from video, scan or red laser beam
Onboard user interface Switchable from standard to advanced
One button scan control Scanner operation with one button concept
Scan area definition Scan area selection from video or scan; batch job
scanning
Double scan Automatic removal of point cloud noise introduced by
moving objects
