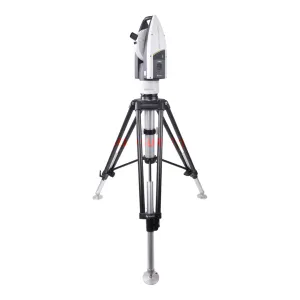

Ready for sale Leica AT500 Absolute Tracker, Full System Complete Kit with B-Probe, Metrology software license, Accessories, Full 2 year Hexagon warranty and guaranteed ten years of serviceability.

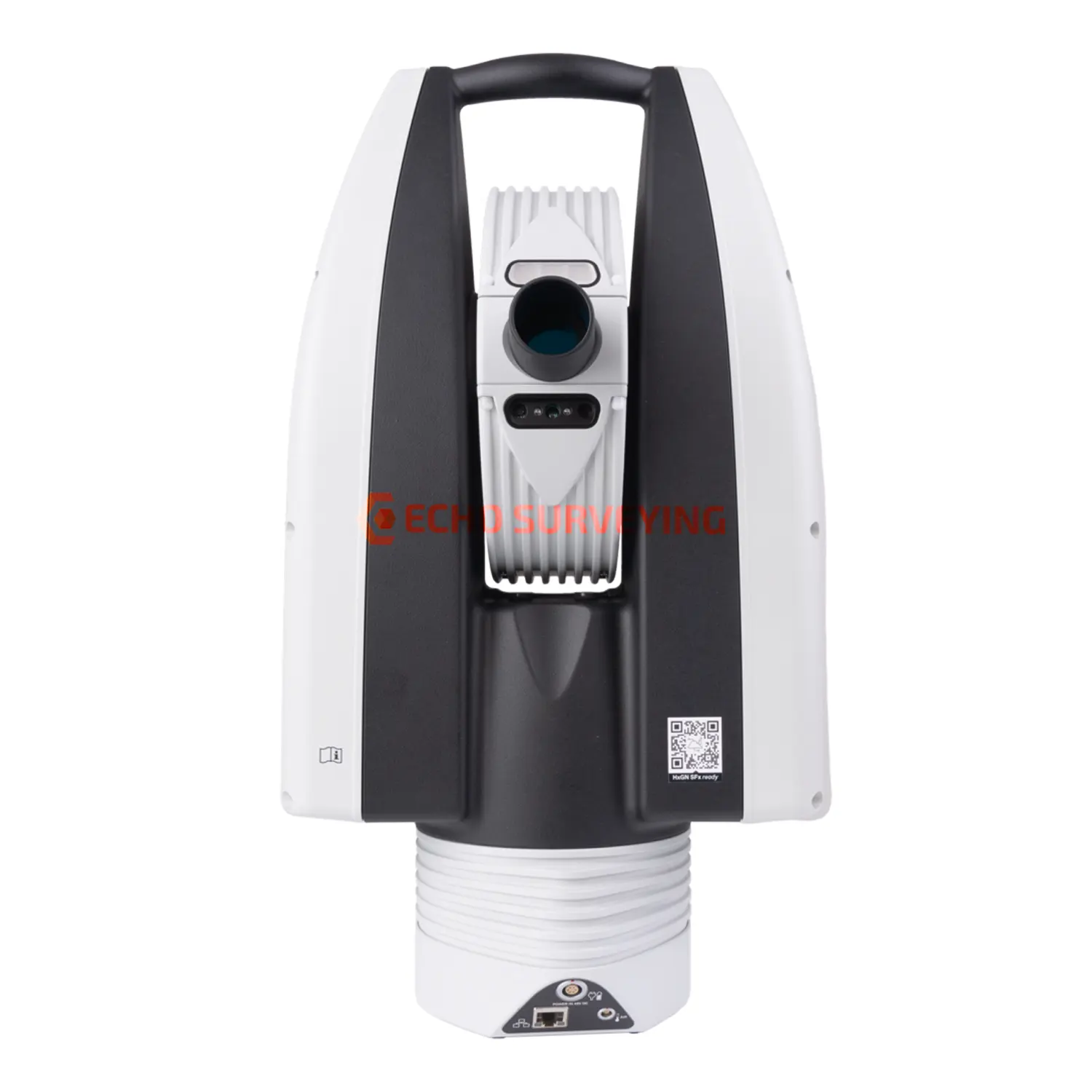

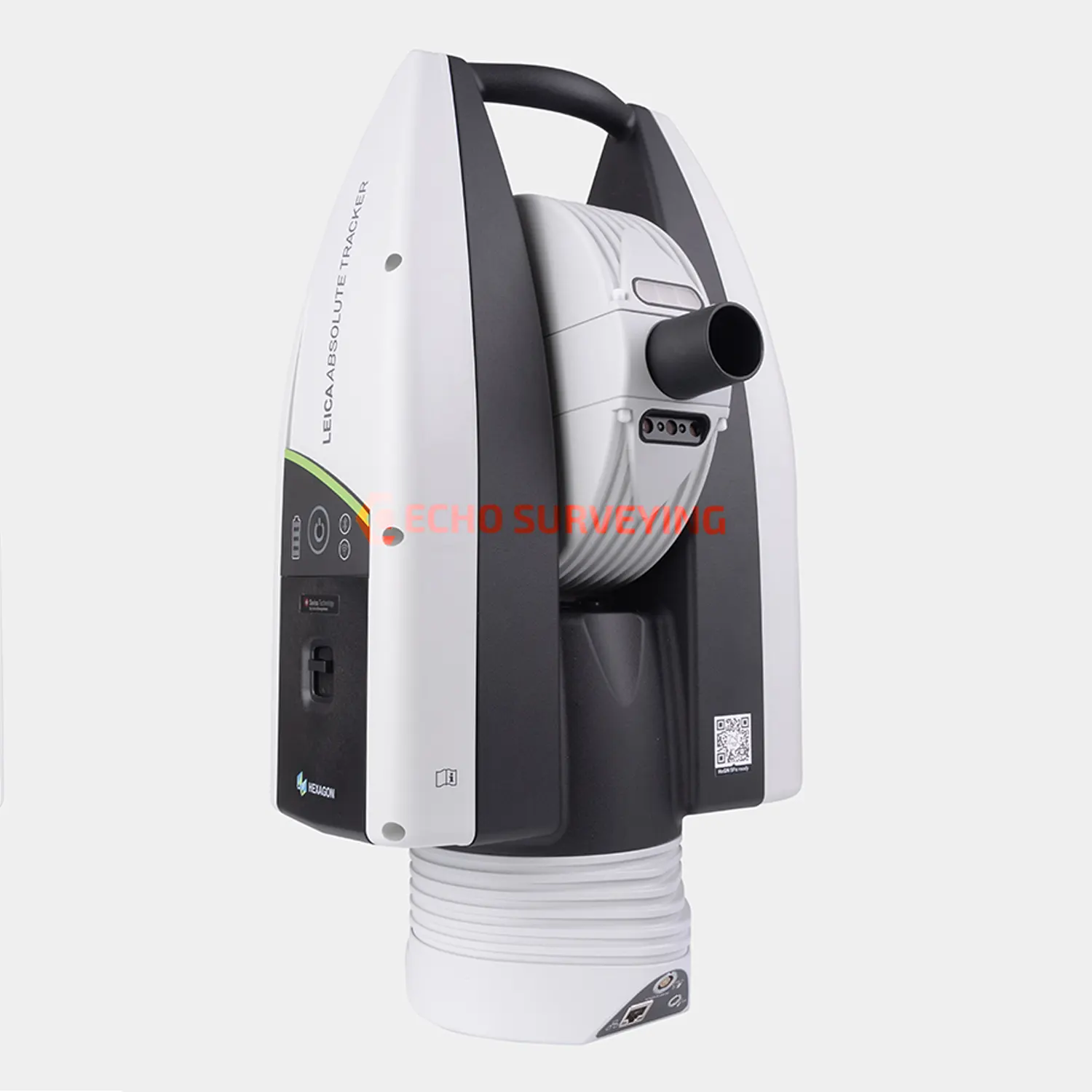

Leica Absolute Tracker AT500 is the newest, ultra-portable, all-in-one system (batteries, controller, Wi-Fi built in). Optimized for large-volume measurement, portability, and simplicity. Works with B-Probe Plus (6DoF probing).
Leica Absolute Tracker AT500 Measure anywhere with enhanced productivity
Hexagon Manufacturing Intelligence recently released the Leica Absolute Tracker AT500 and the B-Probeplus, which succeed the Leica Absolute Tracker AT403/B-Probe. This system combines the portability and large-volume measurement capabilities of the AT40x with the productivity features of the AT9x0 and ATS600 series. The design of the AT500 emphasizes applications previously addressed by AT40x systems, such as long-range measurements, levelling, autocollimation, entry-level probing, and other scenarios where portability and ease of use are essential. This paper presents representative applications in which the AT500 addresses these measurement tasks and describes the available accessories.
The Leica Absolute Tracker AT500 makes measurement simple without compromising on portability, productivity and resilience. From transport case to large-scale measurement is just a matter of moments thanks to a hassle-free setup process, while IP54-rated protection and an extended operating temperature range keep the AT500 working under even the most challenging conditions. From reflector measurement at up to 160 metres from the tracker to simplified 6DoF probing functionality, the Leica AT500 is ready for every manufacturing and assembly challenge, no matter the size or location.

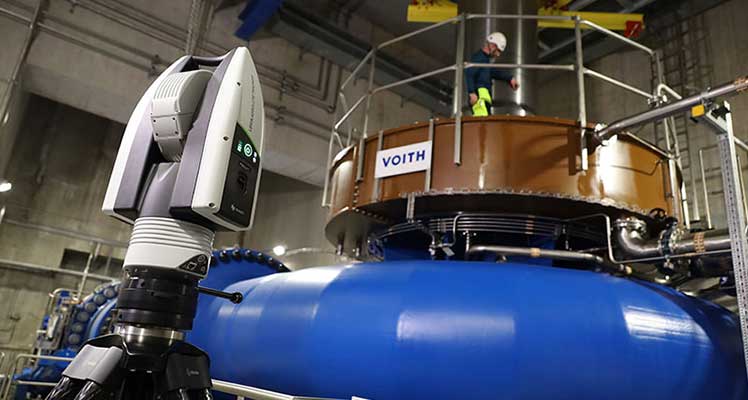

Productivity made easy
The Leica AT500 is our easiest ever laser tracker. Out of the transport case, power on and you’re ready to measure. There are no cables thanks to the built-in controller and battery power, as well as no levelling or reflector initialisation required. The system runs on two IATA compliant batteries, hot-swappable and offering up to 6 hours of runtime. Measurement is faster too – at a 100 Hz, point collection is 10 times faster than the AT403, while the latest generation of our patented PowerLock automatic targeting system avoids time wasting. The system is also augmented by the new AT500 Connect App, which allows network setup and levelling to be performed on your smart phone or tablet (available for Android and iOS).

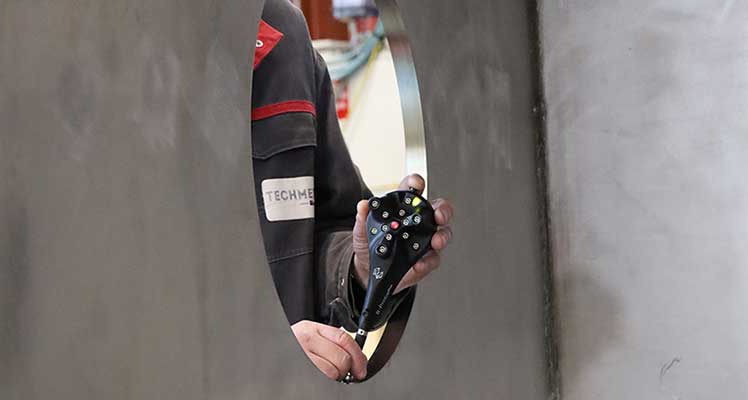

Next-gen probing
The B-Probeplus delivers a completely new user experience for entry-level probing. Completely wireless measurement now comes with live feedback and a wide acceptance angle of up to 16° in any direction at a range of up to 12 metres from the tracker. The new probe unit also features redesigned, more durable buttons and an extended battery runtime of up to 6 hours, along with probing measurement accuracy specified in line with ISO 10360-10.

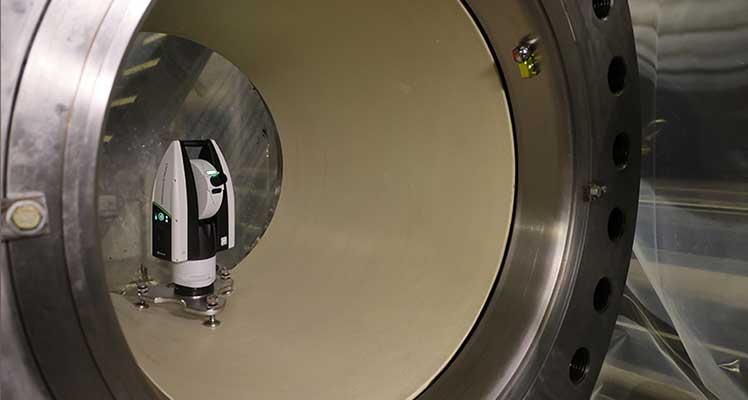

Measure anywhere
The AT500 boasts IP54-rated protection from the elements, as well as an extended working temperature range of -15 to +50°C, allowing for measurement from the mountaintop to the foundry. And thanks to the all-in-one integrated design with built-in controller – a first for an Absolute Tracker system – the AT500 is more portable than ever.

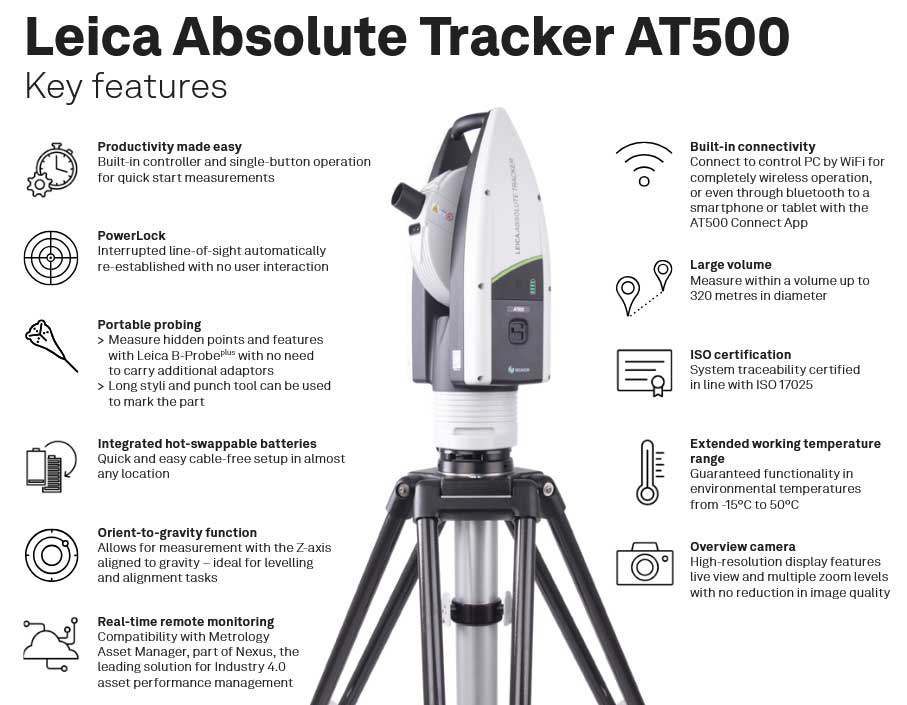

Features and benefits
- All-in-One Integrated Design: From built-in battery-powered controller unit, integrated wireless connectivity, environmental monitoring and all-day battery power, to HD overview camera and ergonomic carry handle, every need is built in.
- Single-Box Probing System: Just one case contains the lightest and most portable sensor and probe as well as IR remote, with various transportation case options for full flexibility.
- Smart Connectivity: Built-in WiFi with true access-point functionality delivers single-user operation through a simple PC setup and remote control.
- Bluetooth Control: The AT500 Connect app offers quick settings adjustments over Bluetooth direct from a smartphone or tablet (Android and iOS).
- PowerLock: Automatically re-establishes interrupted line of sight within a wide field of view with no user interaction required.
- Continuous Measurement: Continuous time and distance measurement mode, with measurement sampling rate at 100 Hz.
- Entry-Level Probing: Cableless, battery-powered Leica B-Probeplus with customisable hidden-point capability.
- IP54 Certification: The IEC-certified sealed unit guarantees ingress protection against dust and other contaminants, enabling effective measurement in even the harshest environments.
- MeteoStation: Integrated environmental unit monitors conditions including temperature, pressure and humidity to compensate for changes and ensure accurate measurements regardless of external factors.
- Orient-to-Gravity: Enables measurement with the Z-axis aligned to gravity, ideal for levelling and alignment tasks.
- Battery Power: Independent hot-swappable battery power supply allows for quick and easy cable-free setup and all-day wireless operation.
- Operating Temperature: Wide operating temperature range of -15 to +50° Celsius.
- Measurement Volume: Ultra-large measurement volume of up to 320 metres (ø), with minimum measurement distance less than 0.8 metres.
- Hexagon Guarantee: Full 24-month factory warranty and guaranteed ten years of serviceability.
- Real-Time Asset Management: The AT500 is fully compatible with Metrology Asset Manager, the leading solution for asset performance management in the world of Industry 4.0. Based on data collected in real-time and reported through a centralised user-friendly dashboard, Metrology Asset Manager has been optimised for the management of laser tracker-based systems and is an essential part of every smart manufacturing strategy.
Technical Data
- Measurement ranges: Tracker Model: 3D and 6D, AT500: 0.8 to 160m. And 1.6 to 12m
- Tracker size: weight 477 x 261 x 238 mm and 13.6 kg
- Controller size: weight built-in controller, 0 kg
- Laser class: Class 2 Laser Product in accordance with IEC 60825-1 Second Edition (2014-05)
- Overview Camera: 5MP and 10-degree FOV
- Power-Lock range: 80m.
- ISO 17025 certified: Available
- Operating temperature: -15°C to +50°C
- Relative humidity: max. 95% non-condensing
- Operating elevation: -700 m to +5500 m
- Dust water: IP54
- Cable: Cat5e
- Wireless: WLAN (IEEE 802.11n)
- Battery type: Lithium-ion battery swappable
- Typical battery runtime (single charge): 6 hours
- Data output: 100 Hz
- Mains: AC power supply
- Probing Accuracy: B-Probeplus
- Probing size: ±100 µm
- Absolute angular performance eT: ±15 µm + 6 µm/m
- AIFM absolute distance performance: ±0.5 µm/m
- Dynamic lock-on: ±10 µm
- Inclination senor: ±1.0 arcsec
- Orient to gravity Uz: ±15 µm + 8 µm/m
- Timestamp accuracy: < 5 μsec.
