$9500

In Stock

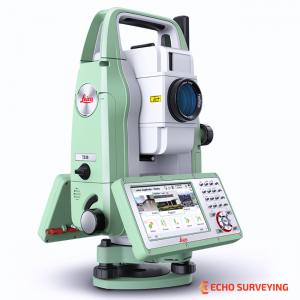

Leica FlexLine TS10 1” R500 Total Station for sale, Reflectorless R500 EDM, Brand new 1 Year Warranty

Leica FlexLine TS10 1” R500 Total Station for sale, Reflectorless R500 EDM, Brand new 1 Year Warranty

Leica FlexLine TS10 1” Total Station sale includes:

  • Leica FlexLine TS10 1” R500 EDM Reflectorless Total Station
  • Protective cover
  • Lens hood
  • Cleaning cloth
  • User manual
  • 1-year warranty

The new generation of Leica Flexline manual total station, Leica FlexLine TS10, Leica FlexLine TS07 and Leica Leica FlexLine TS03 Total Station. The Leica FlexLine TS10 is a high-end manual total station, enabling you to carry out high-demand survey tasks with Leica Captivate software. This way you can participate in the world of 3D by benefiting from 3D views of your measured data. The TS10 offers the world’s first AutoHeight feature as an option. AutoHeight enables the instrument to automatically measure, read and set its instrument height. Prevent time consuming manual effort and eliminate critical errors during the instrument setup when this revolutionary feature uses a laser from the instrument to measure to the ground and automatically passes the measurement to the software. The TS10 is equipped with the Leica Captivate field software, a comprehensive application-based software package. This intuitive, familiar software helps you to capture even more points than before. You are also able to tie into the modern 3D dataflow and rigorous quality assurance and control routines.

FEATURES

  • Work Faster: Measure more points per day due to faster measurement and stakeout procedures (endless drives, trigger key, drives on both sides, pinpoint EDM and more), supported by our easy-to-use and familiar FlexField software. Speed up your learning curve onsite, take advantage of the great ergonomics and reliable measurements. Reduce errors and rework.
  • Use it trouble-free: Increase productivity and minimise downtime by relying on instruments that simple work and come with a global service and support network.
  • Choose products that are built to last: Even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold), FlexLine still operates with the same high level of accuracy and reliability.
  • Control your investment: Instrument quality has been our standard for almost 200 years, which is why you can count on a lower investment over the entire instrument lifetime and do not have to worry about unexpected costs.
  • Profit from mobile connectivity: With optional mobile internet access, you can share your data online much faster, receive design data from your designers and engineers onsite, and use Leica Geosystems Services such as Leica Exchange or Leica Active Assist.
  • Save time with AutoHeight: This revolutionary feature enables your TS10 to automatically measure, read and set its own height. This functionality minimises errors and accelerates the setup process onsite.

LEICA TS10 TECHNICAL SPESIFICATION

Angular Measurement
Accuracy Hz and V Absolute, continuous, diametrical1 1’’ / 2’’ / 3’’ / 5’’“
  • Display resolution: 0.1’’ (0.1 mgon)
  • Quadruple axis compensation
  • Compensator setting accuracy2: 0.5’’ / 1’’/ 1.5’’ / 2’’
  • Compensator range: +/- 3.78’ (+/- 0.07gon)
  • Electronic level resolution: 2“
  • Circular level sensitivity: 6` / 2mm
Distance Measurement
Range
  • Prism (GPR1, GPH1P): 1.5m to 3.500m
  • Prism GPR1 (Long Range mode) > 10.000m
Non-Prism / Any surface
R500
R1000
Accuracy / Measurement time Single prism
  • Precise+ / Once: 1mm + 1.5ppm (typical 2.4s)
  • Precise&Fast / Once&Fast: 2mm + 1.5ppm (typical 2s)
  • Tracking / Continously: 3mm + 1.5ppm (typical < 0.15s)
  • Averaging: 1mm + 1.5ppm
  • Long Range mode / > 4km: 5mm + 2ppm (typical 2.5s)
Non-Prism / Any surface
  • 0 m - 500m: 2mm + 2ppm (typical 3-6s)
  • > 500m: 4mm + 2ppm (typical 3-6s)
Laser dot size
  • At 30m: 7mm x 10mm
  • At 50m: 8mm x 20mm
  • At 100m: 16mm x 25mm
Telescope
  • Magnification: 30x
  • Resolving power: 3”
  • Focusing range: 1.55m / 5.08ft to infinity
  • Field of view: 1°30’ / 1.66gon / 2.7m at 100m
General
Display and keyboard 5“ (inch), 800 x 480 pixels WVGA, colour, touch, 25 keys5b, (optional5c: 37 keys with function keys)
2nd keyboard
Key illumination
Operation
  • Endless drives for HZ & V
  • Trigger-Key: user definable with 2 functions
Power management Exchangeable Lithium-Ion battery
Operating time with GEB361 up to 18h
Operating time with GEB331 hup to 9h
Battery charging time with
GKL341 charger for GEB361 / GEB331 3h 30min / 3h
GKL311 charger for GEB361 / GEB331 6h 30min / 3h 30min
Data storage
  • Internal memory: 2GB Flash
  • Memory card: SD card 1GB or 8GB
  • USB memory stick: 1GB
Processor
  • TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
  • Operating system – Windows EC7
Interfaces RS2327, USB device
Bluetooth®8, WLAN9
Mobile Data sidecover: LTE-Modem for internet access
Guide Light (EGL)
  • Working range: 5m to 150m
  • Position accuracy: 5cm at 100m
  • Wavelength red /orange: 617nm / 593nm

(R1000)
Laser plummet
(Laserclass 2)
Accuracy
  • Plumb line deviation: 1.5mm at 1.5m instrument height
  • Diameter of laser point: 2.5mm at 1.5m instrument height
AutoHeight module for automatic instrument height measurement (Laserclass 2) Accuracy
  • Distance accuracy: 1.0mm @ 1m
  • Distance range: 0.7m to 2.7m
Weight 4.4 - 4.9kg
Environmental specifications Working temperature range: –20°C to +50°C
Arctic version: –35°C to +50°C
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing
Military Standard 810G, Method 506.5
