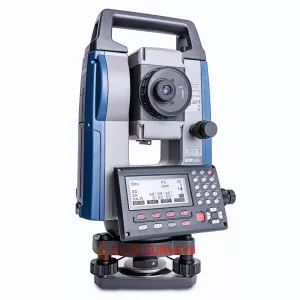

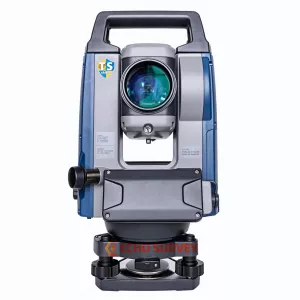

Sokkia iM-101 1” Total Station for sale, 1 angle accuracy, Reflectorless range of 2,624 feet, Bluetooth, USB, 5-Year Topcon Warranty
Sokkia iM-101 1” Total Station for sale, 1 angle accuracy, Reflectorless range of 2,624 feet, integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0
Sokkia iM-101 1” sale includes:
The iM-100 (Intelligent Measurement Total Station) incorporates all the features you need at a cost-efficient price. It will handle your most demanding survey layout or as-built project needs.
This total station has a reflectorless range of 2,624 feet and up to 19,685 feet using a single prism at 2.0 mm + 2 ppm accuracy. It is also integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0 for connecting and transferring data instantly to a data controller.
You get fast, accurate, and powerful EDM technology, best-in-class accuracy up to 5,000 m with a prism and up to 800 m in reflectorless mode, and a battery life of up to 28 hours. The iM-100 is ready to be your hardest worker out in the field. Featuring a coaxial red laser using EDM technology, the Sokkia iM-100 is faster, more accurate and powerful. It is equipped with a laser plummet and dual-axis compensation which provides stable measurements even on challenging terrain by automatically correcting both horizontal and vertical angles. This reflectorless total station comes with a single graphic display for viewing measurements and 50,000 points of internal memory to store large amounts of field data. It also supports an SD flash drive up to 32GB.
Sokkia iM-100 Series Reflectorless Total Station is available in four different accuracies as follows:
|Model||Sokkia iM-102||Sokkia iM-103||Sokkia iM-105|
|Magnification / Resolving power||30x / 2.5”|
|Length||171 mm (6.7 in.)|
|Objective aperture||45 mm (1.8 in.) (48 mm (1.9 in.) for EDM)|
|Display Resolution||1” / 5”|
|Accuracy (ISO 17123-3:2001)||2”||3”||5”|
|Internal memory||Approx. 50,000 points|
|Plug-in memory device||USB flash memory (max. 32GB)|
|Dust/Water Rating||IP66 (IEC 60529:2001)|
|Size with handle (w x d x h)||Control panel on both faces: 183 x 181 x 348 mm
Control panel single face: 183 x 174 x 348 mm
