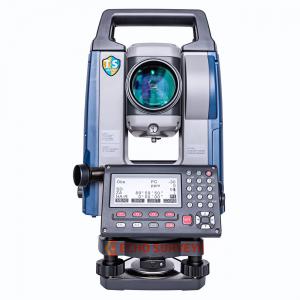

Sokkia iM-103 3" Total Station

Name: Sokkia iM-103 3" Total Station
Brand: Sokkia
SKU: sku-72
Price: 5550 USD
Availability: InStock
Rating: 4 (10 reviews)

$5550

Sokkia iM-103 3” Total Station for sale, 3 angle accuracy, Reflectorless range of 2,624 feet, Bluetooth, USB, 5-Year Topcon Warranty

Sokkia iM-103 3" Total Station description

Sokkia iM-103 3” Total Station for sale, 3 angle accuracy, Reflectorless range of 2,624 feet, integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0

Sokkia iM-103 3” sale includes:

Sokkia iM-1003 3” Reflectorless Total Station
Lens cap and hood
Tool pouch
Precision screwdriver
Lens brush
2 x Hexagonal wrench
Cleaning cloth
Power cable Battery
BDC70 Battery charger, CDC68A
CD-ROM manual
Laser caution sign-board
Carrying case with strap
User manual

The iM-100 (Intelligent Measurement Total Station) incorporates all the features you need at a cost-efficient price. It will handle your most demanding survey layout or as-built project needs.

This total station has a reflectorless range of 2,624 feet and up to 19,685 feet using a single prism at 2.0 mm + 2 ppm accuracy. It is also integrated with Bluetooth Class 1.5, RS-232C serial port, and USB 2.0 for connecting and transferring data instantly to a data controller.

You get fast, accurate, and powerful EDM technology, best-in-class accuracy up to 5,000 m with a prism and up to 800 m in reflectorless mode, and a battery life of up to 28 hours. The iM-100 is ready to be your hardest worker out in the field. Featuring a coaxial red laser using EDM technology, the Sokkia iM-100 is faster, more accurate and powerful. It is equipped with a laser plummet and dual-axis compensation which provides stable measurements even on challenging terrain by automatically correcting both horizontal and vertical angles. This reflectorless total station comes with a single graphic display for viewing measurements and 50,000 points of internal memory to store large amounts of field data. It also supports an SD flash drive up to 32GB.

Features:

Fast, accurate and powerful EDM
Integrated Blueooth technology - no external antenna necessary for connectivity with the controller
Dual axis compensation
Waterproof IP66 rating
Up to 28 hours of battery life in Eco mode

Sokkia iM-100 Series Reflectorless Total Station is available in four different accuracies as follows:

1018763-18: Sokkia iM-101 1 Second Reflectorless Total Station
1021013-01: Sokkia iM-102 2 Second Reflectorless Total Station
1021013-03: Sokkia iM-103 3 Second Reflectorless Total Station
1018763-07: Sokkia iM-105 5 Second Reflectorless Total Station

Technical Spesification

Model	Sokkia iM-102	Sokkia iM-103	Sokkia iM-105
Telescope
Magnification / Resolving power	30x / 2.5”
Length	171 mm (6.7 in.)
Objective aperture	45 mm (1.8 in.) (48 mm (1.9 in.) for EDM)
Angle Measurement
Display Resolution	1” / 5”
Accuracy (ISO 17123-3:2001)	2”	3”	5”
Memory
Internal memory	Approx. 50,000 points
Plug-in memory device	USB flash memory (max. 32GB)
General
Dust/Water Rating	IP66 (IEC 60529:2001)
Size with handle (w x d x h)	Control panel on both faces: 183 x 181 x 348 mm Control panel single face: 183 x 174 x 348 mm
