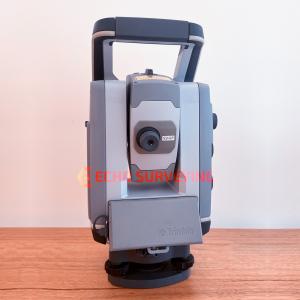

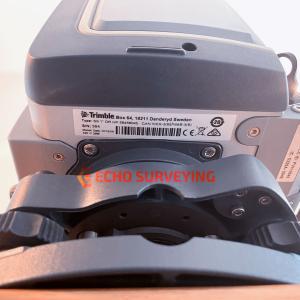

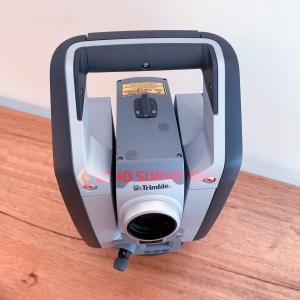

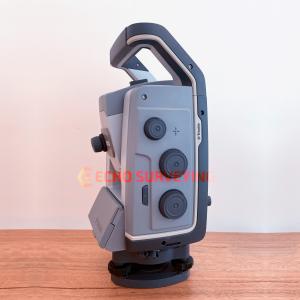

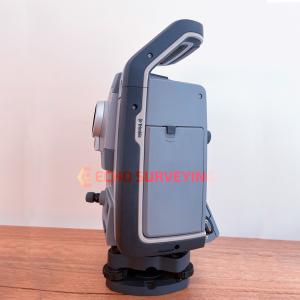

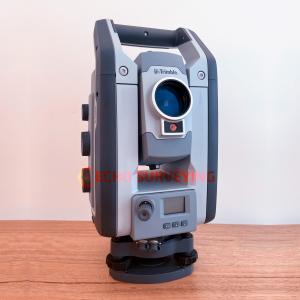

Used Trimble S9 1" DR HP Robotic Total Station

$11500
In Stock

Used Trimble S9 1” DR HP Robotic Total Station for sale, fully shop tested, serviced and calibrated by Trimble authorized, ready to working order and complies with Trimble’s manufacturer specifications

Used Trimble S9 1" DR HP Robotic Total Station description

For sale Trimble S9 1” DR HP Robotic Total Station, fully shop tested, serviced and calibrated by Trimble authorized, ready to working order and complies with Trimble’s manufacturer specifications. Still like new, low hours used and the performance of this Trimble S9 1” DR HP is guaranteed to be within manufacturers specifications

Includes:

  • Trimble S9 1” DR HP Robotic Total Station, Laser, Autolock, Vision, Finelock, Robotic & Reflectorless, Internal 2.4 GHz Radio with Antenna, Current Calibration
  • 2x Trimble Li-ion Rechargeable Batteries
  • Gray Dual Battery Charger with Power Supply
  • Trimble MT1000 Prism
  • 2x Li-ion Rechargeable Batteries
  • Black Dual Battery Charger w/ Power Supply
  • Trimble Transport Case

Angle Measurement

  • Accuracy (Standard deviation based on DIN 18723): 1”
  • Automatic Level Compensator dual-axis with a working range of: + 5.4’

Distance Measurement

  • Accuracy SDV ( without Reflector) according to ISO 17123-4 : + 3mm +2ppm
  • Accuracy SDV ( with Reflector)      according to ISO 17123-4 : + 1mm +1ppm

The Trimble S9 HP Total Station combines top field technologies with the highest level of accuracy and most advanced engineering features. The S9 HP provides a higher-powered EDM with a 0.8 mm accuracy and coaxial laser pointer that gives you confidence in the data collected when working underground

  • Available 0.5” or 1” angle accuracy
  • EDM Accuracy : 0.8 mm + 1 ppm (Prism) /3.0 mm + 2 ppm (DR)
  • Trimble DR Plus or HP EDM for optimal speed, accuracy and reliabilitY
  • Optional Trimble VISION and SureScan technology
  • Locate2Protect real-time equipment management
  • Intuitive Trimble Access Field Software
  • Trimble Business Center Office Software for quick data processing
  • Controllers: Trimble T10 Tablet, Trimble TSC7 Controller, Trimble CU5 Controller
  • Software: Trimble Access Field Software, Trimble Business Center office software, Trimble 4D Control

PERFORMANCE AND PRECISION

The Trimble S9 total stations integrate the best field technologies plus our highest level of accuracy and specialized engineering features for the ultimate in performance and precision. You can combine scanning, imaging and surveying into one solution, or focus on the highest level of accuracy with options such as LongRange FineLock and our Trimble DR High Precision (HP) EDM for applications where precision is priority. Back in the office, trust our powerful Trimble Business Center and Trimble 4D office software to help you process and analyze your data.

Specialized for Engineering Applications

The Trimble S9 total station is built for specialized applications such as monitoring and tunneling, where you need a solution with optimal speed, accuracy and reliability. Combine the Trimble DR HP EDM in the S9 HP with your choice of 1” or 0.5” angular accuracies and Long Range FineLock and you have the flexibility to tackle the most demanding projects.

Trimble DR Plus and DR HP EDM

Trimble DR Plus range measurement technology provides extended range of Direct Reflex
measurement without a prism to exceptionally long distances, while the DR HP EDM in the S9 HP offers higher accuracy when measuring to prisms. Trimble's high performance EDMs, combined with the smooth and frictionless drive capabilities of MagDrive servo technology, creates unmatched capability for quick measurements, without compromising on accuracy.

Stay on Point

Reduce aiming error, avoid costly re-measurement and be confident in your results with Trimble SurePoint. The Trimble S9 total stations aim and stay on target through wind, handling, and sinkage, actively correcting for unwanted movement ensuring accurate pointing and measurement every time. With exclusive MultiTrack technology and Target ID capabilities, surveyors can choose the type of target, passive or active, that best suits the job site conditions and be confident that they will find and lock to the correct target.

Advanced Engineering Features

Additional engineering-specific features in the Trimble S9 total stations include Trimble Finelock technology and the 3R laser pointer. Trimble Finelock detects targets without interference from surrounding prisms for high precision applications in close quarters. The Trimble LongRange FineLock option extends this functionality. With the Class 3R laser pointer in the Trimble S9 HP, you can visually mark points at greater range in tunnels or underground mines.

Manage Your Assets 24/7

Know where your total stations are 24 hours a day with Trimble Locate2Protect technology. See where your equipment is at any given time and get alerts if your instrument leaves a job site or experiences unexpected equipment shock or abuse. Our Trimble InSphere Equipment Manager system lets you view usage and keep up-to-date on firmware, software and maintenance requirements. With Trimble Locate2Protect and InSphere Equipment Manager, you can rest assured knowing your equipment is up-to-date and where it should be.

Trimble VISION and SureScan Technology

The Trimble S9 comes with optional Trimble VISION and SureScan technology. The improved Trimble VISION gives you the power direct your survey with live video images on the controller as well as create a wide variety of deliverables from collected imagery. Trimble SureScan in the S9 total station provides the flexibility to perform feature-rich scans every day, without the complexity of setting up a separate scanning system or switching to specialized field software. SureScan ensures that you have even coverage and get the most efficiency from your scanning.

Powerful Field and Office Software

Trimble controllers and our specialized modules in Trimble Access field software such as Tunnels, Monitoring, Pipelines and Mines provide dedicated workflows to help you get the job done faster. Trimble Access workflows can also be customized to fit your needs. In the office, use Trimble Business Center to help you check, process and adjust your data in one software solution. Trimble 4D Control office software provides a comprehensive solution for the management of monitoring projects—both real time and post-processed—to rapidly detect critical structural movements.

Trimble S9 and S9 HP Configuration

  EDM Accuracy Servo Trimble
VISION
Sure Scan FineLock Long Range
FineLock
3R Laser
Pointer
Tracklight ActiveTrack
360 Prism
S9 DR Plus 0.5” Robotic Yes Yes Yes No No No Yes
  DR Plus 0.5” Robotic No No Yes Yes No No Yes
  DR Plus 1” Robotic or
Autolock
No No Yes Yes No No Yes
S9 HP DR HP 0.5” Robotic No No Yes Yes No No Yes
  DR HP 0.5” Robotic or
Autolock
No No Yes No No Yes Yes
  DR HP 0.5” Robotic No No Yes   No No Yes
  DR HP 1” Robotic or
Autolock
Yes No Yes No No No Yes
  DR HP 1” Robotic or
Autolock
Yes No Yes No No Yes Yes
  DR HP 1” Robotic or
Autolock
No No Yes Yes No No Yes
  DR HP 1” Robotic or
Autolock
No No Yes No Yes No Yes

PERFORMANCE (DR PLUS)

Angle measurement

  • Sensor type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Absolute encoder with diametrical reading
  • Accuracy (Standard deviation based on DIN 18723) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5” (0.15 mgon) or 1” (0.3 mgon)
  • Display (least count) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1” (0.01 mgon)
  • Automatic level compensator
    • Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centered dual-axis
    • Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5” (0.15 mgon)
    • Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5.4’ (±100 mgon)

Distance measurement
Accuracy (RMSE)
Prism mode

  • Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 mm + 2 ppm (0.003 ft + 2 ppm)
  • Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 mm + 2 ppm (0.013 ft + 2 ppm)

DR mode

  • Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 mm + 2 ppm (0.0065 ft + 2 ppm)
  • Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 mm + 2 ppm (0.013 ft + 2 ppm)
  • Extended Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 mm + 2 ppm (0.033 ft + 2 ppm)

Measuring time
Prism mode

  • Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 s
  • Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 s

DR mode

  • Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–5 s
  • Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 s

Measurement Range
Prism mode (under standard clear conditions 2,3)

  • 1 prism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,500 m (8,202 ft)
  • 1 prism Long Range mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,500 m (18,044 ft) (max. range)
  • Shortest range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 m (0.65 ft)

DR mode

  Good
(Good visibility,
low ambient light)
Normal
(Normal visibility, moderate sunlight,
some heat shimmer)
Difficult
(Haze, object in direct sunlight,
turbulence)
White card
(90% reflective)4
1,300 m (4,265 ft) 1,300 m (4,265 ft) 1,200 m (3,937 ft)
Gray card
(18% reflective)4
600 m (1,969 ft) 600 m (1,969 ft) 550 m (1,804 ft)
  • Reflective foil 20 mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 m (3280 ft)
  • Shortest possible range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 m (3.28 ft)
  • DR Extended Range Mode
    • White Card (90% reflective) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2000 m–2200 m

Trimble S9 and S9 HP Total Station

  • Scanning
  • Range2,3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . from 1 m up to 250 m (3.28 ft–820 ft)
  • Speed4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .up to 15 points/sec
  • Minimum point spacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mm (0.032 ft)
  • Standard deviation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 mm @ ≤150 m (0.0049 ft @ ≤492 ft)
  • Single 3D point accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mm @ ≤150 m (0.032 ft @ ≤492 ft)

EDM SPECIFICATIONS

  • Light source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pulsed laserdiode 905 nm, Laser class 1
  • Beam divergence Prism mode
    • Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 cm/100 m (0.13 ft/328 ft)
    • Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 cm/100 m (0.26 ft/328 ft)
  • Beam divergence DR mode
    • Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 cm/100 m (0.13 ft/328 ft)
    • Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 cm/100 m (0.26 ft/328 ft)
    • Atmospheric correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –130 ppm to 160 ppm continuously

PERFORMANCE (DR HP)
Angle measurement

  • Angle accuracy (Standard deviation based on DIN 18723) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5” (0.15 mgon) or 1” (0.3 mgon)
  • Angle display (least count) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1” (0.01 mgon)

Distance measurement
Accuracy (RMSE)
Prism mode

  • Standard1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8 mm + 1 ppm (0.0026 ft +1 ppm)
  • Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 mm + 2 ppm (0.016 ft + 2 ppm)

DR mode

  • Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 mm + 2 ppm (0.01 ft + 2 ppm)
  • Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mm + 2 ppm (0.032 ft + 2 ppm)

Measuring time
Prism mode

  • Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 s
  • Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 s

DR mode

  • Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15 s
  • Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 s

Range
Prism mode (under standard clear conditions 2,3)

  • 1 prism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,000 m (9,800 ft)
  • 1 prism Long Range mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 m (16,400 ft)
  • 3 prism Long Range mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,000 m (23,000 ft)
  • Shortest range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 m (4.9 ft)

DR mode

  Good
(Good visibility,
low ambient light)
Normal
(Normal visibility, moderate sunlight,
some heat shimmer)
Difficult
(Haze, object in direct sunlight,
turbulence)
White card
(90% reflective)4
>150 m (492 ft) 150 m (492 ft) 70 m (229 ft)
Gray card
(18% reflective)4
>120 m (394 ft) 120 m (394 ft) 50 m (164 ft)
  • Shortest range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 m (4.9 ft)

EDM SPECIFICATIONS (DR HP)

  • Light source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Laserdiode 660 nm; Laser class 1 in Prism mode, Laser class 2 in DR mode
  • Beam divergence
    • Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 cm/100 m (0.13 ft/328 ft)
    • Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 cm/100 m (0.13 ft/328 ft)

SYSTEM SPECIFICATIONS
Leveling

  • Circular level in tribrach . . . . . . . . . . . . . . . . . . . . . . . . . . 8'/2 mm (8'/0.007 ft)
  • Electronic 2-axis level in the LC-display
    • with a resolution of . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3” (0.1 mgon)

Servo system

  • MagDrive servo technology . . . . . . . . . . . . . . . .integrated servo/angle sensor electromagnetic direct drive
  • Rotation speed . . . . . . . . . . . . . . . . . . . . . . . . . 115 degrees/sec (128 gon/sec)
  • Rotation time Face 1 to Face 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 sec
  • Positioning speed 180 degrees (200 gon) . . . . . . . . . . . . . . . . . . . . . . . 2.6 sec
  • Clamps and slow motions . . . . . . . . . . Servo-driven, endless fine adjustment

Centering

  • Centering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Trimble 3-pin
  • Optical plummet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Built-in optical plummet
  • Magnification focusing distance . . . . . . . . .2.3×/0.5 m–infinity (1.6 ft–infinity)

Telescope

  • Magnification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30×
  • Aperture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mm (1.57 in)
  • Field of view at 100 m (328 ft) . . . . . . . . . . . 2.6 m at 100 m (8.5 ft at 328 ft)
  • Focusing distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 m (4.92 ft)–infinity
  • Illuminated crosshair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Variable (10 steps)
  • Autofocus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Standar

Camera (also available as an option in the DR High Precision version)

  • Chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Color Digital Image Sensor
  • Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2048 x 1536 pixels
  • Focal length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 mm (0.09 ft)
  • Depth of field . . . . . . . . . . . . . . . . . . . . . . . .3 m to infinity (9.84 ft to infinity)
  • Field of view . . . . . . . . . . . . . . . . . . . . . . 16.5° x 12.3° (18.3 gon x 13.7 gon)
  • Digital zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-step (1x, 2x, 4x, 8x)
  • Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Spot, HDR, Automatic
  • Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . User-definable
  • Image storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Up to 2048 x 1536 pixels
  • File format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . JPEG

Power supply

  • Internal battery . . . . . . . . . . . . . . . Rechargeable Li-Ion battery 11.1 V, 5.0 Ah
  • Operating time5
    • One internal battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Approx. 6.5 hours
    • Three internal batteries in multi-battery adapter . . . . . . . . . Approx. 18 hours
    • Robotic holder with one internal battery . . . . . . . . . . . . . . . . . . . . 13.5 hours
  • Operating time for video robotic7
    • One battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 hours
  • Three batteries in multi-battery adapter . . . . . . . . . . . . . . . . . . . . . . .17 hours

Weight and Dimensions

  • Instrument (Autolock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.4 kg (11.35 lb)
  • Instrument (Robotic) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 kg (11.57 lb)
  • Trimble CU controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 kg (0.88 lb)
  • Tribrach. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7 kg (1.54 lb)
  • Internal battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.35 kg (0.77 lb)
  • Trunnion axis height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 mm (7.71 in)

AUTOLOCK AND ROBOTIC SURVEYING

  • Passive prisms . . . . . . . . . . . . . . . . . . . . . . . . . . . .500 m–700 m (1,640–2,297 ft)
  • Trimble MultiTrack Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800 m (2,625 ft)
  • Trimble ActiveTrack 360 Target . . . . . . . . . . . . . . . . . . . . . . . . 500 m (1,640 Ft)
    • Autolock pointing precision at 200 m (656 ft) (Standard deviation)
      • Passive prisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <2 mm (0.007 ft)
      • Trimble MultiTrack Target . . . . . . . . . . . . . . . . . . . . . . . . . . <2 mm (0.007 ft)
      • Trimble ActiveTrack 360 Target . . . . . . . . . . . . . . . . . . . . . <2 mm (0.007 ft)
  • Shortest search distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.2 m (0.65 ft)
  • Type of radio internal/external . . . . . . . . . . . . . . . . . 2.4 GHz frequency-hopping, spread-sprectrum radios
  • Search time (typical)7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10 sec

FINELOCK

  • Finelock pointing precision at 300 m (980 ft)
    • (standard deviation)3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <1 mm (0.003 ft)
    • Range to passive prisms (min–max)3 . . . . . . . . . 20 m–700 m (64 ft–2,297 ft)
  • Minimum spacing between prisms
    • at 200 m (656 ft) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.8 m (2.625 ft)

Long Range Finelock (not available in all models)

  • Pointing precision at 2,500 m (8,200 ft)
    • (standard deviation)3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . <10 mm (0.039 ft)
    • Range to passive prisms (min.–max.)3,8 . . . . . 20 m–2,500 m (64 ft–8,200 ft)

Minimum spacing between prisms

  • at 2,500 m (8,200 ft) . . . . . . . . . . . . . . . . . . . . . . . . . . . <10.0 m (32.808 ft)

GPS SEARCH/GEOLOCK

  • GPS Search/GeoLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360 degrees (400 gon) or defined horizontal and vertical search window
  • Solution acquisition time9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15–30 sec
  • Target re-acquisition time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <3 sec
  • Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Autolock & Robotic range limits

OTHER SPECIFICATIONS

  • Laser pointer coaxial (standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Laser class 2
  • Laser pointer non-coaxial (not available in all models) . . . . . . . . . . Laser class 3R
  • Tracklight built in . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Not available in all models
  • Operating temperature. . . . . . . . . . . . . . . . . –20º C to +50º C (–4º F to +122º F)
  • Dust and water proofing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP65
  • Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100% condensing
  • Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .USB, Serial, Bluetooth®6
  • Security . . . . . . . . . . . . . . . . . . . . . . . . .Dual-layer password protection available on some models, Locate2Protect10

Downloads
