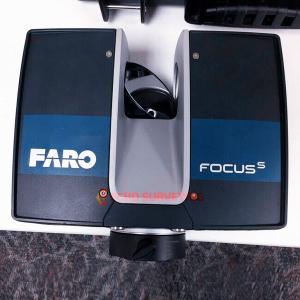

Used Faro Focus S150 Laser Scanner

$13000
In Stock

Lightly used Faro Focus S150 for sale, demo unit only at training environment, fully serviced and calibrated by the FARO authorized in compliance with Faro working standards

Used Faro Focus S150 Laser Scanner description

For sale excellent ready to working to scan Faro Focus S150 laser scanner, ex demo and everything is still in very excellent perfect condition. Fully serviced and calibrated by the FARO authorized in compliance with Faro working standards

Fimrware software updated, Calibration certificate, 1 Year Faro extension warranty and latest Faro Scene included

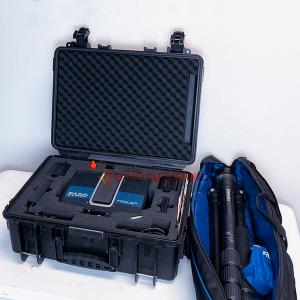

Package includes;

  • FARO Focus S150 with HDR photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, IP rating 54, Calibration Certificate, Quick Start Guide, User's manual, Rugged Transport Case
  • Battery Power Block, Battery Power Dock, 90W Power Supply (extra Battery available on request)

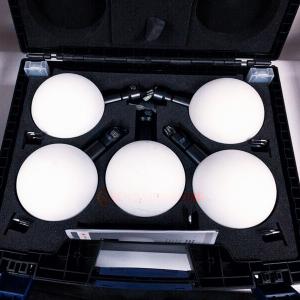

  • 5 Set of spheres
  • USB stick with Faro SCENE software Licence
  • Tripod
  • Calibration Certificate
  • 1 Year Faro extension warranty

FARO Laser Scanner Focus S 150

The world's most popular terrestrial laser scanner with ultra-high accuracy and ingress protection

The Focus S series is the latest addition to FARO's popular, compact, lightweight and intuitive laser scanner product line. The devices of this series are the most forward-thinking laser scanners on the market, adding several customer-centric features, such as Ingress Protection Rating (IP54), increased scanning accuracy and range, an internal accessory bay and a built-in on-site compensation routine.

The Focus S 150 combines all benefits from FARO's well-known Focus3D Laser Scanners with today's most innovative features to perform laser scanning in both indoor and outdoor environments-truly mobile, fast and reliable. The FARO Focus S 150 provides the next level of laser scanning for all applications in industries like Construction, BIM/CIM, Public Safety and Forensics.

The ultra-portable FocusS 150 enables fast, straightforward and ultra-high accurate measurements of objects and buildings. It records architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components delivering realistic and true-to-detail scan results with a range of 150 metres per scan respectively

The intuitive touch-screen of the FocusS models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural colour overlay to the scan data in extreme lighting conditions. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge, makes the FocusS Laser Scanner truly mobile for fast, secure and reliable scanning

FEATURES
ACCURACY
The FocusS now captures environments with increased accuracy regarding distance, dual-axis compensator and angular measurement
TEMPERATURE
Extended temperature range allows scanning in challenging environments - take your FocusS to the desert or run a project in Antarctica
ON-SITE COMPENSATION
With the on-site compensation functionality users can verify and adjust the FocusS compensation on-site or in the office, ensuring the highest scan data quality. A comprehensive compensation document is automatically generated
IP RATING - CLASS 54
With the sealed design, the FocusS is certified with the industry standard Ingress Protection (IP) Rating and classified in class 54 against environmental influences
HDR PHOTO OVERLAY
The HDR camera captures detailed imagery easily while providing a natural color overlay to the scan data captured under extreme brightness gradients
ACCESSORY BAY
With this future-proof interface users can connect additional accessories to the scanner,which offers an option for user specific customization



LASER SCANNER FOR MEDIUM-RANGE APPLICATIONS

The Focus S series is the latest addition to FARO's popular, compact, lightweight and intuitive laser scanner product line. The devices of this series are the most forward-thinking laser scanners on the market, adding several customercentric features, such as Ingress Protection Rating (IP54), increased scanning accuracy and range, an internal accessory bay and a built-in on-site  compensation routine.

The Focus S 150 combines all benefits from FARO's well-known Focus 3D Laser Scanners with today's most innovative features to perform laser scanning in both indoor and outdoor environments - truly mobile, fast and reliable.

The FARO Focus S 150 provides the next level of laser scanning for all applications in industries like Construction, BIM/CIM, Public Safety and Forensics.

BENEFITS

  • Scanning in rough environments while providing protection from dust, debris and water splashes
  • Confident data qualitythrough the on-site compensation
  • Reality-like scan data by increased distance accuracy and angular accuracy
  • Future-proof investment and expandability due to the integrated accessory bay
  • Easy handling of scanner control through its large and luminous touchscreen

PERFORMANCE SPECIFICATIONS

Ranging unit
Unambiguity interval 614m for 122 to 488 kpts/s
307m for 976 kpts/s



Reflectivity 90% (white)  10% (dark-gray)  2% (black)
Range 0.6-150 m 0.6-150 m 0.6-50 m



Ranging noise @10m @10m - noise reduction @25m @25m - noise reduction
90% reflectivity  0.3mm 0.15mm 0.3mm 0.15mm
10% reflectivity  0.4mm 0.2mm 0.5mm 0.25mm
2% reflectivity  1.3mm 0.65mm 2mm 1mm



Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 /
976,000
Ranging error ±1mm
Angular accuracy 19 arcsec for vertical/horizontal angles
3D position accuracy 10m: 2mm / 25m: 3.5mm

Color unit
Resolution: Up to 165 megapixel color
High Dynamic Range (HDR) : Exposure Bracketing 2x, 3x, 5x
Parallax Minimized due to co-axial design

Deflection unit
Field of view (vertical/horizontal): 300° / 360°
Step size (vertical/horizontal) 0.009° (40,960 3D-Pixel on 360°) /
0.009° (40,960 3D-Pixel on 360°)
Max. vertical scan speed 97Hz

Laser (optical transmitter)
Laser class: Laser class 1
Wavelength 1550nm
Beam divergence:  0.3mrad (1/e)
Beam diameter at exit: 2.12mm (1/e)

Data handling and control
Data storage SD, SDHC™, SDXC™; 32GB card
Scanner control:  Via touchscreen display and
WLAN connection. Accsess by
mobile devices with HTML5

Interface Connection
WLAN 802.11n (150Mbit/s), as Access
Point or client in existing networks

Integrated Sensors
Dual axis compensator Performs a leveling of each scan
with an accuracy of 19 arcsec
valid within ±2°
Height sensor: Via an electronic barometer the
height relative to a fixed point
can be detected and added to
a scan.
Compass The electronic compass gives the
scan an orientation
GNSS Integrated GPS & GLONASS

On-site Compensation Creates a current quality report and provides the option to improve the devices compensation automatically
Accessory Bay  The accessory bay is located on top of the laser scanner and is used to connect versatile accessories to the scanner.

GENERAL
Power supply voltage: 19V (external supply)
14.4V (internal battery)
Power consumption 15W idle, 25W scanning,
80W charging
Battery service life: 4.5 hours
Operating temperature:  5° - 40°C
Extended operating temperature 20° - 55°C
Storage temperature: -10° - 60°C
Ingress Protection IP54
Humidity Non-condensing
Weight incl. battery 4.2kg
Size 230 x 183 x 103mm
Maintenance / calibration:  Annual
