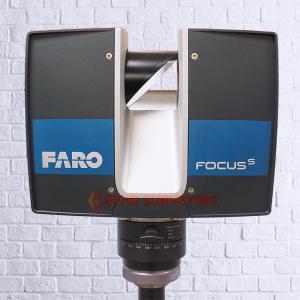

Used Faro Focus S350 3D Laser Scanner

$17500
In Stock

Used Faro Focus S350 for sale, lightly used like new and everything is still in excellent condition, full calibration, re-certification and services by authorized Faro service. Fresh calibration certificate, 1 Year extended Faro warranty

Used Faro Focus S350 3D Laser Scanner description

Used Faro Focus S350 3D laser scanner for sale, lightly used like new in perfect condition, always well taken care of. Used on a single project in the past, the project is wrapped up and the scanner no longer used.

Everything is still in excellent condition, full calibration, re-certification and services by authorized Faro service to enhance its performance and accuracy to meet factory specifications. Fresh 12 months calibration certificate included, 1 Year extended Faro warranty.

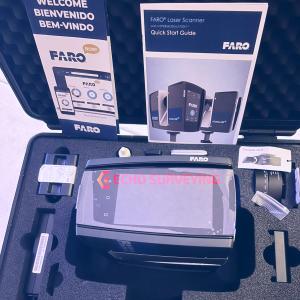

Faro Focus S350 sale includes;

  • Faro Focus S350 Laser Scanner: with HDR Photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, Accessory Bay, IP Rating 54, On-site Compensation Functionality, Calibration Certificate, Quick Start Guide, User's manual,  Rugged Transport Case
  • Battery Power Block, Battery Power Dock, 90W Power Supply
  • Optic Cleaning Fluid, Optic Cleaning Tissues
  • 32GB SD Card, SD Card Reader, SD Card Cover
  • Allen Wrench
  • Faro SCENE software Licence USB stick
  • Tripod

FARO Focus S 350 Laser Scanner

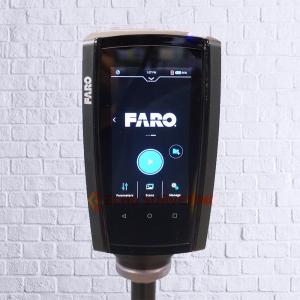

The ultra-portable FARO FocusS 350 enables fast, straightforward, and accurate measurements of objects and buildings by sending out a fully eye-safe Class 1 laser beam. The touch-screen of the FocusS 150 and 350 has been increased in size and clarity and delivers an extraordinary user interface experience. A built-in 8 mega-pixel, HDR-camera makes it even easier to capture great imagery, to provide a natural color overlay in extreme lighting situations to the scan data. The Focus light weight, small size and battery runtime of 4.5 hours per charge makes the scanner truly mobile and enables scanning of accident sites, architectural façades, complex structures, large-volume components, production and supply facilities fast, secure and reliable.

FARO Focus S 350 Laser Scanner, the most complete series bundled with incredible new features including industry standard International Protection (IP) Rating and classified in Class 54 for environmental endurance. Both products will not only be protected from water splashes from all directions, fog or rain, but also from other outdoor elements such as dirt and dust particles that typically occur in extreme scanning conditions.

The Laser Scanner FocusS 350 now include a specified value for angular accuracy. The maximum deviation of the first angle, perpendicular to the second angle, are defined and increase the traceability of the scanning results for all users.

The newly added on-site compensation feature now makes it possible for users to verify the accuracy values of the laser scanner and correct deviations automatically on-site. The FocusS 150 and 350 devices will always be established to scan in the best possible accuracy. By exporting the on-site compensation report, a comprehensive accuracy document can be provided to each scan project.

This 3d laser scanner devices are the most forward-thinking laser scanners on the market. Designed for BIM/CIM, product design and public safety applications, this new line of laser scanners brings together several key features such as an International Protection Rating for scanning in dusty or humid environments, a specified angular accuracy value, an internal accessory bay providing a convenient integration of versatile accessories and an on-site compensation routine.

FARO FOCUS S350 FEATURES

  • ACCURACY : The FocusS now captures environments with increased accuracy regarding distance, dualaxis compensator and angular measurement.
  • TEMPERATURE : Extended temperature range allows scanning in challenging environments
  • ON-SITE COMPENSATION : With the on-site compensation functionality users can verify and adjust the FocusS compensation on-site
  • IP RATING - CLASS 54 : With the sealed design, the FocusS is certifed with the industry standard Ingress Protection (IP) Rating and classifed in class 54 against environmental infuences.
  • HDR PHOTO OVERLAY : The HDR camera captures detailed imagery easily while providing a natural color overlay to the scan data captured under extreme brightness gradients
  • ACCESSORY BAY : With this future-proof interface users can connect additional accessories to the scanner, which offers an option for user specifc customization.

PERFOMANCE SPESIFICATIONS

Ranging Unit
Unambiguity interval 614m for 122 to 488 kpts/s
307m for 976 kpts/s



Reflectivity 90% (white) 10% (dark-gray) 2% (black)
Range1 (150 m 0.6-150 m 0.6-150 m 0.6-50 m
Range1 (350 m) 0.6-350 m 0.6-150 m 0.6 m-50 m



Ranging
Noise2
@10m @10m - noi @25m @25m - noise
reduction3
90% reflectivity 0.3mm 0.15mm 0.33mm 0.15mm
10% reflectivity 0.4mm 0.2mm 0.5mm 0.25mm
2% reflectivity 1.3mm 0.65mm 2mm 1mm



Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000
Ranging error4: ±1mm
Angular accuracy5 19 arcsec for vertical/horizontal angles
3D position accuracy6 10m: 2mm / 25m: 3.5mm
Color Unit
Resolution: Up to 165 megapixel color
High Dynamic Range (HDR): Exposure Bracketing 2x, 3x, 5x
Parallax: Minimized due to co-axial design
Deflection Unit
Field of view (vertical7/horizontal): 300° / 360°
Step size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) /
0.009° (40,960 3D-Pixel on 360°)
Max. vertical scan speed: 97Hz
Laser (Optical Transmitter)
Laser class: Laser class 1
Wavelength: 1550nm
Beam divergence: 0.3mrad (1/e)
Beam diameter at exit:: 2.12mm (1/e)
Data Handling and Control
Data storage: SD™, SDHC™, SDXC™; 32GB card
Scanner control: Via touchscreen display and WLAN connection. Access by mobile devices with HTML5
Interface Connection
WLAN: 802.11n (150Mbit/s), as Access Point or client in existing networks
Integrated Sensors
Dual axis compensator: Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2°
Height sensor: Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan.
Compass8: The electronic compass gives the scan an orientation
GNSS: Integrated GPS & GLONASS
On-site Compensation Creates a current quality report and provides the option to improve the device's compensation automatically.
Accessory Bay The accessory bay is located on top of the laser scanner and is used to connect versatile accessories to the scanner.



General
Power supply voltage: 19V (external supply) 14.4V (internal battery)
Power consumption: 15W idle, 25W scanning, 80W charging
Battery service life: 4.5 hours
Operating temperature: 5° - 40°C
Extended operating temperature9 -20° - 55°C
Storage temperature: -10° - 60°C
Ingress Protection: IP54
Humidity Non-condensing
Weight incl. battery: 4.2kg
Size: 230 x 183 x 103mm
Maintenance / calibration: Annual
