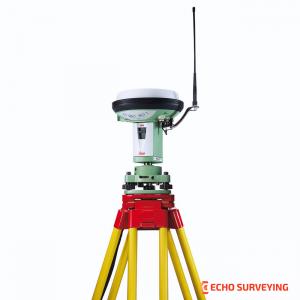

  • Leica-Viva-GS15-GNSS-RTK-Rover-Sale

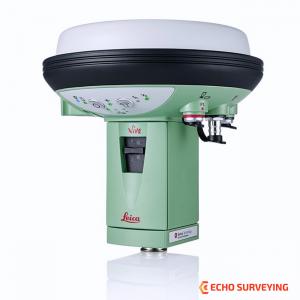

  • Leica-Viva-GS15-GNSS-RTK-Rover

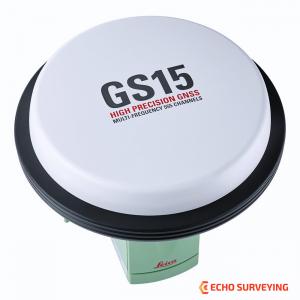

  • Leica-Viva-GS15-GNSS-RTK-Rover-Price

Leica Viva GS15 GNSS RTK Rover

$9000

Leica Viva GS15 GNSS RTK Rover for sale, L1/L2, L5, Glonass, Galileo, RINEX Logging, Leica Captivate CS20 with integrated GSM modem and total station radio

Leica Viva GS15 GNSS RTK Rover description

Leica Viva GS15 GNSS RTK Rover for sale, L1/L2, L5, Glonass, Galileo, RINEX Logging, Leica Captivate CS20 with integrated GSM modem and total station radio

Leica Viva GS15 GNSS RTK Rover sale includes:

  • Leica GS15 3.5G Performance GNSS SmartAntenna
  • LOP29 GLONASS Option - Enables GLONASS Tracking
  • Leica CS20 with Captivate Software, 3.5G GSM Modem, and TS Radio
  • 1x CBC01 Lemo Connector Module with Power Jack
  • 1x GKL341 Multi-bay Battery Charger
  • 1x MMSD01 Industrial Grade microSD Memory Card 1GB
  • 4x GEB212 Battery
  • 1x GLS30 GNSS Telescopic Pole
  • 1xGHT62 Pole Holder Base Plate
  • 1x GHT63 Clamp Arrangement
  • 1x GVP708 Hard Container
  • 1-year Viva GNSS (GS10/14/15/25+CS+SW) Basic CCP

Leica Viva GS15 – Versatility at its best

From completely integrated to totally modular, the Leica Viva GS15 offers you the flexibility to choose which wireless communication device best meets your needs now and in the future. These devices are supported by intenna technology - a fully-integrated antenna concept. This smart antenna adjusts to any environment and delivers the most accurate results.

Eliminate downtime and work as you want with the ability to switch out batteries without powering down. Providing twice the operation time, the Leica Viva GS15’s dual battery option, integrated antenna and exchangeable communication devices are the best elements for a completely versatile GNSS system.

Leica GS15 Proven GNSS technology, built on years of knowledge and experience, the Leica GS15 deliver the hallmarks of Leica GNSS – reliability and accuracy.

  • SmartCheck – RTK data-processing to guarantee correct results
  • SmartTrack – advanced four constellation tracking of all GNSS satellites today and tomorrow
  • SmartRTK – delivers consistent results in all networks

The Leica GS15 is designed to suit any surveying task

  • Exchangeable communication devices for field base stations and RTK rovers with removable SIM cards (Built-in for GS15)
  • Fully scalable sensor allows you to buy only what you need today and upgrade with additional functionality as you need it
  • Integrated web server to configure the logging of Leica or RINEX raw data and measure with one button press in the field

Rugged

The Leica GS15 is built for the most demanding environments

  • IP67 protection against dust and immersion to 1m
  • Built for extreme temperatures of -40°C to +65°C
  • Integrated antenna technology to avoid breaking, losing or forgetting antenna (for GS15)

Features

  • IP67 Protection
  • 1.34kg Weight (GS15)
  • -40 to +65° Operating Temperature
  • Integrated Web Interface
  • LED Indicator
  • Bluetooth Communication

Engaging software

The Leica Viva GS15 GNSS smart antenna is accompanied with the revolutionary Captivate software, turning complex data into the most
realistic and workable 3D models. With easy-to-use apps and familiar touch technology, all forms of measured and design data can be viewed in all dimensions. Leica Captivate spans industries and applications with little more than a simple swipe, regardless of whether you work with GNSS, total stations or both.

Seamlessly share data among all your instruments

Leica Geo Office imports and combines data from your GNSS, total station and level instruments for one final and accurate result. Processing has never been made easier when all your instruments work in tandem to produce precise and actionable information

Customer care is only a click away

Through Active Customer Care (ACC), a global network of experienced professionals is only a click away to expertly guide you through any problem. Eliminate delays with superior technical service, finish jobs faster with excellent consultancy support, and avoid costly site revisits with online service to send and receive data directly from the field. Control your costs with a tailored Customer Care Package, giving you peace of mind you’re covered anywhere, anytime.

Leica Viva GS15 Specifications:

Weight & Dimensions
Weight (GS15) 1.34 kg
Weight 3.30 kg standard RTK rover including slot RTK device, controller, batteries pole and bracket
Dimension (GS15) (diameter x height) 196 mm x 198 mm
Environmental specifications
Temperature, operating –40° C to +65° C, compliance with ISO9022-10-08, ISO9022-11-special, MIL STD 810F – 502.4-II, MIL STD 810F – 501.4-II
Temperature, storage –40° C to +80° C, compliance with ISO9022-10-08, ISO9022-11-special, MIL STD 810F – 502.4-II, MIL STD 810F – 501.4-II
Humidity 100%, compliance with ISO9022-13-06, ISO9022-12-04 and MIL STD 810F – 507.4-I
Proof against: water, sand and dust IP68 according IEC60529 and MIL STD 810F – 506.4-I, MIL STD 810F – 510.4-I and MIL STD 810F – 512.4-I
Protected against blowing rain and dust
Protected against temporary submersion into water (max. depth 1,4 m)
Vibration Withstands strong vibration during operating, compliance with ISO9022-36-08 and MIL STD 810F – 514.5-Cat.24
Drops Withstands 1.0 m drop onto hard surfaces
Functional shock 40 g / 15 to 23 msec, compliance with MIL STD 810F – 516.5-I No loss of lock to satellite signal when used on a pole set-up and submitted to pole bumps up to 150 mm
Topple over Withstands topple over from a 2 m survey pole onto hard surfaces
Power & Electrical
Supply voltage Nominal 12 V DC
Range 10.5 – 28 V DC
Power consumption Typically: 3.2 W, 270 mA
Internal power supply Recharge & removable LI-Ion battery, 2.6 Ah / 7.4 V, 2 batteries fit into receiver
Internal power supply, operation time • 10.00 h receiving RTK data with standard radio
• 9.00 h transmitting RTK data with standard radio
• 7.50 h RTK via GSM/GPRS connection using 2 internal batteries
External power supply Rechargeable external NiMh battery 9 Ah / 12 V
Certifications Compliance to: FCC, CE Local approvals (as IC Canada, C-Tick Australia, Japan, China)
Memory
Memory medium Removable SD Card: 1 GB
Data capacity 1 GB is typically sufficient for about GPS & GLONASS (8+4 satellites) 280 days raw data logging at 15 s rate
Data recording
Type of data Onboard recording of:
• Leica GNSS raw data
• RINEX data
Recording rate Up to 20 Hz
Buttons • ON / OFF button
• Function button
Button functionality Function button:
• Easy switch between Rover / Base mode
• Easy “Here” positioning functionality
Led status indicator Bluetooth®, position, RTK status, data logging, detailed power status
Additional user interface Additional web interface functionality provides full status indicator and configuration options
Communications
Communication ports 1 x serial RS232 Lemo
1 x USB / RS232 Lemo
1 x UART serial & USB (for removable internal RTK devices)
1 x Bluetooth® port, Bluetooth® v2.00+ EDR, class 2
No. of simultaneous data links • Up to 3 data links can be attached and used simultaneously
• 2 real-time output interfaces via independent ports, providing identical or different RTK/ RTCM formats
Built In data links
Radio modems • Fully integrated, fully sealed receive / transmit radios
• User exchangeable device
• SATEL, Pacific Crest and others
• 390 – 470 MHz bandwidth
• Transmit power: 0.5 – 1.0 W
Radio modems • Fully integrated, fully sealed receive / transmit radios
• User exchangeable device
• SATEL, Pacific Crest and others
• 390 – 470 MHz bandwidth
• Transmit power: 0.5 – 1.0 W
UHF antenna options • Fully integrated UHF antenna
• External UHF antenna connector (Type QN)
3G GSM / UMTS(HSDPA) phone modem • Fully integrated, fully sealed phone modem
• User exchangeable device
• User exchangeable SIM card
• Tri-Band UMTS / HSDPA: 850 / 1900 / 2100 MHz
• Quad-Band GSM / GPRS: 850 / 900 / 1800 / 1900 MHz
CDMA phone modem • Fully integrated, fully sealed CDMA phone modem
• User exchangeable device
• Dual-Band CDMA 1XRTT (800 / 1900 MHz)
GSM / UMTS / CDMA antenna options • Integrated GSM / UMTS / CDMA antenna
• External GSM / UMTS / CDMA antenna connector (Type QN)
External data links
Radio modems Support of any suitable UHF / VHF radio
GSM / UMTS / CDMA phone modems Support of any suitable GSM / GPRS / UMTS / CDMA modem
Landline phone modems Support of any suitable Landline phone modem
