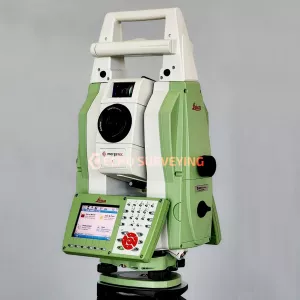

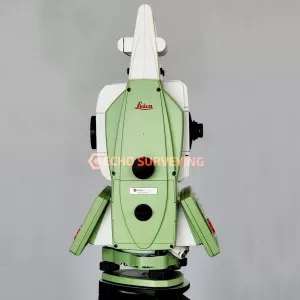

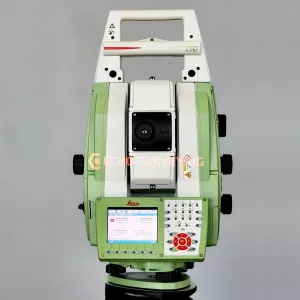

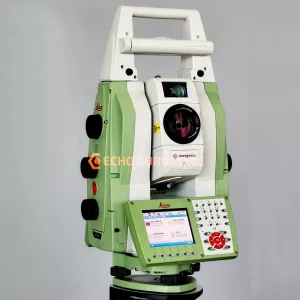

Leica MS50 1” MultiStation for sale with CS15 Collector, looks almost new in perfect condition, both touchscreens work, has an RH16 handle for LRBT robotic communication

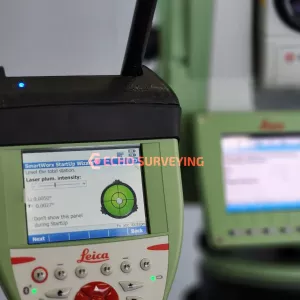

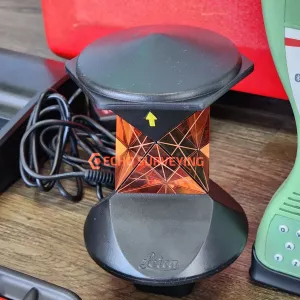

Up for sale Leica MS50 1” R2000 CS15 MultiStation, the robot is in perfect working order condition, fully shop tested, service and precisely calibrated by Leica authorized. Both touchscreens work and the unit has an RH16 handle for LRBT robotic communication. The Leica CS15 looks brand new and has Smartworx 5.xx installed. The CTR16 radio cap communicates with the MS50. The Prism is also in excellent condition!

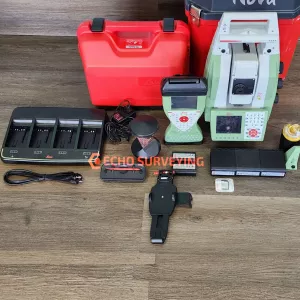

Package includes:
LEICA NOVA MS50 THE NEW DIMENSION IN MEASURING TECHNOLOGY
Leica Nova MS50 embodies 90 years of innovative thinking of Leica Geosystems to develop precise, reliable and flexible technologies. The Leica MS50 is part of the Leica Nova solution which contains:
Faster, Better, Smarter, Simpler. These key words describe the benefits of Leica Nova; a unique solution that covers the complete process from capturing and visualising data, taking decisions and delivering.
The Leica Nova MS50 includes precise 3D laser scanning, extensive and precise total station capabilities, digital imagery and GNSS connectivity. Thanks to mergeTEC, the Leica Nova MS50 not only combines the hardware but also merges the data itself; images are synchronised with 3D laser scans and the scans tied into total station measurements.
The Leica Nova MS50 allows the user to decide on-site which measurement technology to use to fulfil his mea- surement tasks. The results are available directly in the field, for example the volume of a stockpile derived from point clouds which have been scanned with the Leica Nova MS50.
LEICA NOVA MS50 – THE WORLD’S FIRST MULTISTATION
The Leica Nova MS50 is the world’s first MultiStation and features outstanding precision, accuracy, efficiency, quality and versatility. The MS50 provides an angular accuracy of 1” (according to ISO 17123-3) and a new optical-distance measurement system (EDM) based onwave form digitizing technology. The EDM measurement accuracy is 1 mm + 1.5 ppm onto prism (according to ISO 17123-4) and 2 mm + 2 ppm for measurements onto any surface.
| angular accuracy (according to ISO-17123-3) | 1” Hz and V |
| distance measurement accuracy onto GPR1 prism1 (according to ISO-17123-4) | 1 mm + 1.5 ppm |
| distance measurement accuracy onto any surface2 (according to ISO-17123-4) | 2 mm + 2 ppm |
| distance measurement range1 onto prism | 1.5 m up to 10,000 m |
| distance measurement range onto any surface2 | 1.5 m up to 2,000 m |
The new PinPoint R2000 EDM measures distances to any surfaces up to 2,000 m and distances up to at least 10,000 m onto a single prism. The new EDM not only enables extended measurement range onto any surface, but also significantly reduces measurement time. Onto prisms, the distance measurement time is reduced by around 50 % which has a time saving impacting the overall measurement time.
To withstand harsh conditions, the Leica Nova MS50 MultiStation fulfils IP65 standard and the MIL standard blowing rain test
The mechanical design of the MultiStation has been developed for highest protection against environmental conditions. The Leica Nova MS50 fulfils IP65 standards and withstands the MIL standard blowing rain test. This is the highest protection for any robotic total station currently available.
The MultiStation emphasizes high-dynamic automation with its best-in-class speed and acceleration capabilities. Furthermore, PowerSearch functionality supports the Leica Nova MS50 to find the target points quickly and efficiently. A combined USB – RS232 interface at the non rotating part of the MultiStation as well as Bluetooth and WLAN ensure fast data transfer. A long-range Bluetooth radio handle can be connected to the MultiStation and ensures remote working ranges up to 1,000 m
For fast and flexible data transfer, the Leica Nova MS50 MultiStation features WLAN, USB, RS232 and Bluetooth interfaces. The Leica Nova MS50 offers enhanced imaging functionality by implementing two cameras: the overview and the telescope camera. Both cameras deliver 5 megapixel resolution images for accurate image assisted surveying and high quality documentation.
The overview camera is located in the upper part of the telescope, while the telescope camera is located in line with the optical axis and has the full 30 x magnification of the telescope optics.
The live video stream, which is provided with up to 20 frames per second on the display, can easily be switched between overview camera and telescope camera Autofocus functionality increases the measurement efficiency and reduces the fatigue of the operator’s eyes.
A unique functionality of the Leica Nova MS50 is 3D laser scanning. The scanning functionality is seamlessly integrated into the standard workflow of a total station. This allows the 3D laser scans to always be in the current coordinate system of the MultiStation. Known setup routines (e.g. set azimuth, known backsight, resection) are used and the point clouds are automatically registered directly in the field. The onboard 3D scan viewer allows the user to verify and check the point clouds for completeness directly in the field. Scan shadows can be identified on site which minimizes the necessity for costly returns for re-measuring. Surfaces and volumes can be calculated with the QuickVolume application. Additional single measurements from the setup complete the data.
LEICA NOVA MS50 MULTISTATION TECHNICAL SPECIFICATIONS
| Angle Measurement | ||
| Accuracy 1 Hz and V | Absolute, continuous, quadruple | 1” (0.3 mgon) |
| Distance measurement | ||
| Range | Prism (GPR1, GPH1P) Non-Prism / Any surface |
1.5 m to >10000 m 1.5 m to 2000 m |
| Accuracy / Measurement time | Single (prism) Single (Any surface) |
mm + 1.5 ppm / typ. 1.5 s 2 mm + 2 ppm / typ. 1.5 s |
| Laser dot size | at 50 m | 8 mm x 20 mm |
| Measurement technology | ||
| Scanning | ||
| Max. Range 7 / Range noise (1 sigma) 4 |
1000 Hz mode 250 Hz mode 62 Hz mode 1 Hz mode |
300 m / 1.0 mm at 50 m 400 m / 0.8 mm at 50 m 500 m / 0.6 mm at 50 m 1000 m / 0.6 mm at 50 m |
| Visualisation of point cloud | Onboard 3D point cloud viewer, including true colour point clouds | |
| Imaging | ||
| Overview and telescope camera | Sensor Field of view (overview / telescope) Frame rate |
5 Mpixel CMOS sensor 19.4° / 1.5° Up to 20 frames per second |
| Motorisation | ||
| Direct drives based on Piezo technology | Rotation speed / Time to Change Face | max. 200 gon (180°) per s / typ. 2.9 s |
| Automatic Aimin g (ATR ) | ||
| Range ATR mode 2 / Lock mode | Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) |
1000 m / 800 m 800 m / 600 m |
| Accuracy / Measurement time | ATR angle accuracy Hz, V | 1” (0.3 mgon) / typ. 2.5 s |
| PowerSearch | ||
| Range / Search time | 360° prism (GRZ4, GRZ122) | 300 m / typ. 5 s |
| Guide Light (EG L) | ||
| Working Range / Accuracy | 5 –150 m / typ. 5 cm @ 100 m | |
| General | ||
| Autofocus telescope | Magnification / Focus Range | 30 x / 1.7 m to infinity |
| Display and Keyboard | VGA, colour, touch, both faces | 36 keys, illumination |
| Operation | 3x endless drives, 1x Servofocus drive, 2x Autofocus keys, User-definable SmartKey | |
| Power management | Exchangeable Lithium-Ion battery with internal charging capability | Operating Time 7–9 h |
| Data storage | Internal memory / Memory card | 1 GB / SD card 1 GB or 8 GB |
| Interfaces | RS232, USB, Bluetooth®, WLAN | |
| Weight | MultiStation incl. battery | 7.6 kg |
| Environmental specifications | Working temperature range Dust & Water (IEC 60529) / Blowing rain Humidity |
–20°C to + 50°C IP65/MIL-STD-810G, Method 506.5-I 95%, non-condensing |
