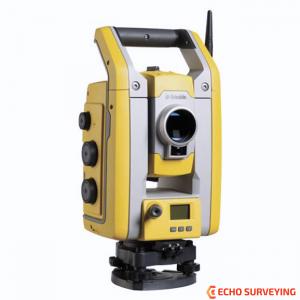

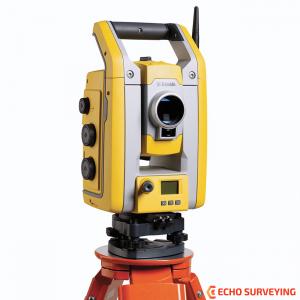

Trimble S5 1" Robotic Total Station

$12500

Trimble S5 1” for sale, Robotic DR Plus, Active Total Station, 1” Angular Accuracy, DR PLUS EDM Technology, New 2 Year Warranty

Trimble S5 1" Robotic Total Station description

Trimble S5 1” for sale, Trimble S5 Robotic DR Plus, Active Total Station, 1” Angular Accuracy, DR PLUS EDM Technology, New 2 Year Warranty

TRIMBLE S5 TOTAL STATIONS

Operate remotely at any jobsite, Built on proven Trimble technologies, including Trimble® MagDrive™, SurePoint™, and the DR Plus EDM, the Trimble S5 robotic total station is efficient and dependable while maintaining high accuracy.

Trimble S5 Robotic Total Station, Count on the Trimble S5 total station to make your job easier, day after day, project after project.

1”, 2”, 3”, or 5” Angular Accuracy
DR PLUS EDM Technology
1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR EDM Accuracy

Built on proven Trimble technologies including Trimble SurePoint and MagDrive technology, and our DR Plus EDM this is the no nonsense workhorse that works efficiently and dependably while maintaining the highest possible accuracy.

Everything you need to perform survey campaigns
Measure further and faster with the Trimble DR Plus EDM
Complete field-to-office solution for quick data capture and processing
Seamless integrated surveying with the Trimble GNSS receivers

FEATURES AND CAPABILITIES

Ultimate solo working: Only needing one operator, you can get more out of your time. Add Active Tracking technology to reliably track your prism in the most challenging environments.
Built with Trimble MagDrive: Turn-to points with lightning-fast speeds, rotating at 115 degrees per second with precision Trimble MagDrive™ technology.
Add Trimble Sentinel: Add our optional device tracking software to keep tabs on your S5 total station and know where it is all day, every day.
Process data with Trimble: Choose a Trimble controller with Trimble Access™ field software for site-based workflows. In the office, leverage Trimble Business Center office software to complete deliverables.

Trimble S Series Robotic Total Stations Comparation

	Trimble SX10	Trimble S9 HP	Trimble S9	Trimble S7	Trimble S5
Angular Accuracy	1”	0.5” or 1”	0.5” or 1”	1”, 2”, 3”, or 5”	1”, 2”, 3”, or 5”
EDM Technology	Lightning 3DM	DR HP	DR PLUS	DR PLUS	DR PLUS
EDM Accuracy	1 mm + 1.5 ppm Prism / 2.0 mm + 1.5 DR	0.8 mm + 1 ppm (Prism) /3.0 mm + 2 ppm (DR)	1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR)	1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR	1.0 mm + 2 ppm Prism / 2.0 mm + 2 ppm DR
Servo	Robotic	Robotic or Autolock	Robotic or Autolock	Robotic or Autolock	Robotic or Autolock
Maximum Distance Range	5,500 m	7,000 m	5,500 m	5,500 m DR Plus	5,500 m
Additional Features	Scanning & enhanced VISION	Long Range FineLock, VISION or Tracklight	Long Range FineLock, VISION or Tracklight	VISION	Tracklight
Scanning Speed	26,000 points per second	--	15 points per second (DR Plus VISION only)	15 points per second	--
Scanning Range	600 m	--	--	250 m	--
Laser Class and Ingress Protection	Laser Class 1M & IP55	Laser Class 2 & IP 65	Laser Class 2 & IP 65	Laser Class 2 & IP 65	Laser Class 2 & IP 65
