Leica iCG60 Base Rover SmartAntenna Receiver Kit

$4500
In Stock

Leica iCG60 Base Rover SmartAntenna Receiver Kit, all gears is in great working condition, ready to working to survey condition, completed serviced and calibrated by Leica authorized

Leica iCG60 Base Rover SmartAntenna Receiver Kit description

Leica iCG60 Base Rover SmartAntenna Receiver Kit, all gears is in great working condition, ready to working to survey condition, completed serviced and calibrated by Leica authorized

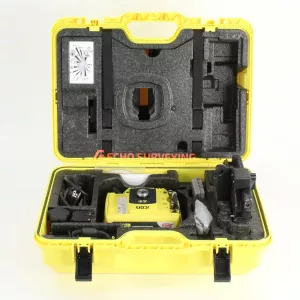

Includes:

Leica iCG60 Base/Rover Kit

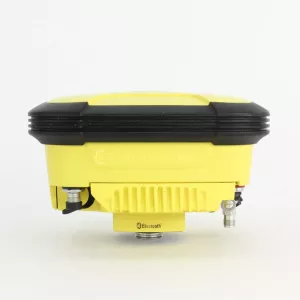

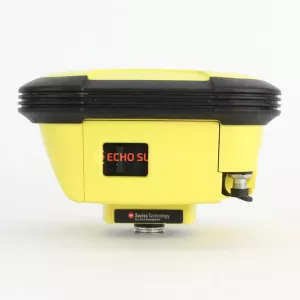

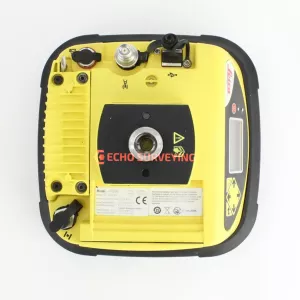

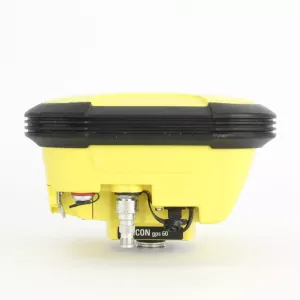

  • 1X Leica iCON GPS 60 Performance Plus SmartAntenna Receiver
  • Internal Satel M3-TR1 Radio
  • UHF 403-473 MHz Rx/Tx Radio
  • 1X Leica GKL311 Single Bay Charger
  • 1X Leica GAT2 Gainflex Radio Antenna
  • 2X Leica Lithium-Ion GEB222 Battery
  • 1X Leica GAD108 Extension Arm
  • 1X Leica Transport Case

Panasonic Toughpad Rugged CC80 7” Tablet

  • iCON Software Version 3.5.1
  • 7” Tablet Holder Pole Clamp
  • 2X Panasonic Extended Rechargeable Battery Packs
  • 1X Tablet Wall Charger

Leica iCON iCG60 Smart Antenna

Leica iCON gps 60 is a versatile SmartAntenna for all construction positioning tasks. Featuring superior GNSS technology and various integrated communication options, it meets all your requirements for reliable and accurate measurements. Its intuitive display shows full status information of the instrument, simplifying operation and configuration. Leica iCON gps 60 also offers exceptional network capabilities allowing you to use RTK network services (Leica SmartNet and other networks) for highly reliable, improved GPS positions.

  • Superior GNSS Technology for maximum accuracy and reliability. Features Leica SmartTrack+ and SmartCheck+ and Leica xRTK.
  • Future-proof satellite tracking. Works with all existing and future satellite systems.
  • SmartLink – bridges RTK communication gaps up to 10 minutes.
  • Multi-purpose GPS solution. Can be used as construction site GNSS Base, Rover or NetRover, in supervisor vehicle on site and entry level machine control mounted inside a machine to increase machine productivity
  • Unique communication flexibility, featuring integrated radio, modem and Bluetooth®
  • System integration made easy through use of platform independent SDK (Software Development Kit) bringing swift configuration to all Integrated NTRIP Server and Caster for Internet based Reference Station.
  • No controller required for base station set-up means you need less hardware.
  • Unique flexible software licencing and feature upgrade concept. You can order packages or individual licences when you need them, investing when you need to.

Leica iCON gps 60 – designed for challenging conditions

All-purpose GNSS solution: Stream corrections over the internet without radio and easily and quickly perform many positioning tasks yourself. Check grade or cut & fill, stakeout points and lines, and as built checks. Save time and increase productivity by monitoring the grade from your supervisor vehicle on site.

Flexibility on site: With the iCON gps 60, you can also benefit from using it as a flexible entry level GNSS smart antenna for machine control applications. It can be mounted inside a construction machine and used for off machine applications. Integrated radio, modem and Bluetooth® provide flexible communication options for corrections tailored to all sites and regions – simply swap equipment between base and rover as required.

Maximum accuracy and reliability: Superior GNSS technology provides maximum accuracy and reliability, featuring:

  • SmartTrack+
  • SmartCheck+
  • xRTK

Leica iCON gps 60 features:

  • Flexibility that allows multiple use cases; rover, base station and on-machine for machine guidance applications
  • Integrated high-speed 4G modem provides excellent network performance
  • No controller required for base station set-up, meaning you need less hardware
  • Stream corrections over the internet using NTRIP technology enables all construction rovers and machines to connect an iCON gps 60 base station without radio, removing radio coverage limitations and reducing the initial hardware investment
  • Unique flexible software licensing and feature upgrade concept - you invest in what you need

Specifications:

GNSS PERFORMANCE
GNSS technology Leica patented SmartTrack+ technology:
• Advanced measurement engine
• Jamming resistant measurements
• High precision pulse aperture multipath correlator for pseudorange measurements
• Minimum acquisition time
Number of channels 555 channels
Maximum simultaneous tracked satellites Up to 60 satellites simultaneously on two frequencies
Satellite signals tracking • GPS: L1, L2, L2C, L5
• GLONASS: L1, L2
• Galileo (Test): GIOVE-A, GIOVE-B
• Galileo: E1, E5a, E5b, Alt-BOC
• BeiDou B1, B2
GNSS measurements Fully independent code and phase measurements of all frequencies:
• GPS: carrier phase full wave length, Code (C/A, P, C Code)
• GLONASS: carrier phase full wave length, Code (C/A, P narrow Code)
• Galileo: carrier phase full wave length, Code
• BeiDou: carrier phase full wave length, Code
Reacquisition time < 1 sec
GNSS ANTENNA
GNSS antenna options • Fully integrated GNSS antenna
• External GNSS antenna connector (Type TNC)
External GNSS antenna options • CGA60: GPS L1/L2/L5, GLONASS L1/L2, Galileo E1, E5a, E5b, Alt-BOC, BeiDou B1, B2
MEASUREMENT PERFORMANCE & ACCURACY
Accuracy (rms) with real-time (RTK) Single baseline (< 30km): Horizontal: 8 mm + 1 ppm (rms), Vertical: 15 mm + 1 ppm (rms)
Accuracy (rms) with post processing Static (phase) with long observations: Horizontal: 3 mm + 0.5 ppm (rms), Vertical: 3.5 mm + 0.5 ppm (rms)
Static and rapid static (phase): Horizontal: 3 mm + 1 ppm (rms), Vertical: 5 mm + 1 ppm (rms)
On-the-fly (OTF) initialisation RTK technology: Leica SmartCheck+ technology
Reliability of OTF initialisation: Better than 99,99%
Time for initalisation: Typically 4 sec
Network RTK Network technology: Leica SmartRTK technology
Supported RTK network solutions: iMAX, VRS, FKP
Supported RTK network standards: MAC (Master Auxiliary Concept) approved by RTCM SC 104
HARDWARE
Weight & Dimensions Weight (iCG60): 1450 g (3.19 lb)
Weight: 3200g (7,05 lb) Standard RTK Network Rover, incl. iCG60, CC80 Controller with Bracket, Pole, Battery
Dimensions: 197 mm x 197 mm x 130 mm (7,76 in x 7,76 in x 5,12 in)
Environmental specifications Operating temperature: –40°C to +60°C (–40°F to +140 °F)
Storage temperature: –40°C to +85°C (–40°F to +185°F)
Humidity: 100%, compliance with ISO9022-12-04 and MIL STD 810F – 507.4-I
Proof against: water, sand and dust: IP67 according IEC60529 and MIL STD 810F – 506.4-I, MIL STD 810F – 510.4-I and MIL STD 810F – 512.4-I, Protected against blowing rain and dust, Protected against temporary submersion into water (max. depth 1 m)
Vibration: MIL-STD-810F, Figure 514.5C-3
Shock: 40g - 6msec; compliance ISO 9022-31-06, No loss of lock to satellite signal when used on a pole set-up and submitted to pole bumps up to 150 mm
Drops: Withstands 1.2 m drop onto hard surfaces
Topple over: Withstands topple over from a 2m pole onto hard surfaces
Power & Electrical Supply voltage: Nominal 24 V DC, Range 9.0 – 28 V DC
Power consumption: Typically 6 W
Internal power supply: 1x recharge & removable LI-Ion battery, 2.6 Ah, 4.4 Ah or 6.0 Ah / 7.4 V, fit into receiver
Internal power supply, operation time: • 5:20 h receiving RTK data with standard radio 3) • 4:40 h transmitting RTK data with standard radio 3) • 5:00 h RTK via built-in HSPA connection 3)
External power supply: Rechargeable external NiMh battery 9 Ah / 12 V; with voltage peak protection, Fullfils EN13309
Certifications: Compliance to: FCC/IC Class B, CE, EN13309, RCM, ARIB STD-T66, RoHS, WEEE, ACPEIP
MEMORY & DATA RECORDING
Memory Internal memory: Built-in memory, 466 MB
Data capacity: 466 MB is typically sufficient for about GPS & GLONASS (8+4 satellites) 3’100 h raw data logging at 15 s rate
Data recording Type of data: Onboard recording of RINEX data
Recording rate: Up to 20 Hz
INTERFACE
Buttons • ON / OFF button • 6 function buttons (arrow keys – up/down/left/right, Enter, Esc)
Display High resolution, 1.8” gray scale display with adjustable backlight: • Provides full receiver status on main screen (position, satellite, radio, modem, battery, Bluetooth®, telematics, memory) • Several submenues for additional details • Various configurations in submenues, e.g. radio channel • Start Base Station with ”Here” or type in coordinate • Start and configure raw data logging
LED status indicator 1 × LED for detailed power status
Additional functionality BasePilot functionality (stores up to different 100 base station locations and configurations for quick daily start up without user interaction)
COMMUNICATION
Communication ports 1x serial RS232 Lemo, PWR in, 12V PWR out
1x USB Host
1x UART serial & USB (for removable internal RTK devices)
1x TNC for external GNSS Antenna
1x Bluetooth® port, Bluetooth® v2.00+ EDR, class 2
Number of simultaneous data links Up to 3 real-time output interfaces via independent ports, providing identical or different RTK/RTCM formats
Built In data links Radio modems: • Optional additional fully integrated, fully sealed receive / transmit radios • User exchangeable device • SATEL M3 TR4: 403 – 470 MHz; up to 1.0 W output power; Pac-crest 4FSK; GMSK & FST; Trimble T & P; Satel 3AS, 8FSK & 16FSK modulation • Intuicom; 902–928 MHz (license free in North America); up to 1.0 W output power
Radio modem antenna: External antenna connector (Type QN)
4G LTE / 3G DC-HSPA+ / HSPA+ / HSPA / UMTS (WCDMA): • Built-in cellular modem as default • User exchangeable SIM card • 5-Band LTE: Band 1, 3, 7, 8, 20 • 6-Band DC-HSPA+ / HSPA+ / HSPA / UMTS (WCDMA): Band 1, 2, 3, 4, 5, 8 • Up to 100 mbps downlink speed
4G LTE / 3G HSPA / UMTS / GSM cellular modem antenna: Integrated GSM / UMTS / HSPA / LTE antenna
External data links Radio modems: • Support of any suitable serial RS232 UHF / VHF radios
Communication protocols Real-time data formats for data transmission: Leica, Leica 4G, CMR, RTCM 3.1, RTCM 3.2 MSM 3 & 5
Real-time data formats for data reception: Leica, Leica 4G, Leica Lite, CMR, CMR+, RTCM v2.3, RTCM 3.1, RTCM 3.2 MSMx 3 & 5
Web based protocol: NTRIP: receive network corrections; built-in NTRIP Server and Caster to stream local corrections to multiple RTK rovers
